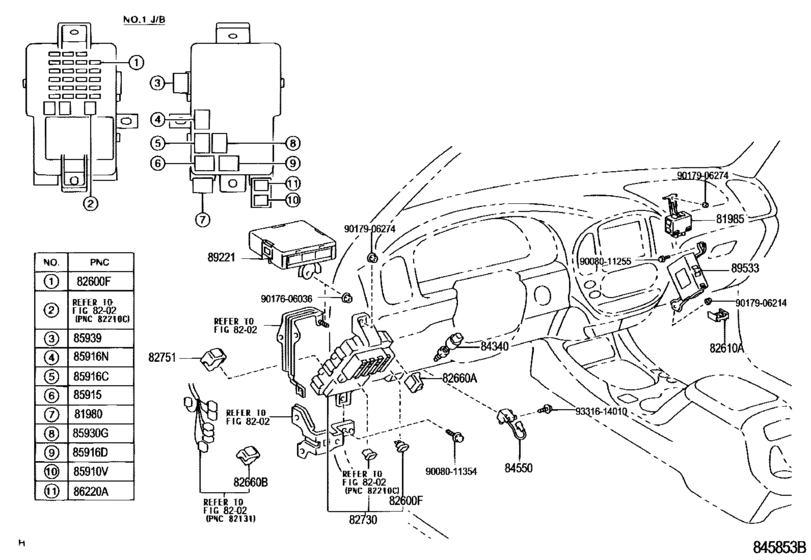

Switch & Relay & Computer ([10.2003 - 08.2004] COWL (0310-0408)UCK31,41) Diagram Toyota TUNDRA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- SR5
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 10.2003
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-34020 Flasher Assy, Turn SignalTURN SIGNAL [10.2003 - 08.2004] UCK31,41 |
81980-34020 |
US $101.92 |
||
|
81985
|
81985
81985-0C031
Relay, Towing Converter
[10.2003 - 08.2004] UCK3#,4#,VCK30,40 |
81985-0C031 |
— | ||
|
82600F
|
82600F
90080-82020 Instrument Panel Fuse[08.2002 - 08.2004] UCK3#,4#,VCK30,40 7.5A,MINI FUSE |
90080-82020 |
US $1.75 |
||
|
82600F
|
82600F
90080-82021 Instrument Panel Fuse[08.2002 - 08.2004] UCK3#,4#,VCK30,40 10A,MINI FUSE |
90080-82021 |
US $1.46 |
||
|
82600F
|
82600F
90080-82022 Instrument Panel Fuse[10.2003 - 08.2004] UCK31,41 15A,MINI FUSE |
90080-82022 |
US $1.75 |
||
|
82600F
|
82600F
90080-82023 Instrument Panel Fuse[10.2003 - 08.2004] UCK31,41 20A,MINI FUSE |
90080-82023 |
US $1.46 |
||
|
82600F
|
82600F
90080-82024 Fusible Link[08.2002 - 08.2004] UCK3#,4#,VCK30,40 30A,MINI FUSE |
90080-82024 |
US $1.60 |
||
|
82600F
|
82600F
90080-82033
Fuse, Fuse Block
[10.2003 - 08.2004] UCK31,41 25A,MINI FUSE |
90080-82033 |
— | ||
|
82610A
|
82610A
82610-20080 Block Assy, Fuse[10.2003 - 08.2004] UCK31,41 |
82610-20080 |
US $4.37 |
||
|
82660A
|
82660A
82660-20340 Block Assy, Relay, Engine Room[08.2002 - 08.2004] UCK3#,4#,VCK30,40..4HC |
82660-20340 |
US $5.59 |
||
|
82660B
|
82660B
82660-53010 Block Assy, Relay[08.2002 - 08.2004] UCK3#,4# |
82660-53010 |
US $6.41 |
||
|
82730
|
82730
82730-0C031
Block Assy, Instrument Panel Junction
[10.2003 - 08.2004] UCK31,41 |
82730-0C031 |
— | ||
|
82751
|
82751
82751-0C020
Block, Driver Side Relay
[10.2003 - 08.2004] UCK31,41 |
82751-0C020 |
— | ||
|
84340
|
84340
84340-34010
Switch Assy, Stop Lamp
[10.2003 - 08.2004] UCK31,41 |
84340-34010 |
— | ||
|
84550
|
84550
84550-34030 Switch Assy, Parking BrakePARKING BRAKE [10.2003 - 08.2004] UCK31,41 |
84550-34030 |
US $60.57 |
||
|
85915
|
85915
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 |
90084-98031 |
US $63.48 |
||
|
85916C
|
85916C
90084-98031 Relay, Ignition, No.1[08.2002 - 08.2004] UCK3#,4#,VCK30,40..4HC PART NUMBER LABEL=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85916C
|
85916C
90987-02012 Relay, Ignition, No.1[08.2002 - 08.2004] UCK3#,4#,VCK30,40..4HC PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $27.85 |
||
|
85916D
|
85916D
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 PART NUMBER LABEL=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $27.85 |
||
|
85916N
|
85916N
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 PART NUMBER LABEL=90084-98031 |
90084-98031 |
US $63.48 |
||
|
85916N
|
85916N
90987-02012 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $27.85 |
||
|
85930G
|
85930G
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 ACC CUT RELAY |
90084-98031 |
US $63.48 |
||
|
85930G
|
85930G
90987-04004 Relay, Starter Cut[08.2002 - 08.2004] UCK3#,4# |
90987-04004 |
from US $42.71 |
||
|
85939
|
85939
90084-98031 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 |
90084-98031 |
US $63.48 |
||
|
86220A
|
86220A
90987-02012 Relay, Ignition, No.1[10.2003 - 08.2004] UCK31,41 |
90987-02012 |
from US $27.85 |
||
|
89221
|
89221
89221-0C030
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..SR5..USA |
89221-0C030 |
— | ||
| replacement | |||||
|
89221
|
89221
89221-0C031
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..SR5..USA |
89221-0C031 |
— | ||
|
89221
|
89221
89221-0C040
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..USA W(SECURITY SYSTEM) |
89221-0C040 |
— | ||
| replacement | |||||
|
89221
|
89221
89221-0C041
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..USA W(SECURITY SYSTEM) |
89221-0C041 |
— | ||
|
89221
|
89221
89221-0C050
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..SR5 W(DAY TIME RUNNING LIGHT SYSTEM) |
89221-0C050 |
— | ||
| replacement | |||||
|
89221
|
89221
89221-0C051
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41..SR5 W(DAY TIME RUNNING LIGHT SYSTEM) |
89221-0C051 |
— | ||
|
89221
|
89221
89221-0C060
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41 W(DAY TIME RUNNING LIGHT SYSTEM & SECURITY SYSTEM) |
89221-0C060 |
— | ||
| replacement | |||||
|
89221
|
89221
89221-0C061
Computer, Multiplex Network Body
[10.2003 - 08.2004] UCK31,41 W(DAY TIME RUNNING LIGHT SYSTEM & SECURITY SYSTEM) |
89221-0C061 |
— | ||
|
89533
|
89533
89533-34050
Computer, 4 Wheel Drive Control
[10.2003 - 08.2004] UCK41 |
89533-34050 |
— | ||
|
9008011255
|
9008011255
90080-11255
New Genuine Part
|
90080-11255 |
— | ||
|
9008011354
|
9008011354
90080-11354 New Genuine Part |
90080-11354 |
US $0.52 |
||
|
9017606036
|
9017606036
90176-06036 NUT |
90176-06036 |
from US $0.92 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
US $1.60 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9331614010
|
9331614010
93316-14010
New Genuine Part
|
93316-14010 |
— | ||
