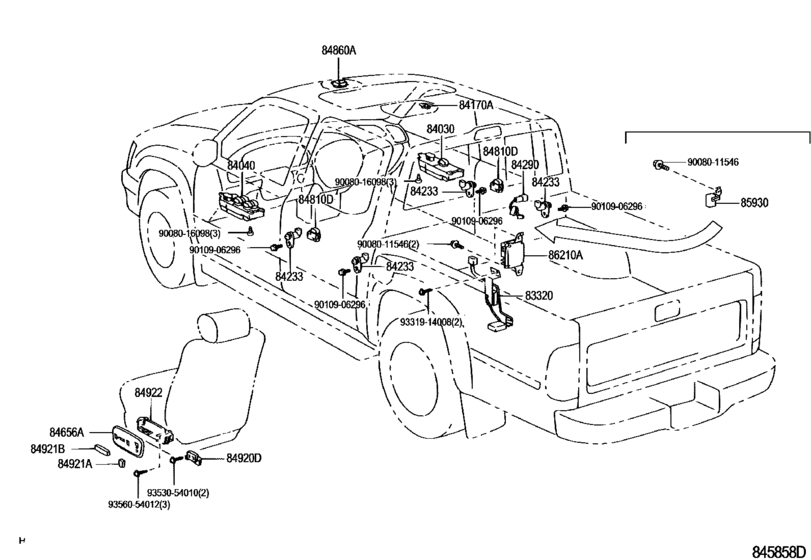

Switch & Relay & Computer ([10.2003 - 08.2004] DOOR,ROOF,FLOOR & LUGGAGE (0310-0408)UCK31,41) Diagram Toyota TUNDRA
- Year
- 2003 - 2004
- Sales region
- U.S.A.
- Frame
- UCK41
- grade
- SR5
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- DECK
- SD
- CAB
- DCB
- From
- 10.2003
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- TUNDRA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-34050
Gage Assy, Fuel Sender
[08.2002 - 08.2004] UCK3#,4#,VCK30,40 |
83320-34050 |
— | ||
|
84030
|
84030
84030-0C020
Switch Assy,multiplex Network
[10.2003 - 08.2004] UCK31,41 |
84030-0C020 |
— | ||
|
84040
|
84040
84040-0C020
Master Switch Assy,multiplex Network
[10.2003 - 08.2004] UCK31,41 |
84040-0C020 |
— | ||
|
84170A
|
84170A
84170-0C010-B0
Knob, Room Lamp Switch
[10.2003 - 08.2004] UCK31,41 MD.CHARCOAL,TRIM11 |
84170-0C010-B0 |
— | ||
|
84170A
|
84170A
84170-0C010-B1
Switch Assy, Room Lamp No.1
[10.2003 - 08.2004] UCK31,41 MD.GRAY,TRIM12 |
84170-0C010-B1 |
— | ||
|
84170A
|
84170A
84170-0C010-E0
Knob, Room Lamp Switch
[10.2003 - 08.2004] UCK31,41 MD.OAK,TRIM4# |
84170-0C010-E0 |
— | ||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[10.2003 - 08.2004] UCK31,41 |
84231-53010 |
from US $10.56 |
||
|
84290
|
84290
84290-34010
Switch Assy, Limit
[10.2003 - 08.2004] UCK31,41 |
84290-34010 |
— | ||
|
84656A
|
84656A
84656-0C040
Bezel, Switch
[10.2003 - 08.2004] UCK31,41 NO.1 |
84656-0C040 |
— | ||
|
84810D
|
84810D
84030-AC030 Switch Assy,multiplex Network[10.2003 - 08.2004] UCK31,41 |
84030-AC030 |
US $47.90 |
||
|
84860A
|
84860A
84860-34010-B0 Switch Assy, Sliding RoofSLIDING ROOF [10.2003 - 08.2004] UCK31,41 MD.CHARCOAL,TRIM11 |
84860-34010-B0 |
US $77.17 |
||
| replacement | |||||
|
84860A
|
84860A
84860-34010-B1 Switch Assy, Sliding RoofSLIDING ROOF [10.2003 - 08.2004] UCK31,41 MD.CHARCOAL,TRIM11 |
84860-34010-B1 |
US $77.17 |
||
|
84860A
|
84860A
84860-34010-B1 Switch Assy, Sliding RoofSLIDING ROOF [10.2003 - 08.2004] UCK31,41 MD.GRAY,TRIM12 |
84860-34010-B1 |
US $77.17 |
||
|
84860A
|
84860A
84860-34010-E0 Switch Assy, Sliding RoofSLIDING ROOF [10.2003 - 08.2004] UCK31,41 MD.OAK,TRIM4# |
84860-34010-E0 |
US $77.17 |
||
| replacement | |||||
|
84860A
|
84860A
84860-34010-B1 Switch Assy, Sliding RoofSLIDING ROOF [10.2003 - 08.2004] UCK31,41 MD.OAK,TRIM4# |
84860-34010-B1 |
US $77.17 |
||
|
85930
|
85930
85930-34010
Relay Assy, Power Window
[10.2003 - 08.2004] UCK31,41 |
85930-34010 |
— | ||
|
86210A
|
86210A
86210-34020
Inverter Assy, Voltage
[10.2003 - 08.2004] UCK31,41 |
86210-34020 |
— | ||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— | ||
|
9008016098
|
9008016098
90080-16098
New Genuine Part
|
90080-16098 |
— | ||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.82 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
