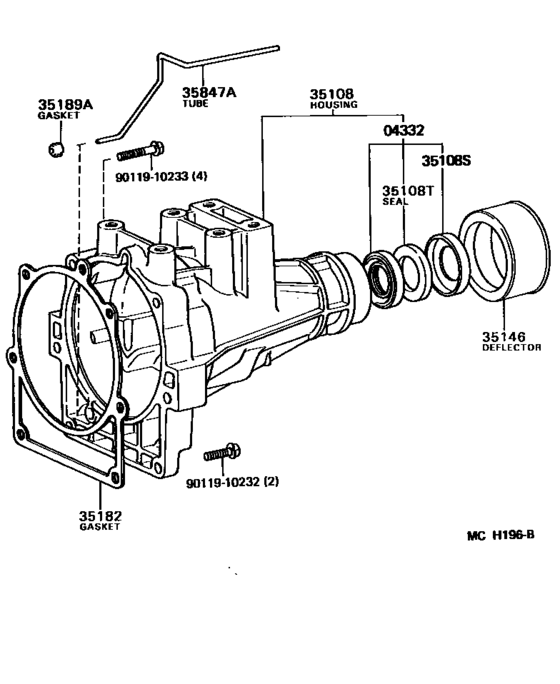

Extension Housing (Atm) ([08.1988 - ] (8808- )YR2#..4FC) Diagram Toyota VAN
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- YR29
- grade
- STD
- body
- V
- ENGINE
- 4YEC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- VAN
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04332
|
04332
04332-30030 Seal Kit, Oil(For Automatic Extention Housing)[08.1988 - 01.1990] YR2#..4FC |
04332-30030 |
from US $11.68 |
||
|
35108
|
35108
35108-26014 Housing Sub-Assy, Extension (Atm)[08.1988 - 01.1990] YR2#..4FC |
35108-26014 |
US $377.10 |
||
|
35108S
|
35108S
33145-30010 Retainer, Extension Housing Dust Seal(Mtm)[08.1988 - 01.1990] YR2#..4FC |
33145-30010 |
from US $2.55 |
||
|
35108T
|
35108T
90303-38010 Seal, Dust(For Manual Transmission Extension Housing)[08.1988 - 01.1990] YR2#..4FC |
90303-38010 |
from US $1.91 |
||
|
35146
|
35146
33146-30010
Deflector, Extension Housing Dust(Mtm)
[08.1988 - 01.1990] YR2#..4FC |
33146-30010 |
— | ||
| replacement | |||||
|
35146
|
35146
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.1988 - 01.1990] YR2#..4FC |
33146-30020 |
from US $15.84 |
||
|
35182
|
35182
35182-22010
Gasket, Extension Housing (Atm)
[08.1988 - 01.1990] YR2#,3#..4FC |
35182-22010 |
— | ||
| replacement | |||||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[08.1988 - 01.1990] YR2#,3#..4FC |
35182-28010 |
from US $7.76 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[08.1988 - 01.1990] YR2#..4FC |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-30020 Tube, Extension Housing Bush Apply[08.1988 - 01.1990] YR2#..4FC |
35847-30020 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
from US $1.48 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
