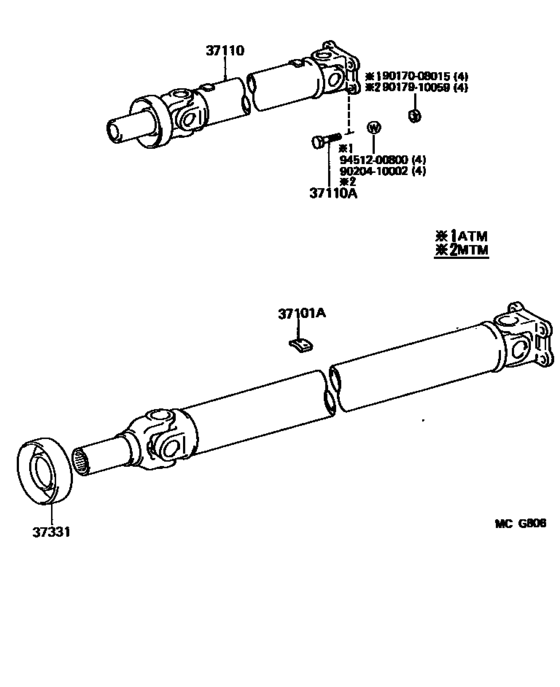

Propeller Shaft & Universal Joint ([08.1988 - ] (8808- )YR2#) Diagram Toyota VAN
- Year
- 1988 - 1990
- Sales region
- U.S.A.
- Frame
- YR29
- grade
- STD
- body
- V
- ENGINE
- 4YEC
- TRANSMISSION
- ATM
- DESTINATION
- USA
- From
- 08.1988
- To
- 01.1990
- Gear Shift Type
- 4FC
- Vehicle Model
- VAN
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 10G,L=20.7 |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 2G,T=2.0 |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 4G,T=2.0 |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 6G,L=12.4 |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 8G,L=16.6 |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 12G,L=24.9 |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 14G,L=29.0 |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01290 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 2G |
90937-01290 |
US $3.20 |
||
|
37101A
|
37101A
90937-01291 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 4G,FR |
90937-01291 |
US $3.20 |
||
|
37101A
|
37101A
90937-01292 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 6G |
90937-01292 |
US $3.20 |
||
|
37101A
|
37101A
90937-01293 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 8G,FR |
90937-01293 |
US $3.20 |
||
|
37101A
|
37101A
90937-01294 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 10G |
90937-01294 |
US $4.08 |
||
|
37101A
|
37101A
90937-01295 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 12G,FR |
90937-01295 |
US $4.08 |
||
|
37101A
|
37101A
90937-01301 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 24G,T=2.0,FR |
90937-01301 |
US $5.53 |
||
|
37101A
|
37101A
90937-01302 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 26G,T=2.0,FR |
90937-01302 |
US $5.53 |
||
|
37101A
|
37101A
90937-01303 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 28G,T=2.0,FR |
90937-01303 |
US $5.53 |
||
|
37101A
|
37101A
90937-01304 Piece, Balance, No.1 (For Propeller Shaft)[08.1988 - 01.1990] YR2#,3# 30G,T=2.0,FR |
90937-01304 |
US $6.99 |
||
|
37110
|
37110
37110-28150 Shaft Assy, Propeller[08.1988 - 01.1990] YR2#..4FC |
37110-28150 |
US $732.37 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1988 - 01.1990] YR3#;YR2#..4FC *8-1.25PX25-12 |
90101-08082 |
US $3.20 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1988 - 01.1990] YR2# |
37331-30010 |
US $10.48 |
||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
US $1.92 |
||
|
9017910059
|
9017910059
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90179-10059 |
from US $2.36 |
||
| replacement | |||||
|
9017910059
|
9017910059
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting) |
90080-17239 |
US $8.96 |
||
|
9020410002
|
9020410002
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
|
90204-10002 |
— | ||
| replacement | |||||
|
9020410002
|
9020410002
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting) |
90560-10H00 |
from US $5.46 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
