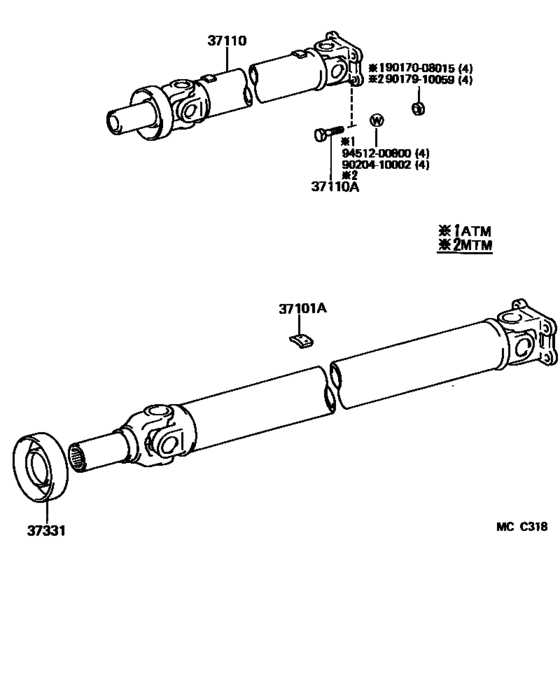

Propeller Shaft & Universal Joint ([08.1985 - ] (8508- )YR2#) Diagram Toyota VAN
- Year
- 1985 - 1986
- Sales region
- U.S.A.
- Frame
- YR29
- grade
- STD
- body
- V
- ENGINE
- 4YEC
- TRANSMISSION
- ATM
- DESTINATION
- CND
- From
- 08.1985
- To
- 08.1986
- Gear Shift Type
- 4FC
- Vehicle Model
- VAN
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 10G,L=20.7,10G |
90937-01132 |
US $3.52 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 20G,L=41.4,20G |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 30G,L=62.2,30G |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 2G,T=2.0,2G |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 4G,T=2.0,4G |
90937-01148 |
US $2.24 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 6G,L=12.4,6G |
90937-01149 |
US $2.24 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 8G,L=16.6,8G |
90937-01150 |
US $2.24 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 12G,L=24.9,12G |
90937-01151 |
US $2.40 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1988] YR2# 14G,L=29.0,14G |
90937-01152 |
US $2.24 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 16G,L=33.2,16G |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 18G,L=37.3,18G |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 22G,L=45.6,22G |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 24G,L=49.7,24G |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 26G,L=53.9,26G |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] YR2# 28G,L=58.1,28G |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-28150 Shaft Assy, Propeller[08.1985 - 08.1988] YR2#..4FC |
37110-28150 |
US $732.37 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1985 - 08.1988] YR2#..4FC *8-1.25PX25-12 |
90101-08082 |
from US $1.09 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1983 - 08.1988] YR2# |
37331-30010 |
US $10.48 |
||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
from US $1.92 |
||
|
9017910059
|
9017910059
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90179-10059 |
from US $2.36 |
||
| replacement | |||||
|
9017910059
|
9017910059
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting) |
90080-17239 |
US $8.96 |
||
|
9020410002
|
9020410002
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
|
90204-10002 |
— | ||
| replacement | |||||
|
9020410002
|
9020410002
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting) |
90560-10H00 |
from US $1.64 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
