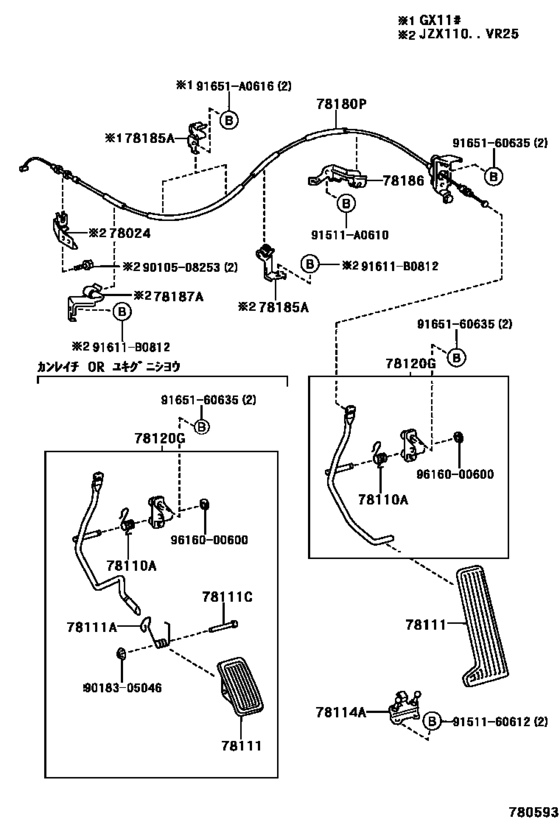

Accelerator Link ([06.2001 - ] (0106- )20,VR25) Diagram Toyota VEROSSA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- GX110
- grade
- 20
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 06.2001
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VEROSSA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
78214-22010 Spring (For Accelerator Pedal Rod)[06.2001 - 04.2004] GX110 |
78214-22010 |
US $3.35 |
||
|
78111
|
78111
78101-22020 Pedal, Accelerator[06.2001 - 04.2004] GX11#,JZX110 |
78101-22020 |
US $105.08 |
||
|
78111
|
78111
78101-22030 Pedal, Accelerator[06.2001 - 04.2004] GX11#,JZX110 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
78101-22030 |
US $48.64 |
||
|
78111
|
78111
78111-22020 Pedal, Accelerator[04.2002 - 12.2002] GX11# Lｴﾃﾞｲｼﾖﾝ *(L),Lｴﾃﾞｲｼﾖﾝﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P), ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
78111-22020 |
US $12.93 |
||
|
78111
|
78111
78111-30110 Pedal, Accelerator[04.2002 - 12.2002] GX11# Lｴﾃﾞｲｼﾖﾝ *(L),Lｴﾃﾞｲｼﾖﾝﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P) |
78111-30110 |
US $12.38 |
||
|
78111A
|
78111A
90508-23108
Spring (For Accelerator Pedal)
[01.2003 - 04.2004] GX11#,JZX110..20,25 ｴｸｼ-ﾄﾞ *(L),ｴｸｼ-ﾄﾞﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P) |
90508-23108 |
— | ||
|
78111A
|
78111A
90905-08002 Spring (For Accelerator Pedal)[06.2001 - 04.2004] GX11#,JZX110 |
90905-08002 |
US $2.06 |
||
|
78111C
|
78111C
90241-05022 Pin (For Accelerator Pedal)[06.2001 - 04.2004] GX11#,JZX110 |
90241-05022 |
US $2.56 |
||
|
78114A
|
78114A
78114-50021 Bracket, Accelerator Pedal Support[06.2001 - 04.2004] GX11#,JZX110 |
78114-50021 |
US $7.69 |
||
|
78120G
|
78120G
78120-22410 Rod Assy, Accelerator Pedal[06.2001 - 04.2004] GX110 |
78120-22410 |
US $32.61 |
||
|
78120G
|
78120G
78120-22420 Rod Assy, Accelerator Pedal[04.2002 - 12.2002] GX110 Lｴﾃﾞｲｼﾖﾝ *(L),Lｴﾃﾞｲｼﾖﾝﾅﾋﾞﾊﾟﾂｹ-ｼﾞ *(P) |
78120-22420 |
US $32.61 |
||
|
78120G
|
78120G
78120-22440 Rod Assy, Accelerator Pedal[06.2001 - 04.2004] GX110 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
78120-22440 |
US $104.83 |
||
|
78180P
|
78180P
78180-3A750 Cable Assy, Accelerator Control[06.2001 - 04.2004] GX11# |
78180-3A750 |
US $77.17 |
||
|
78185A
|
78185A
78185-22080 Clamp, Accelerator Control Cable, No.2[06.2001 - 04.2004] GX11# |
78185-22080 |
US $4.80 |
||
|
78186
|
78186
78186-30160 Support, Accelerator Control Cable, No.1[06.2001 - 04.2004] GX11#,JZX110..20,VR25 |
78186-30160 |
US $8.44 |
||
|
91511A0610
|
91511A0610
91511-A0610
Bolt (For Propeller Shaft Heat Insulator)
|
91511-A0610 |
— | ||
| replacement | |||||
|
91511A0610
|
91511A0610
91531-A0610 Bolt (For Propeller Shaft Heat Insulator) |
91531-A0610 |
US $0.96 |
||
|
91611B0812
|
91611B0812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
91651A0616
|
91651A0616
91651-A0616 BOLTWWASHER |
91651-A0616 |
from US $0.80 |
||
|
9010508253
|
9010508253
90105-08253 BOLT WASHER BASED |
90105-08253 |
US $1.44 |
||
|
9018305046
|
9018305046
90183-05046 New Genuine Part |
90183-05046 |
US $1.12 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9165160635
|
9165160635
91651-60635 BOLT |
91651-60635 |
US $2.56 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
