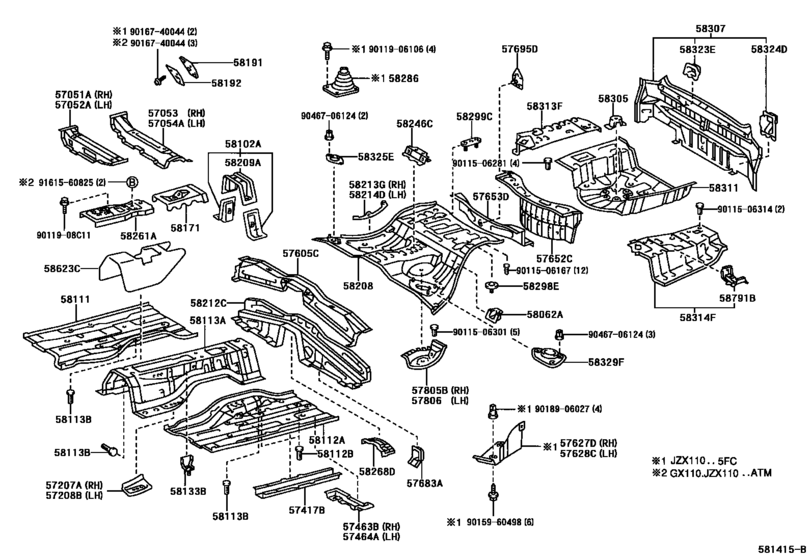

Floor Pan & Lower Back Panel ([06.2001 - ] (0106- )) Diagram Toyota VEROSSA
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- GX110
- grade
- 20
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 06.2001
- To
- 04.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VEROSSA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051A
|
57051A
57051-22050 Member Sub-Assy, Front Floor Cross, Rh[06.2001 - 04.2004] GX110,JZX110 |
57051-22050 |
US $93.18 |
||
|
57052A
|
57052A
57052-22050 Member Sub-Assy, Front Floor Cross, Lh[06.2001 - 04.2004] GX110,JZX110 |
57052-22050 |
US $93.18 |
||
|
57053
|
57053
57053-22050 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[06.2001 - 04.2004] GX110,JZX110 |
57053-22050 |
US $81.54 |
||
|
57054A
|
57054A
57054-22050 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[06.2001 - 04.2004] GX110,JZX110 |
57054-22050 |
US $81.54 |
||
|
57207A
|
57207A
57207-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Rh[06.2001 - 04.2004] GX110,JZX110 |
57207-51010 |
US $35.53 |
||
|
57208B
|
57208B
57208-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Lh[06.2001 - 04.2004] GX110,JZX110 |
57208-51010 |
US $35.53 |
||
|
57417B
|
57417B
57417-51010 Reinforcement, Front Floor Under[06.2001 - 04.2004] GX11#,JZX110 |
57417-51010 |
US $57.51 |
||
|
57463B
|
57463B
57403-53010 Reinforcement, Center Floor Crossmember[06.2001 - 04.2004] GX110,JZX110 |
57403-53010 |
US $28.54 |
||
|
57464A
|
57464A
57404-53010 Strength, Center Floor Crossmember[06.2001 - 04.2004] GX110,JZX110 |
57404-53010 |
US $28.54 |
||
|
57605C
|
57605C
57461-51010 Member, Center Floor Cross[06.2001 - 04.2004] GX11#,JZX110 |
57461-51010 |
US $135.41 |
||
|
57652C
|
57652C
57652-51010 Member, Rear Floor Cross, No.1[06.2001 - 04.2004] GX11#,JZX110 |
57652-51010 |
US $145.60 |
||
|
57653D
|
57653D
57653-51010 Member, Rear Floor Cross, No.2[06.2001 - 04.2004] GX11#,JZX110 |
57653-51010 |
US $68 |
||
|
57683A
|
57683A
57683-51010 Bracket, Fuel Tank Mounting, No.1[06.2001 - 04.2004] GX11#,JZX110 |
57683-51010 |
US $23.88 |
||
|
57695D
|
57695D
57695-53010 Bracket, Rear Floor Crossmember, No.2[06.2001 - 04.2004] GX11#,JZX110 |
57695-53010 |
US $8.30 |
||
|
57805B
|
57805B
57805-53020 Reinforcement Sub-Assy, Belt Anchor, Rh[06.2001 - 04.2004] GX11#,JZX110 |
57805-53020 |
US $52.85 |
||
| replacement | |||||
|
57805B
|
57805B
57805-53021 Reinforcement Sub-Assy, Belt Anchor, Rh[06.2001 - 04.2004] GX11#,JZX110 |
57805-53021 |
US $53.14 |
||
|
57806
|
57806
57806-53020 Reinforcement Sub-Assy, Belt Anchor, Lh[06.2001 - 04.2004] GX11#,JZX110 |
57806-53020 |
US $52.85 |
||
| replacement | |||||
|
57806
|
57806
57806-53021 Reinforcement Sub-Assy, Belt Anchor, Lh[06.2001 - 04.2004] GX11#,JZX110 |
57806-53021 |
US $53.14 |
||
|
58062A
|
58062A
58062-30010 Bracket Sub-Assy, Fuel Tank Mounting, Rear[06.2001 - 04.2004] GX11#,JZX110 |
58062-30010 |
US $21.69 |
||
|
58102A
|
58102A
58102-51010 Reinforcement Sub-Assy, Front Floor[06.2001 - 04.2004] GX11#,JZX110 |
58102-51010 |
US $64.36 |
||
|
58111
|
58111
58111-30401 Pan, Front Floor[06.2001 - 04.2004] GX110,JZX110 |
58111-30401 |
US $314.50 |
||
|
58112A
|
58112A
58112-30081 Panel, Front Floor, Lh[06.2001 - 04.2004] GX110,JZX110 |
58112-30081 |
US $314.50 |
||
|
58112B
|
58112B
90115-06301 Bolt, Weld(For Front Floor Pan, Lh)[06.2001 - 04.2004] GX11#,JZX110 |
90115-06301 |
US $0.96 |
||
|
58113A
|
58113A
58113-30131 Panel, Front Floor, Center[06.2001 - 04.2004] GX110,JZX110 |
58113-30131 |
US $380.02 |
||
|
58113B
|
58113B
90115-06243 Bolt, Weld(For Front Floor Panel, Center)[06.2001 - 04.2004] GX110,JZX110..20,VR25 |
90115-06243 |
US $1.28 |
||
|
58133B
|
58133B
58133-51010 Bracket, Front Floor Heat Insulator, No.3[06.2001 - 04.2004] GX11#,JZX110..20,VR25 |
58133-51010 |
US $5.97 |
||
|
58171
|
58171
58171-22090 Reinforcement, Parking Brake Base[06.2001 - 04.2004] GX11#,JZX110 |
58171-22090 |
US $53 |
||
|
58191
|
58191
58190-22010 Footrest, Front Floor[06.2001 - 04.2004] GX11#,JZX110..ATM |
58190-22010 |
US $81.40 |
||
|
58192
|
58192
58192-22050 Panel, Footrest[06.2001 - 04.2004] GX11#,JZX110..ATM |
58192-22050 |
US $14.41 |
||
|
58208
|
58208
58211-51902 Pan, Center Floor[06.2001 - 04.2004] GX11#,JZX110 |
58211-51902 |
US $382.93 |
||
|
58209A
|
58209A
58209-51010 Reinforcement Sub-Assy, Drive Shaft Center Support[06.2001 - 04.2004] GX11#,JZX110 |
58209-51010 |
US $43.39 |
||
|
58212C
|
58212C
58212-51010 Pan, Center Floor, Front[06.2001 - 04.2004] GX11#,JZX110 |
58212-51010 |
US $187.82 |
||
|
58213G
|
58213G
58213-51011 Reinforcement, Center Floor Panel, No.1 Rh[06.2001 - 04.2004] GX11#,JZX110 |
58213-51011 |
US $7.72 |
||
|
58214D
|
58214D
58214-51011 Reinforcement, Center Floor Panel, No.1 Lh[06.2001 - 04.2004] GX11#,JZX110 |
58214-51011 |
US $7.72 |
||
|
58246C
|
58246C
58246-22020 Bracket, Rear Seat Hinge, Center No.2[06.2001 - 04.2004] GX11#,JZX110 |
58246-22020 |
US $11.07 |
||
|
58261A
|
58261A
58261-22410 Cover, Transmission[06.2001 - 04.2004] GX110,JZX110..ATM |
58261-22410 |
US $87.36 |
||
|
58268D
|
58268D
58268-51011 Reinforcement, Parking Brake Cable, No.3[06.2001 - 04.2004] GX11#,JZX110 |
58268-51011 |
US $18.05 |
||
|
58298E
|
58298E
58298-30030 Bracket, Hot Air Intake, No.1[06.2001 - 04.2004] GX11#,JZX110 |
58298-30030 |
US $4.80 |
||
|
58299C
|
58299C
58299-30010 Bracket, Hot Air Intake, No.2[06.2001 - 04.2004] GX11#,JZX110 |
58299-30010 |
US $9.03 |
||
|
58305
|
58305
58351-53010 Bracket Sub-Assy, Spare Wheel Clamp[06.2001 - 04.2004] GX11#,JZX110 |
58351-53010 |
US $9.90 |
||
|
58307
|
58307
58307-22760 Panel Sub-Assy, Body Lower Back[06.2001 - 04.2004] GX11#,JZX110 |
58307-22760 |
US $254.80 |
||
|
58311
|
58311
58311-22150 Pan, Rear Floor[06.2001 - 04.2004] GX11#,JZX110 |
58311-22150 |
US $251.89 |
||
|
58313F
|
58313F
58313-22120 Extension, Rear Floor Pan To Quarter Panel, Rh[06.2001 - 04.2004] GX11#,JZX110 |
58313-22120 |
US $72.80 |
||
|
58314F
|
58314F
58314-22903
Extension, Rear Floor Pan To Quarter Panel, Lh
[06.2001 - 04.2004] GX11#,JZX110 |
58314-22903 |
— | ||
|
58323E
|
58323E
58323-22100 Reinforcement, Rear Bumper Arm Support, Rh[06.2001 - 04.2004] GX11#,JZX110 |
58323-22100 |
US $14.27 |
||
|
58324D
|
58324D
58324-22060 Reinforcement, Rear Bumper Arm Support, Lh[06.2001 - 04.2004] GX11#,JZX110 |
58324-22060 |
US $19.80 |
||
|
58325E
|
58325E
58325-30010 Cover, Rear Floor Service Hole[06.2001 - 04.2004] GX11#,JZX110 |
58325-30010 |
US $9.32 |
||
|
58329F
|
58329F
58329-30020 Cover, Rear Floor Service Hole, No.2[06.2001 - 04.2004] GX11#,JZX110 |
58329-30020 |
US $17.76 |
||
|
58623C
|
58623C
58623-22220 Pad, Front Floor Silencer, Center[06.2001 - 04.2004] GX11#,JZX110 |
58623-22220 |
US $71.93 |
||
|
58791B
|
58791B
58791-30030 Carrier, Jack[06.2001 - 04.2004] GX11#,JZX110 |
58791-30030 |
US $14.71 |
||
|
9011908C11
|
9011908C11
90119-08C11 New Genuine Part |
90119-08C11 |
US $1.28 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506281
|
9011506281
90115-06281 New Genuine Part |
90115-06281 |
US $1.12 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $0.96 |
||
|
9011506314
|
9011506314
90115-06314 New Genuine Part |
90115-06314 |
US $1.46 |
||
|
9011906106
|
9011906106
90119-06106 New Genuine Part |
90119-06106 |
from US $0.64 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9018906027
|
9018906027
90189-06027 Grommet |
90189-06027 |
from US $0.74 |
||
|
9046706124
|
9046706124
90467-06124 New Genuine Part |
90467-06124 |
US $3.20 |
||
|
9161560825
|
9161560825
91615-60825
Bolt(For Intake Manifold To Exhaust Manifold)
|
91615-60825 |
— | ||
| replacement | |||||
|
9161560825
|
9161560825
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
