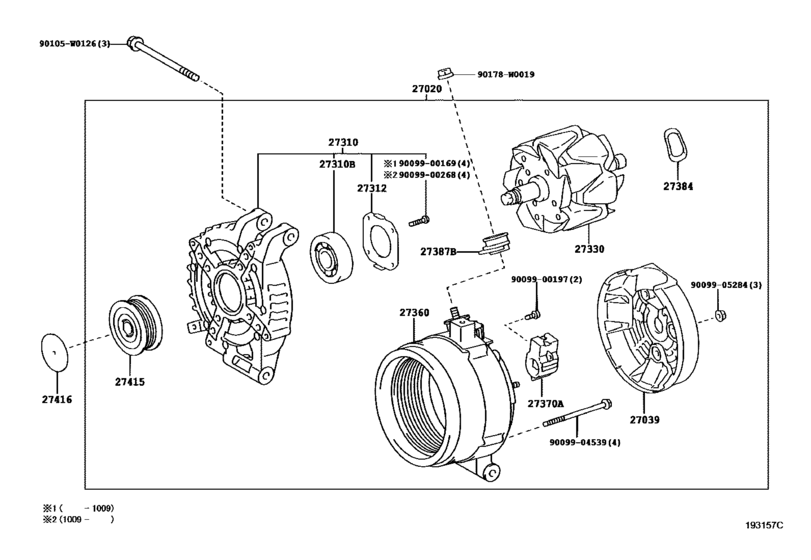

Alternator ([02.2009 - 03.2015] 12V 130A (0902-1503)1ADFTV,2ADFHV) Diagram Toyota VERSO
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- AUR21
- grade
- E
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- VERSO
- From
- 02.2009
- To
- 07.2010
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Vehicle Model
- VERSO
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0G011
Alternator Assy
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# 12V 100A |
27060-0G011 |
— | ||
|
27039
|
27039
27039-27090
Cover, Alternator Rear End
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27039-27090 |
— | ||
|
27310
|
27310
27310-27090
Frame Assy, Drive End, Alternator
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27310-27090 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[02.2009 - 07.2010] 1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
90099-10223 |
from US $10.31 |
||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[02.2009 - 07.2010] 1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
27312-72100 |
US $4.06 |
||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[02.2009 - 07.2010] 1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
27330-30070 |
— | ||
|
27360
|
27360
27360-27090
Coil Assy, Alternator
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27360-27090 |
— | ||
|
27370A
|
27370A
27370-58460 Holder Assy, Alternator Brush[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27370-58460 |
from US $16.25 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[02.2009 - 07.2010] 1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[02.2009 - 07.2010] 1ADFTV,2ADFHV,1ZRFAE,2ZRFAE..AUR2#,ZGR2# |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-26010 Pulley, Alternator W/clutchALTERNATOR W/CLUTCH [02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27415-26010 |
from US $66.11 |
||
|
27416
|
27416
27416-27010 Cap, Alternator Pulley[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
27416-27010 |
US $4.80 |
||
|
90105W0126
|
90105W0126
90105-W0126
New Genuine Part
|
90105-W0126 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9009900169
|
9009900169
90099-00169
New Genuine Part
|
90099-00169 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
