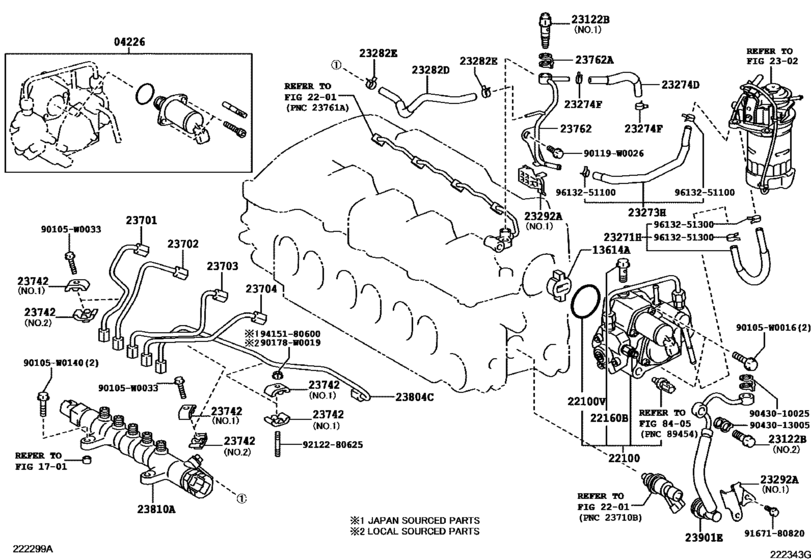

Injection Pump Assembly ([02.2009 - ] W(DPF) (0902- )1ADFTV,2ADFHV) Diagram Toyota VERSO
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- AUR21
- grade
- E
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- VERSO
- From
- 02.2009
- To
- 07.2010
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Vehicle Model
- VERSO
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04226
|
04226
04226-26010
Valve Kit, Suction Control
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
04226-26010 |
— | ||
|
13614A
|
13614A
13614-26010 Coupling, Supply Pump Drive, No.1SUPPLY PUMP DRIVE, NO.1 [02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
13614-26010 |
US $14.85 |
||
|
22100
|
22100
22100-0R040
Pump Assy, Injection Or Supply
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
22100-0R040 |
— | ||
|
22100V
|
22100V
22193-0R020
Ring, O(For Injection Pump)
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
22193-0R020 |
— | ||
|
22160B
|
22160B
22569-0R020 Screw[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
22569-0R020 |
US $11.79 |
||
|
23122B
|
23122B
23769-26030 Valve, Fuel CheckCHECK [02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.1 |
23769-26030 |
US $51.68 |
||
|
23122B
|
23122B
2376A-26010 Valve, Check[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.2; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),NO.1; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC,NO.1; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EU |
2376A-26010 |
US $94.64 |
||
| replacement | |||||
|
23122B
|
23122B
2376A-26030 Valve, Check[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.2; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS),NO.1; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EUROPE STEP4 LOW-SULFUR DIESEL SPEC,NO.1; 1ADFTV..AUR20 EXHAUST EMISSION CONTROL-EU |
2376A-26030 |
US $87.32 |
||
|
23271H
|
23271H
23271-0R030
Hose, Fuel, No.1
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2#..6F |
23271-0R030 |
— | ||
|
23273H
|
23273H
23273-0R010
Hose, Fuel, No.2
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23273-0R010 |
— | ||
|
23274D
|
23274D
23274-26080
Hose, Fuel, No.3
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23274-26080 |
— | ||
|
23274F
|
23274F
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
96135-51100 |
from US $1.93 |
||
|
23282D
|
23282D
23282-26070
Hose, Fuel, No.4
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23282-26070 |
— | ||
|
23282E
|
23282E
90467-11076 Clamp Or Clip(For Air Hose, No.5)[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
90467-11076 |
US $3.32 |
||
|
23292A
|
23292A
23292-0R010
Protector, Fuel Hose
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.1 |
23292-0R010 |
— | ||
|
23292A
|
23292A
23292-26030
Protector, Fuel Hose
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.2 |
23292-26030 |
— | ||
|
23701
|
23701
23701-0R030
Pipe Sub-Assy, Injection, No.1
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23701-0R030 |
— | ||
|
23702
|
23702
23702-0R030
Pipe Sub-Assy, Injection, No.2
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23702-0R030 |
— | ||
|
23703
|
23703
23703-0R030
Pipe Sub-Assy, Injection, No.3
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23703-0R030 |
— | ||
|
23704
|
23704
23704-0R030
Pipe Sub-Assy, Injection, No.4
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23704-0R030 |
— | ||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.1 |
23742-27010 |
from US $10.20 |
||
|
23742
|
23742
23742-58020 Clamp, Injection Pipe, No.2[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# NO.2 |
23742-58020 |
from US $13.30 |
||
|
23762
|
23762
23762-26021
Pipe, Nozzle Leakage, No.2
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23762-26021 |
— | ||
|
23762A
|
23762A
90904-30012 Gasket, Nozzle Leakage Pipe No.2[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
90904-30012 |
US $5.76 |
||
|
23804C
|
23804C
23804-0R020
Pipe Sub-Assy, Fuel Inlet
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23804-0R020 |
— | ||
|
23810A
|
23810A
23810-0R040
Rail Assy, Common
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23810-0R040 |
— | ||
| replacement | |||||
|
23810A
|
23810A
23810-0R041
Rail Assy, Common
[02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23810-0R041 |
— | ||
|
23901E
|
23901E
23901-26040 Tube Sub-Assy, FuelFUEL [02.2009 - 07.2010] 1ADFTV,2ADFHV..AUR2# |
23901-26040 |
US $119.39 |
||
|
90105W0016
|
90105W0016
90105-W0016
New Genuine Part
|
90105-W0016 |
— | ||
|
90105W0033
|
90105W0033
90105-W0033
New Genuine Part
|
90105-W0033 |
— | ||
|
90105W0140
|
90105W0140
90105-W0140 New Genuine Part |
90105-W0140 |
US $1.02 |
||
|
90119W0026
|
90119W0026
90119-W0026
New Genuine Part
|
90119-W0026 |
— | ||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9043010025
|
9043010025
90430-10025 Gasket(For Turbo Oil Inlet Pipe)NOZZLE LEAKAGE PIPE NO.2 |
90430-10025 |
from US $0.88 |
||
|
9043013005
|
9043013005
90430-13005 GASKET |
90430-13005 |
US $1.44 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9212280625
|
9212280625
92122-80625 New Genuine Part |
92122-80625 |
US $0.87 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.74 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.92 |
||
