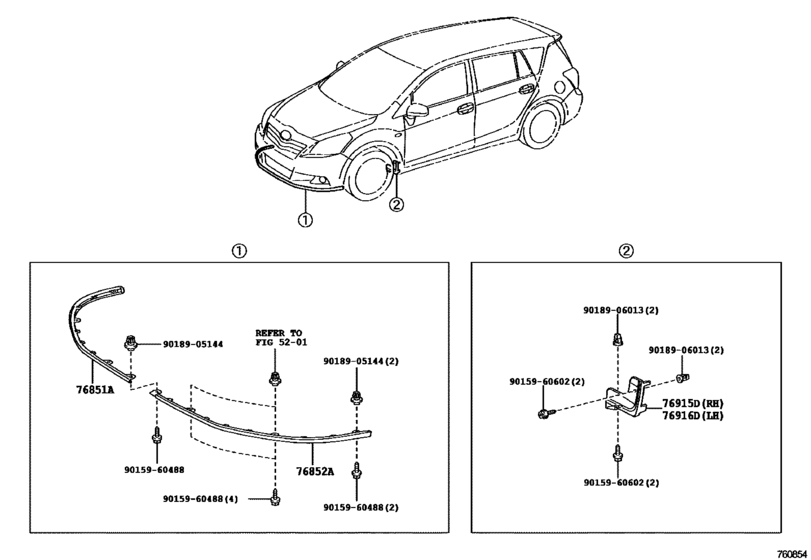

Mudguard & Spoiler ([02.2009 - 11.2012] FRONT (0902-1211)) Diagram Toyota VERSO
- Year
- 2009 - 2010
- Sales region
- Europe
- Frame
- AUR21
- grade
- E
- ENGINE
- 2ADFHV
- TRANSMISSION
- MTM
- Model
- VERSO
- From
- 02.2009
- To
- 07.2010
- Gear Shift Type
- 6F
- Seating Capacity
- 07S
- Vehicle Model
- VERSO
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76851A
|
76851A
76851-0F903
Cover, Front Spoiler, Rh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76851-0F903 |
— | ||
| replacement | |||||
|
76851A
|
76851A
76851-0F907
Cover, Front Spoiler, Rh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76851-0F907 |
— | ||
|
76852A
|
76852A
76852-0F903
Cover, Front Spoiler, Lh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76852-0F903 |
— | ||
| replacement | |||||
|
76852A
|
76852A
76852-0F907
Cover, Front Spoiler, Lh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76852-0F907 |
— | ||
|
76915D
|
76915D
76915-0F020
Mudguard, Side, Front Rh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76915-0F020 |
— | ||
|
76916D
|
76916D
76916-0F020
Mudguard, Side, Front Lh
[02.2009 - 07.2010] AUR2#,ZGR2# |
76916-0F020 |
— | ||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.74 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9018905144
|
9018905144
90189-05144 GROMMET SCREW |
90189-05144 |
from US $0.82 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
