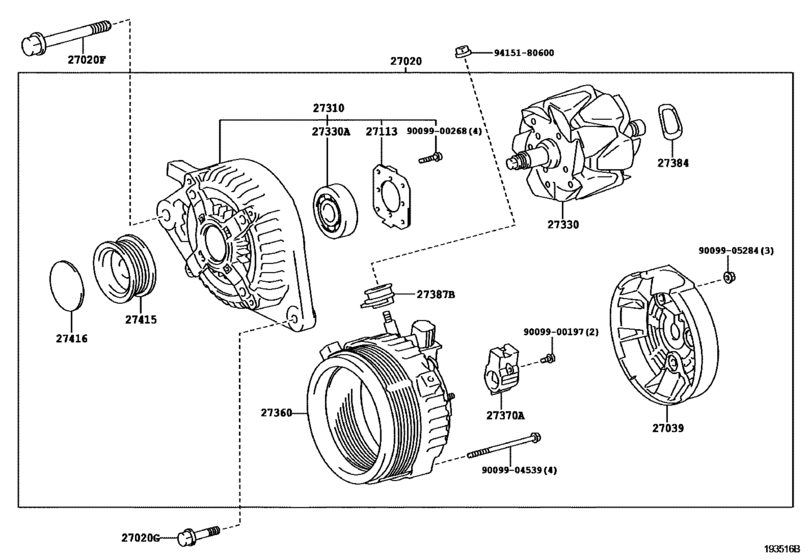

Alternator ([11.2010 - 11.2012] 12V 100A (1011-1211)1NRFE..LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-47120 Alternator Assy[11.2010 - 08.2012] 1NRFE..NSP120 12V 80A |
27060-47120 |
US $1,141.50 |
||
| replacement | |||||
|
27020
|
27020
27060-47250 Alternator Assy[11.2010 - 08.2012] 1NRFE..NSP120 12V 80A |
27060-47250 |
US $1,141.50 |
||
|
27020
|
27020
27060-47130 Alternator Assy[11.2010 - 08.2012] 1NRFE..NSP120..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT) |
27060-47130 |
US $1,514.24 |
||
|
27020
|
27020
27060-47140 Alternator Assy[11.2010 - 07.2012] 1NRFE..NSP120..LHD 12V 80A,WITH(STOP & START SYSTEM) |
27060-47140 |
US $1,141.50 |
||
| replacement | |||||
|
27020
|
27020
27060-47250 Alternator Assy[11.2010 - 07.2012] 1NRFE..NSP120..LHD 12V 80A,WITH(STOP & START SYSTEM) |
27060-47250 |
US $1,141.50 |
||
|
27020
|
27020
27060-47150 Alternator Assy[11.2010 - 11.2012] 1NRFE..NSP120..LHD 12V 100A,WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
27060-47150 |
US $1,253.62 |
||
|
27020
|
27020
27060-47250 Alternator Assy[08.2012 - 05.2014] 1NRFE..NSP120 12V 80A |
27060-47250 |
US $1,141.50 |
||
|
27020
|
27020
27060-47260 Alternator Assy[12.2012 - 05.2014] 1NRFE..NSP120..LHD 12V 100A,COLD SPEC & WITH(REAR HEATER DUCT) |
27060-47260 |
US $1,253.62 |
||
|
27020F
|
27020F
90105-10075 Bolt(For Alternator)[11.2010 - 05.2014] 1NRFE..NSP120 |
90105-10075 |
from US $1.56 |
||
|
27020G
|
27020G
90119-08D02 Bolt, No.2(For Alternator)[02.2012 - 08.2012] 1NRFE..NSP120 |
90119-08D02 |
US $1.46 |
||
|
27020G
|
27020G
91671-80845 Bolt, No.2(For Alternator)[11.2010 - 02.2012] 1NRFE..NSP120 |
91671-80845 |
US $0.87 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27039-31390 |
— | ||
|
27039
|
27039
27039-47310
Cover, Alternator Rear End
[08.2012 - 05.2014] 1NRFE..NSP120 |
27039-47310 |
— | ||
|
27039
|
27039
27039-47330
Cover, Alternator Rear End
[12.2012 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27039-47330 |
— | ||
|
27113
|
27113
27312-72100 Plate, Bearing Retainer, Alternator[11.2010 - 08.2012] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27312-72100 |
US $3.92 |
||
|
27310
|
27310
27310-47140
Frame Assy, Drive End, Alternator
[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27310-47140 |
— | ||
|
27310
|
27310
27310-47310
Frame Assy, Drive End, Alternator
[08.2012 - 05.2014] 1NRFE..NSP120 |
27310-47310 |
— | ||
|
27310
|
27310
27310-47330
Frame Assy, Drive End, Alternator
[12.2012 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27310-47330 |
— | ||
|
27330
|
27330
27330-23130
Rotor Assy, Alternator
[11.2010 - 12.2012] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
27330-23130 |
— | ||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27330-30070 |
— | ||
|
27330
|
27330
27330-30130 Rotor Assy, AlternatorALTERNATOR [11.2010 - 08.2012] 1NRFE..NSP120 |
27330-30130 |
US $246.36 |
||
|
27330
|
27330
27330-47310
Rotor Assy, Alternator
[08.2012 - 05.2014] 1NRFE..NSP120 |
27330-47310 |
— | ||
|
27330
|
27330
27330-47330
Rotor Assy, Alternator
[12.2012 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27330-47330 |
— | ||
|
27330A
|
27330A
90099-10223 Bearing(For Alternator Drive End Frame)[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
90099-10223 |
from US $10.31 |
||
|
27330A
|
27330A
90099-10227 Bearing(For Alternator Drive End Frame)VACUUM PUMP [08.2012 - 05.2014] 1NRFE..NSP120 |
90099-10227 |
US $15.25 |
||
|
27360
|
27360
27360-47250
Coil Assy, Alternator
[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47250 |
— | ||
|
27360
|
27360
27360-47270
Coil Assy, Alternator
[11.2010 - 12.2012] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47270 |
— | ||
|
27360
|
27360
27360-47380
Coil Assy, Alternator
[08.2012 - 05.2014] 1NRFE..NSP120 |
27360-47380 |
— | ||
|
27360
|
27360
27360-47390
Coil Assy, Alternator
[12.2012 - 08.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47390 |
— | ||
| replacements | |||||
|
27360
|
27360
27360-47392
Coil Assy, Alternator
[12.2012 - 08.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47392 |
— | ||
|
27360
|
27360
27384-38130
Washer
[12.2012 - 08.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27384-38130 |
— | ||
|
27360
|
27360
27360-47391
Coil Assy, Alternator
[08.2013 - 03.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47391 |
— | ||
| replacements | |||||
|
27360
|
27360
27360-47392
Coil Assy, Alternator
[08.2013 - 03.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47392 |
— | ||
|
27360
|
27360
27384-38130
Washer
[08.2013 - 03.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27384-38130 |
— | ||
|
27360
|
27360
27360-47392
Coil Assy, Alternator
[03.2014 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27360-47392 |
— | ||
|
27370A
|
27370A
27370-31220 Holder Assy, Alternator Brush[11.2010 - 08.2012] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27370-31220 |
from US $22.21 |
||
|
27384
|
27384
27384-38130
Washer
[12.2012 - 08.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27384-38130 |
— | ||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27384-50030 |
from US $2.80 |
||
|
27387B
|
27387B
27387-20130 Insulator, Terminal[11.2010 - 08.2012] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27387-20130 |
US $4.02 |
||
|
27387B
|
27387B
27387-47310
Insulator, Terminal
[08.2012 - 05.2014] 1NRFE..NSP120 |
27387-47310 |
— | ||
|
27415
|
27415
27415-0Y050
Pulley, Alternator W/clutch
[11.2010 - 06.2013] 1NRFE..NSP120 |
27415-0Y050 |
— | ||
| replacement | |||||
|
27415
|
27415
27415-0Y051 Pulley, Alternator W/clutch[11.2010 - 06.2013] 1NRFE..NSP120 |
27415-0Y051 |
US $81.40 |
||
|
27415
|
27415
27415-0Y051 Pulley, Alternator W/clutch[07.2013 - 05.2014] 1NRFE..NSP120 |
27415-0Y051 |
US $81.40 |
||
|
27415
|
27415
27415-0Y060 Pulley, Alternator W/clutch[11.2010 - 06.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27415-0Y060 |
US $82.99 |
||
| replacement | |||||
|
27415
|
27415
27415-0Y061 Pulley, Alternator W/clutch[11.2010 - 06.2013] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27415-0Y061 |
US $90.28 |
||
|
27415
|
27415
27415-0Y061 Pulley, Alternator W/clutch[07.2013 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
27415-0Y061 |
US $90.28 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[11.2010 - 05.2014] 1NRFE..NSP120 |
27416-0W050 |
from US $4.70 |
||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
||
