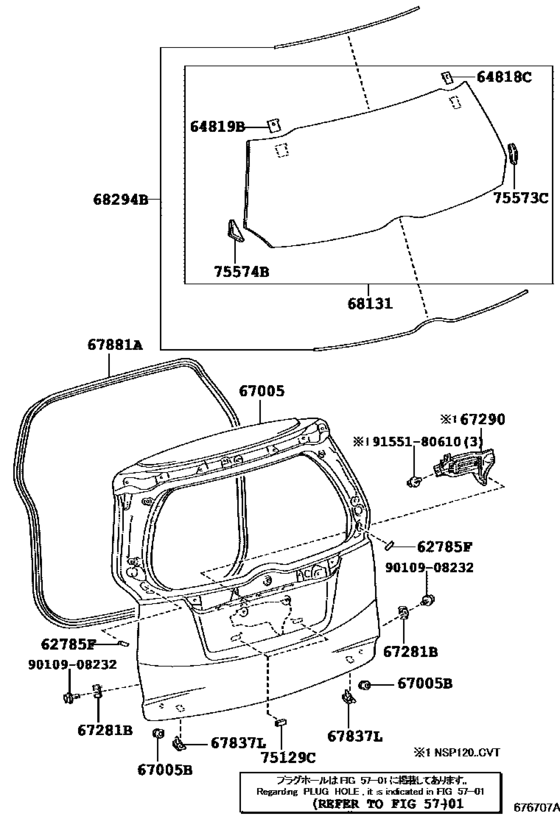

Back Door Panel & Glass ([11.2010 - ] DOOR PANEL (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62785F
|
62785F
62785-12050 Spacer, Quarter Window Glass, Rh[11.2010 - 05.2014] NLP121,NSP120 |
62785-12050 |
US $3.04 |
||
|
64818C
|
64818C
64818-52070 Spacer, Back Window Glass, No.1[11.2010 - 05.2014] NLP121,NSP120 |
64818-52070 |
US $5.12 |
||
|
64819B
|
64819B
64819-52060 Spacer, Back Window Glass, No.2[11.2010 - 05.2014] NLP121,NSP120 |
64819-52060 |
US $5.12 |
||
|
67005
|
67005
67005-52810 Panel Sub-Assy, Back Door[11.2010 - 08.2011] NLP121;NSP120..TERRA;NSP120..LHD..LUNA; NSP120..RHD..LUNA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
67005-52810 |
US $840 |
||
|
67005
|
67005
67005-52811 Panel Sub-Assy, Back Door[08.2011 - 09.2011] NLP121;NSP120..TERRA;NSP120..LHD..LUNA; NSP120..RHD..LUNA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
67005-52811 |
US $685.78 |
||
| replacement | |||||
|
67005
|
67005
67005-52810 Panel Sub-Assy, Back Door[08.2011 - 09.2011] NLP121;NSP120..TERRA;NSP120..LHD..LUNA; NSP120..RHD..LUNA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
67005-52810 |
US $840 |
||
|
67005
|
67005
67005-52813 Panel Sub-Assy, Back Door[08.2012 - 05.2014] NLP121;NSP120..TERRA;NSP120..LHD..LUNA; NSP120..RHD..CVT AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
67005-52813 |
from US $729.79 |
||
|
67005
|
67005
67005-52A80 Panel Sub-Assy, Back Door[11.2010 - 08.2011] NSP120..RHD..LUNA; NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER |
67005-52A80 |
US $822.52 |
||
|
67005
|
67005
67005-52A81 Panel Sub-Assy, Back Door[08.2011 - 09.2011] NSP120..RHD..LUNA; NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER |
67005-52A81 |
US $685.78 |
||
| replacement | |||||
|
67005
|
67005
67005-52A80 Panel Sub-Assy, Back Door[08.2011 - 09.2011] NSP120..RHD..LUNA; NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER |
67005-52A80 |
US $822.52 |
||
|
67005
|
67005
67005-52A83 Panel Sub-Assy, Back Door[08.2012 - 10.2013] NLP121,NSP120..LHD..LUNA AUDIO(FOR OVERSEAS MARKET)-DISPLAY 6SPEAKER |
67005-52A83 |
US $840 |
||
|
67005B
|
67005B
90541-09142 Cushion(For Back Door Panel)[11.2010 - 05.2014] NLP121,NSP120 |
90541-09142 |
from US $1.60 |
||
|
67281B
|
67281B
67281-52010 Stopper, Back Door, Lower[11.2010 - 05.2014] NLP121,NSP120 |
67281-52010 |
US $10.56 |
||
|
67837L
|
67837L
67837-52020 Seal, Door Dust Proof[11.2010 - 05.2014] NLP121,NSP120 |
67837-52020 |
US $2.40 |
||
|
67881A
|
67881A
67881-52160 Weatherstrip, Back Door[11.2010 - 05.2014] NLP121,NSP120 |
67881-52160 |
US $164.16 |
||
|
68131
|
68131
68105-52550
Glass, Back Door
[11.2010 - 11.2011] NLP121,NSP120 *UVCEHT,T=3.1,GREEN |
68105-52550 |
— | ||
|
68131
|
68131
68105-52560
Glass, Back Door
[11.2010 - 11.2011] NSP120..LHD *UVCEHT,T=3.1,GREEN,COLD SPEC & WITH(REAR HEATER DUCT); NLP121 *UVCEHT,T=3.1,GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&REAR WINDOW DEFOGGER-HI-POW ER TYPE WITH(TIMER) |
68105-52560 |
— | ||
|
68131
|
68131
68105-52570
Glass, Back Door
[11.2010 - 11.2011] NLP121,NSP120 *EHT,T=3.1,C.GREEN,BACK GLASS-PRIVACY(UV-CUT) |
68105-52570 |
— | ||
|
68131
|
68131
68105-52580
Glass, Back Door
[11.2010 - 11.2011] NSP120..LHD *EHT,T=3.1,C.GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&BACK GLASS-PRIVACY(UV-CUT); NLP121 *EHT,T=3.1,C.GREEN,COLD SPEC & WITH(REAR HEATER DUCT)&BACK GLASS-PRIVACY(UV-CUT)&R EAR WINDOW DEFOGGER-HI-POWER TYPE WITH(TIMER) |
68105-52580 |
— | ||
|
68294B
|
68294B
56117-50140 Dam Kit, Back Window Glass[11.2010 - 05.2014] NLP121,NSP120 |
56117-50140 |
from US $13.26 |
||
|
75129C
|
75129C
75129-13020 Cushion, Rr Licence Plate[11.2010 - 12.2010] NLP121,NSP120 |
75129-13020 |
US $1.28 |
||
|
75129C
|
75129C
75129-30010 Cushion, Rear License Plate[01.2011 - 05.2014] NLP121,NSP120 |
75129-30010 |
from US $1.87 |
||
|
75573C
|
75573C
75573-52190 Moulding, Back Window, Outside[11.2010 - 05.2014] NLP121,NSP120 |
75573-52190 |
US $8.32 |
||
|
75574B
|
75574B
75574-52080 Moulding, Back Window, Outside Lh[11.2010 - 05.2014] NLP121,NSP120 |
75574-52080 |
US $8.32 |
||
|
9010908232
|
9010908232
90109-08232 New Genuine Part |
90109-08232 |
US $2.77 |
||
|
9155180610
|
9155180610
91551-80610 BOLT FLANGE |
91551-80610 |
US $0.96 |
||
