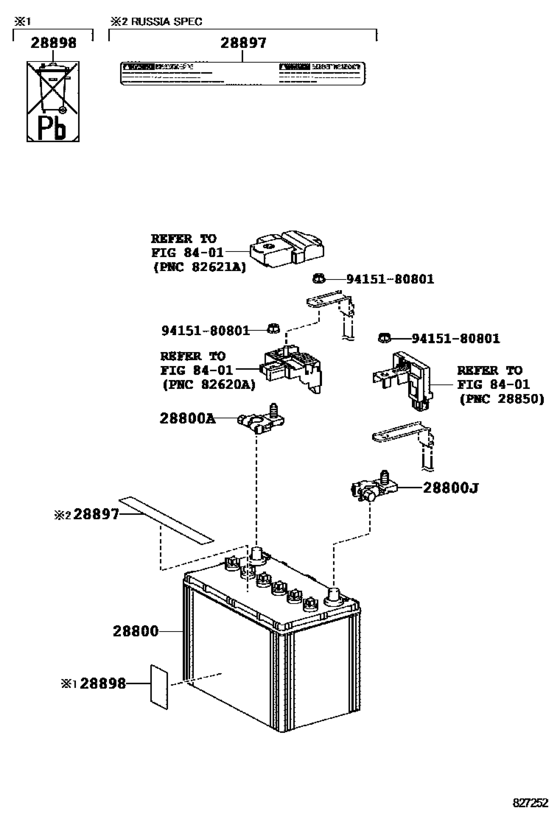

Battery & Battery Cable ([11.2010 - ] (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28800
|
28800
28800-20060
Battery (Cannot be supplied)
[04.2012 - 05.2014] 1NRFE..NSP120 55B24L(S),FURUKAWA |
28800-20060 |
— | ||
|
28800
|
28800
28800-22040
Battery
[11.2010 - 05.2014] 1NRFE..NSP120 46B24L(S),PANASONIC |
28800-22040 |
— | ||
|
28800
|
28800
28800-47030
Battery
[08.2012 - 05.2014] 1NRFE..NSP120..LHD Q-55,GERMANY SPEC,YUASA; 1NRFE..NSP120..LHD..6F Q-55,WITH(STOP & START SYSTEM),YUASA |
28800-47030 |
— | ||
|
28800
|
28800
28800-47050
Battery
[11.2010 - 05.2014] 1NRFE..NSP120..LHD Q-55,GERMANY SPEC,PANASONIC; 1NRFE..NSP120..LHD..6F Q-55,WITH(STOP & START SYSTEM),PANASONIC |
28800-47050 |
— | ||
|
28800
|
28800
28800-47060
Battery
[11.2010 - 08.2012] 1NRFE..NSP120..LHD Q-55,GERMANY SPEC,YUASA; 1NRFE..NSP120..LHD..6F Q-55,WITH(STOP & START SYSTEM),YUASA |
28800-47060 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-47030
Battery
[11.2010 - 08.2012] 1NRFE..NSP120..LHD Q-55,GERMANY SPEC,YUASA; 1NRFE..NSP120..LHD..6F Q-55,WITH(STOP & START SYSTEM),YUASA |
28800-47030 |
— | ||
|
28800
|
28800
28800-47080
Battery
[11.2010 - 05.2014] 1NRFE..NSP120..LHD S-85,GERMANY SPEC&WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD..CVT S-85,WITH(STOP & START SYSTEM) |
28800-47080 |
— | ||
|
28800
|
28800
28800-74261
Battery
[11.2010 - 04.2012] 1NRFE..NSP120 46B24L(S),FURUKAWA |
28800-74261 |
— | ||
| replacement | |||||
|
28800
|
28800
28800-20060
Battery (Cannot be supplied)
[11.2010 - 04.2012] 1NRFE..NSP120 46B24L(S),FURUKAWA |
28800-20060 |
— | ||
|
28800A
|
28800A
90982-05061 Terminal, Battery Positive[11.2010 - 05.2014] 1N#..NLP121,NSP120 |
90982-05061 |
from US $13.60 |
||
|
28800J
|
28800J
90982-06059 Terminal, Battery Negative[11.2010 - 05.2014] 1N#..NLP121,NSP120 |
90982-06059 |
from US $13.60 |
||
|
28897
|
28897
28897-47010
Plate, Battery Caution
[11.2010 - 12.2012] 1NRFE..NSP120..LHD RUSSIA SPEC |
28897-47010 |
— | ||
|
28898
|
28898
28898-46020
Plate, Battery
[11.2010 - 05.2014] 1N#..NLP121,NSP120 |
28898-46020 |
— | ||
|
9415180801
|
9415180801
94151-80801 NUT FLANGE |
94151-80801 |
from US $0.80 |
||
