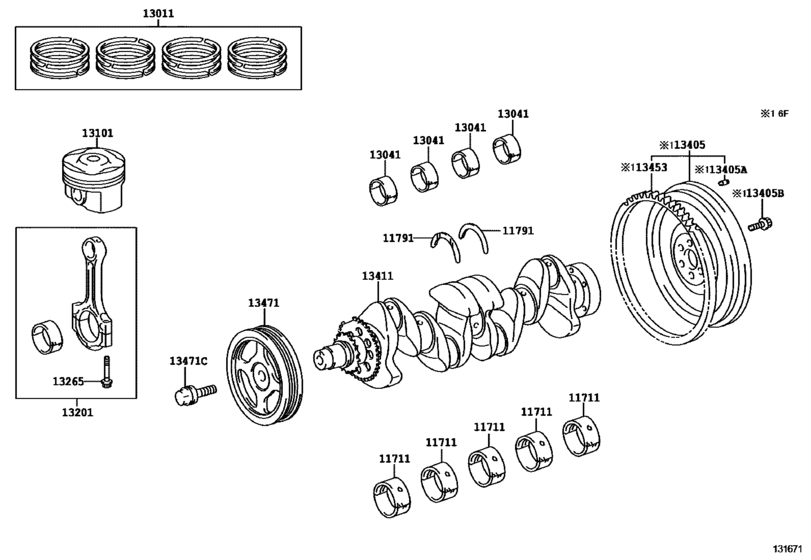

Crankshaft & Piston ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11701-47011-02
Bearing, Crankshaft
[11.2010 - 06.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47012-02
Bearing, Crankshaft
[11.2010 - 06.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47012-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47013-02 Bearing, Crankshaft[11.2010 - 06.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47013-02 |
from US $17.20 |
||
|
11711
|
11711
11701-47011-03 Bearing, CrankshaftCRANKSHAFT [11.2010 - 06.2012] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47011-03 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-03 Bearing, Crankshaft[11.2010 - 06.2012] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47012-03 |
US $26.35 |
||
|
11711
|
11711
11701-47011-04 Bearing, CrankshaftCRANKSHAFT [11.2010 - 06.2012] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47011-04 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-04 Bearing, Crankshaft[11.2010 - 06.2012] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47012-04 |
US $26.35 |
||
|
11711
|
11711
11701-47011-05 Bearing, CrankshaftCRANKSHAFT [11.2010 - 06.2012] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47011-05 |
US $34.94 |
||
| replacement | |||||
|
11711
|
11711
11701-47012-05 Bearing, Crankshaft[11.2010 - 06.2012] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47012-05 |
US $26.35 |
||
|
11711
|
11711
11701-47012-02
Bearing, Crankshaft
[06.2012 - 12.2013] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47012-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47013-02 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47013-02 |
from US $17.20 |
||
|
11711
|
11711
11701-47012-03 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47012-03 |
US $26.35 |
||
|
11711
|
11711
11701-47012-04 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47012-04 |
US $26.35 |
||
|
11711
|
11711
11701-47012-05 Bearing, Crankshaft[06.2012 - 12.2013] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47012-05 |
US $26.35 |
||
|
11711
|
11711
11701-47030-02
Bearing, Crankshaft
[12.2013 - 05.2014] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47030-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-47032-02 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47032-02 |
US $23.46 |
||
|
11711
|
11711
11701-47030-03 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47030-03 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47031-03 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47031-03 |
US $29.12 |
||
|
11711
|
11711
11701-47030-04 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47030-04 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47031-04 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47031-04 |
US $29.12 |
||
|
11711
|
11711
11701-47030-05 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47030-05 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47032-05 Bearing, Crankshaft[12.2013 - 05.2014] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47032-05 |
US $23.46 |
||
|
11711
|
11711
11701-47031-02 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47031-02 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47032-02 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
11701-47032-02 |
US $23.46 |
||
|
11711
|
11711
11701-47031-03 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
11701-47031-03 |
US $29.12 |
||
|
11711
|
11711
11701-47031-04 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK4,REFER REPAIR MANUAL |
11701-47031-04 |
US $29.12 |
||
|
11711
|
11711
11701-47031-05 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47031-05 |
US $29.12 |
||
| replacement | |||||
|
11711
|
11711
11701-47032-05 Bearing, Crankshaft[11.2014 - 04.2015] 1NRFE..NSP120 MARK5,REFER REPAIR MANUAL |
11701-47032-05 |
US $23.46 |
||
|
11791
|
11791
11791-47010 Washer, Crankshaft Thrust, UpperCRANKSHAFT THRUST, UPPER [11.2010 - 12.2013] 1NRFE..NSP120 STD |
11791-47010 |
from US $21.47 |
||
|
11791
|
11791
11791-47030 Washer, Crankshaft Thrust, Upper[12.2013 - 05.2014] 1NRFE..NSP120 STD |
11791-47030 |
US $25.92 |
||
| replacement | |||||
|
11791
|
11791
11791-47031 Washer, Crankshaft Thrust, Upper[12.2013 - 05.2014] 1NRFE..NSP120 STD |
11791-47031 |
US $23.44 |
||
|
13011
|
13011
13011-47030 Ring Set, PistonPISTON [11.2010 - 09.2011] 1NRFE..NSP120 STD |
13011-47030 |
US $220.15 |
||
| replacement | |||||
|
13011
|
13011
13011-47031 Ring Set, Piston[11.2010 - 09.2011] 1NRFE..NSP120 STD |
13011-47031 |
from US $202.08 |
||
|
13011
|
13011
13011-47031 Ring Set, Piston[09.2011 - 01.2013] 1NRFE..NSP120 STD |
13011-47031 |
from US $202.08 |
||
|
13011
|
13011
13011-47032 Ring Set, Piston[01.2013 - 09.2013] 1NRFE..NSP120 STD |
13011-47032 |
US $144.14 |
||
| replacement | |||||
|
13011
|
13011
13011-47033 Ring Set, Piston[01.2013 - 09.2013] 1NRFE..NSP120 STD |
13011-47033 |
US $118.80 |
||
|
13011
|
13011
13011-47033 Ring Set, Piston[09.2013 - 05.2014] 1NRFE..NSP120 STD |
13011-47033 |
US $118.80 |
||
|
13041
|
13041
13041-47010-01
Bearing, Connecting Rod
[11.2010 - 08.2012] 1NRFE..NSP120 MARK1,REFER REPAIR MANUAL |
13041-47010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47011-01
Bearing, Connecting Rod
[11.2010 - 08.2012] 1NRFE..NSP120 MARK1,REFER REPAIR MANUAL |
13041-47011-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47012-01 Bearing, Connecting Rod[11.2010 - 08.2012] 1NRFE..NSP120 MARK1,REFER REPAIR MANUAL |
13041-47012-01 |
from US $12.42 |
||
|
13041
|
13041
13041-47010-02
Bearing, Connecting Rod
[11.2010 - 08.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
13041-47010-02 |
— | ||
| replacements | |||||
|
13041
|
13041
13041-47011-02 Bearing, Connecting Rod[11.2010 - 08.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
13041-47011-02 |
US $16.89 |
||
|
13041
|
13041
13041-47012-02 Bearing, Connecting Rod[11.2010 - 08.2012] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
13041-47012-02 |
US $21.84 |
||
|
13041
|
13041
13041-47010-03 Bearing, Connecting RodCONNECTING ROD [11.2010 - 08.2012] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
13041-47010-03 |
US $22.42 |
||
| replacement | |||||
|
13041
|
13041
13041-47011-03 Bearing, Connecting Rod[11.2010 - 08.2012] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
13041-47011-03 |
US $16.89 |
||
|
13041
|
13041
13041-47011-01
Bearing, Connecting Rod
[08.2012 - 05.2014] 1NRFE..NSP120 MARK1,REFER REPAIR MANUAL |
13041-47011-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-47012-01 Bearing, Connecting Rod[08.2012 - 05.2014] 1NRFE..NSP120 MARK1,REFER REPAIR MANUAL |
13041-47012-01 |
from US $12.42 |
||
|
13041
|
13041
13041-47011-02 Bearing, Connecting Rod[08.2012 - 05.2014] 1NRFE..NSP120 MARK2,REFER REPAIR MANUAL |
13041-47011-02 |
US $16.89 |
||
|
13041
|
13041
13041-47011-03 Bearing, Connecting Rod[08.2012 - 05.2014] 1NRFE..NSP120 MARK3,REFER REPAIR MANUAL |
13041-47011-03 |
US $16.89 |
||
|
13101
|
13101
13101-47020
Piston Sub-Assy, W/pin
[11.2010 - 03.2012] 1NRFE..NSP120 STD |
13101-47020 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-47021 Piston Sub-Assy, W/pin (STD)[11.2010 - 03.2012] 1NRFE..NSP120 STD |
13101-47021 |
from US $72.38 |
||
|
13101
|
13101
13101-47021 Piston Sub-Assy, W/pin (STD)[03.2012 - 01.2013] 1NRFE..NSP120 STD |
13101-47021 |
from US $72.38 |
||
|
13101
|
13101
13101-47022 Piston Sub-Assy, W/pin[01.2013 - 10.2013] 1NRFE..NSP120 STD |
13101-47022 |
US $77.93 |
||
|
13101
|
13101
13101-47110 Piston Sub-Assy, W/pin[10.2013 - 05.2014] 1NRFE..NSP120 STD |
13101-47110 |
US $57.83 |
||
|
13201
|
13201
13201-49085 Rod Sub-Assy, ConnectingCONNECTING [11.2010 - 08.2012] 1NRFE..NSP120 |
13201-49085 |
US $112.11 |
||
| replacement | |||||
|
13201
|
13201
13201-49086
Rod Sub-Assy, Connecting
[11.2010 - 08.2012] 1NRFE..NSP120 |
13201-49086 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49087 Rod Sub-Assy, Connecting[11.2010 - 08.2012] 1NRFE..NSP120 |
13201-49087 |
US $93.24 |
||
|
13201
|
13201
13201-49086
Rod Sub-Assy, Connecting
[08.2012 - 05.2014] 1NRFE..NSP120 |
13201-49086 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49087 Rod Sub-Assy, Connecting[08.2012 - 05.2014] 1NRFE..NSP120 |
13201-49087 |
US $93.24 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[11.2010 - 05.2014] 1N#..NLP121,NSP120 |
13265-21020 |
from US $3.35 |
||
|
13405
|
13405
13405-47050 Flywheel Sub-Assy[11.2010 - 05.2014] 1NRFE..NSP120..6F |
13405-47050 |
US $203.84 |
||
|
13405
|
13405
13405-47060 Flywheel Sub-Assy[11.2010 - 05.2014] 1NRFE..NSP120..LHD..6F WITH(STOP & START SYSTEM) |
13405-47060 |
US $203.84 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[11.2010 - 05.2014] 1N#..NLP121,NSP120..MTM L=18,OD=8 |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90913-01029 Bolt, Flywheel SettingFLYWHEEL SET [11.2010 - 05.2014] 1NRFE..NSP120..6F |
90913-01029 |
US $1.31 |
||
|
13411
|
13411
13401-47020 Crankshaft[11.2010 - 05.2014] 1NRFE..NSP120 |
13401-47020 |
US $709.07 |
||
| replacement | |||||
|
13411
|
13411
13401-47011 Crankshaft[11.2010 - 05.2014] 1NRFE..NSP120 |
13401-47011 |
US $684.90 |
||
|
13453
|
13453
13453-10010 Gear, Flywheel Ring[11.2010 - 05.2014] 1NRFE..NSP120..6F |
13453-10010 |
US $57.26 |
||
|
13471
|
13471
13470-47070 Pulley, Crankshaft[11.2010 - 05.2014] 1NRFE..NSP120 |
13470-47070 |
US $109.20 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[11.2010 - 05.2014] 1NRFE..NSP120 |
90119-12345 |
from US $2.79 |
||
