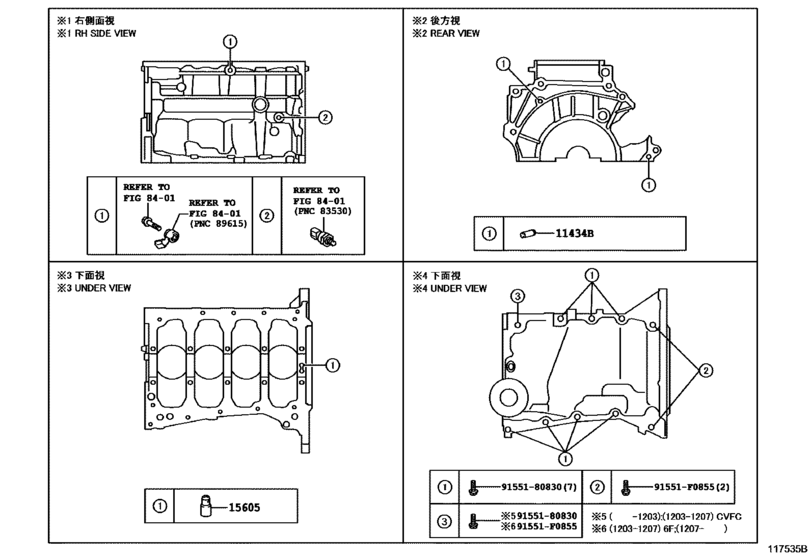

Cylinder Block ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[11.2010 - 05.2014] 1NRFE..NSP120 L=22,OD=10 |
90250-10113 |
from US $1.03 |
||
|
15605
|
15605
15703-47010 Valve Sub-Assy, Oil Check[11.2010 - 05.2014] 1NRFE..NSP120 |
15703-47010 |
US $9.96 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.98 |
||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
