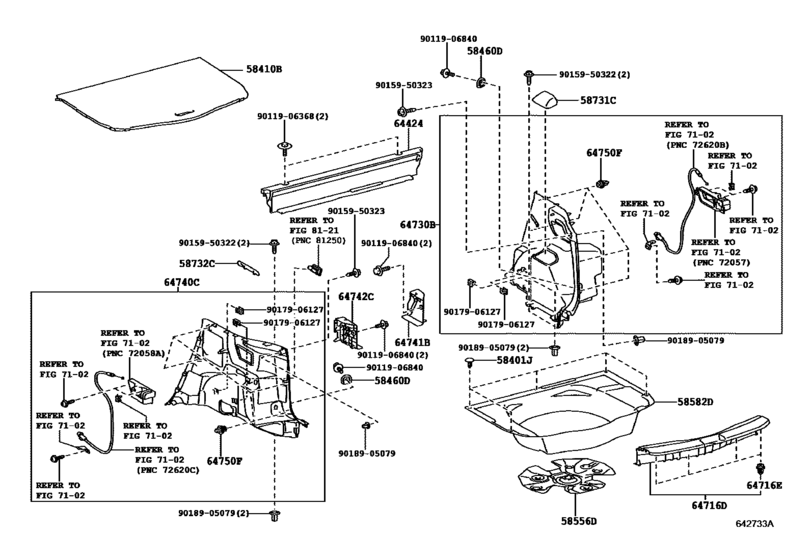

Deck Board & Deck Trim Cover ([11.2010 - ] (1011- )LUNA) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58401J
|
58401J
90467-05164-C0 Clip(For Deck Boad)[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
90467-05164-C0 |
from US $0.74 |
||
|
58410B
|
58410B
58410-52060-B0 Board Assy, Deck[11.2010 - 05.2014] NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
58410-52060-B0 |
US $261.12 |
||
|
58410B
|
58410B
58410-52070-B0 Board Assy, Deck[11.2010 - 12.2012] NSP120..LHD..CVT REUNION SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4#; NSP120..LHD..CVT UKRAINE SPEC&ENTRY GRADE&SPARE TIRE-T135/70 D16 TEMPORARY,DARK GRAY,TRIM2#,4#; NSP120..LHD..CVT TURKEY SPEC&ENTRY GRADE&SP |
58410-52070-B0 |
US $135.41 |
||
|
58460D
|
58460D
58460-33020 Striker Assy, Luggage Hold Belt[11.2010 - 05.2014] NLP121,NSP120 |
58460-33020 |
from US $9.92 |
||
|
58556D
|
58556D
58556-52010 Silencer, Rear Floor[11.2010 - 05.2014] NLP121,NSP120..LUNA |
58556-52010 |
US $51.98 |
||
|
58582D
|
58582D
58582-52010-B0 Mat, Rear Floor, Rear[11.2010 - 05.2014] NLP121,NSP120..LUNA DARK GRAY,TRIM1#,2#,4# |
58582-52010-B0 |
US $82.99 |
||
|
58731C
|
58731C
58731-52050-C0 Cap, Rear Absorber[11.2010 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4#; NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
58731-52050-C0 |
US $15.36 |
||
|
58732C
|
58732C
58732-52030-C0 Cap, Rear Absorber[11.2010 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4#; NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
58732-52030-C0 |
US $12.80 |
||
|
64424
|
64424
64424-52020-C0 Separator, Luggage Room Box[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2#; NSP120..LHD..CVT ENTRY GRADE,BLACK,TRIM2# |
64424-52020-C0 |
US $128.13 |
||
|
64716D
|
64716D
64716-52160-C0 Cover, Deck Trim, Rear[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
64716-52160-C0 |
US $139.12 |
||
|
64716E
|
64716E
90467-10161 Clip[11.2010 - 05.2014] NLP121,NSP120 |
90467-10161 |
from US $0.92 |
||
|
64730B
|
64730B
64730-52360-C0 Panel Assy, Deck Trim Side, Rh[11.2010 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4#; NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
64730-52360-C0 |
US $466.20 |
||
|
64730B
|
64730B
64730-52360-C1 Panel Assy, Deck Trim Side, Rh[05.2014 - 04.2015] NLP121,NSP120..TERRA BLACK,TRIM2#; NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
64730-52360-C1 |
US $466.20 |
||
|
64740C
|
64740C
64740-52400-C0 Panel Assy, Deck Trim Side, Lh[11.2010 - 07.2011] NLP121,NSP120..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
64740-52400-C0 |
US $356.72 |
||
| replacements | |||||
|
64740C
|
64740C
64740-52620-C0 Panel Assy, Deck Trim Side, Lh[11.2010 - 07.2011] NLP121,NSP120..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
64740-52620-C0 |
US $404.54 |
||
|
64740C
|
64740C
81330-05050
Lamp Assy, Courtesy
[11.2010 - 07.2011] NLP121,NSP120..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
81330-05050 |
— | ||
|
64740C
|
64740C
64740-52620-C0 Panel Assy, Deck Trim Side, Lh[07.2011 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC,BLACK,TRIM2#,4#; NSP120..LHD..CVT RUSSIA SPEC&ENTRY GRADE,BLACK,TRIM2#,4# |
64740-52620-C0 |
US $404.54 |
||
|
64740C
|
64740C
64740-52620-C1 Panel Assy, Deck Trim Side, Lh[05.2014 - 04.2015] NLP121,NSP120..TERRA BLACK,TRIM2#; NLP121,NSP120..LUNA BLACK,TRIM2#,4# |
64740-52620-C1 |
US $297.02 |
||
|
64741B
|
64741B
64741-52020-C0 Box, Deck Side Trim, Rh[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
64741-52020-C0 |
US $46.88 |
||
|
64742C
|
64742C
64742-52010-C0 Box, Deck Side Trim, Lh[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
64742-52010-C0 |
US $46.88 |
||
|
64750F
|
64750F
90467-10161 Clip[11.2010 - 08.2012] NLP121,NSP120 |
90467-10161 |
from US $0.92 |
||
|
9011906368
|
9011906368
90119-06368 BOLT WWASHER |
90119-06368 |
US $1.44 |
||
|
9011906840
|
9011906840
90119-06840 BOLT WWASHER |
90119-06840 |
from US $0.72 |
||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9015950323
|
9015950323
90159-50323 SCREWWWASHER |
90159-50323 |
from US $0.74 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $1.44 |
||
|
9018905079
|
9018905079
90189-05079 New Genuine Part |
90189-05079 |
US $1.76 |
||
