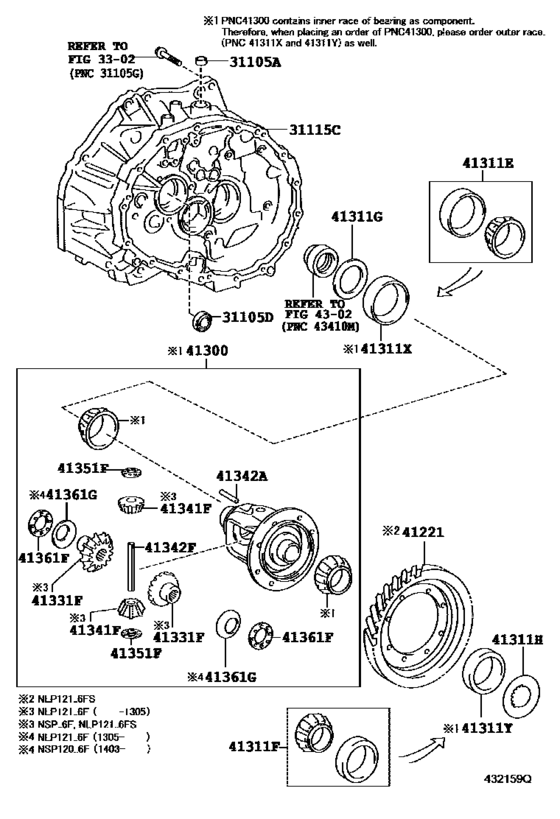

Front Axle Housing & Differential ([11.2010 - 05.2014] EC63,EC65 (1011-1405)) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105D
|
31105D
90311-25030 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [11.2010 - 05.2014] NLP121,NSP120..MTM |
90311-25030 |
from US $4.32 |
||
|
31115C
|
31115C
31115-12160 Case, Front Transaxle(Mtm)FRONT TRANSAXLE(MTM) [11.2010 - 08.2013] NSP120..6F |
31115-12160 |
US $336.34 |
||
| replacement | |||||
|
31115C
|
31115C
31115-12161 Case, Front Transaxle(Mtm)[11.2010 - 08.2013] NSP120..6F |
31115-12161 |
US $305.76 |
||
|
31115C
|
31115C
31115-12161 Case, Front Transaxle(Mtm)[08.2013 - 05.2014] NSP120..6F |
31115-12161 |
US $305.76 |
||
|
41300
|
41300
41300-12140
Case Assy, Front Differential, W/ring Gear
[05.2014 - 04.2015] NSP120..6F |
41300-12140 |
— | ||
|
41300
|
41300
41300-52090 Case Assy, Front Differential, W/ring Gear[11.2010 - 05.2014] NSP120..6F |
41300-52090 |
US $559.10 |
||
|
41311E
|
41311E
90366-40129 Bearing, Tapered Roller (For Front Differential Case Front)TAPERED ROLLER (FOR FR DIFFERENTIAL CASE FRONT) [11.2010 - 05.2014] NLP121,NSP120..MTM |
90366-40129 |
from US $33.09 |
||
|
41311F
|
41311F
90366-42009 Bearing, Tapered Roller (For Front Differential Case Rear)TAPERED ROLLER (FOR FR DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM |
90366-42009 |
from US $31.92 |
||
|
41311G
|
41311G
90560-41003 Shim(For Rear Differential Case)[11.2010 - 05.2014] NLP121,NSP120..MTM T=2.1 |
90560-41003 |
US $3.84 |
||
|
41311H
|
41311H
90564-44039 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.100, MARK 10 |
90564-44039 |
US $3.32 |
||
|
41311H
|
41311H
90564-44040 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.125, MARK 11 |
90564-44040 |
US $3.20 |
||
|
41311H
|
41311H
90564-44041 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.150, MARK 12 |
90564-44041 |
US $3.20 |
||
|
41311H
|
41311H
90564-44042 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.175, MARK 13 |
90564-44042 |
US $3.20 |
||
|
41311H
|
41311H
90564-44043 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.200, MARK 14 |
90564-44043 |
US $3.20 |
||
|
41311H
|
41311H
90564-44044 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.225, MARK 15 |
90564-44044 |
US $3.20 |
||
|
41311H
|
41311H
90564-44045 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.250, MARK 16 |
90564-44045 |
US $3.20 |
||
|
41311H
|
41311H
90564-44046 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.275, MARK 17 |
90564-44046 |
US $3.20 |
||
|
41311H
|
41311H
90564-44047 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.300, MARK 18 |
90564-44047 |
US $3.20 |
||
|
41311H
|
41311H
90564-44048 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.325, MARK 19 |
90564-44048 |
US $3.20 |
||
|
41311H
|
41311H
90564-44049 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.350, MARK 20 |
90564-44049 |
US $3.20 |
||
|
41311H
|
41311H
90564-44050 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.375, MARK 21 |
90564-44050 |
US $3.20 |
||
|
41311H
|
41311H
90564-44051 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.400, MARK 22 |
90564-44051 |
US $3.20 |
||
|
41311H
|
41311H
90564-44052 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.425, MARK 23 |
90564-44052 |
US $3.20 |
||
|
41311H
|
41311H
90564-44053 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.450, MARK 24 |
90564-44053 |
US $3.20 |
||
|
41311H
|
41311H
90564-44054 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.475, MARK 25 |
90564-44054 |
US $3.20 |
||
|
41311H
|
41311H
90564-44055 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.500, MARK 26 |
90564-44055 |
US $3.20 |
||
|
41311H
|
41311H
90564-44056 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.525, MARK 27 |
90564-44056 |
US $3.20 |
||
|
41311H
|
41311H
90564-44057 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.550, MARK 28 |
90564-44057 |
US $4.08 |
||
|
41311H
|
41311H
90564-44058 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.575, MARK 29 |
90564-44058 |
US $4.08 |
||
|
41311H
|
41311H
90564-44059 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.600, MARK 30 |
90564-44059 |
US $4.08 |
||
|
41311H
|
41311H
90564-44060 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.625, MARK 31 |
90564-44060 |
US $4.08 |
||
|
41311H
|
41311H
90564-44061 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.650, MARK 32 |
90564-44061 |
US $4.08 |
||
|
41311H
|
41311H
90564-44062 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.675, MARK 33 |
90564-44062 |
US $4.08 |
||
|
41311H
|
41311H
90564-44063 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.700, MARK 34 |
90564-44063 |
US $4.08 |
||
|
41311H
|
41311H
90564-44064 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.725, MARK 35 |
90564-44064 |
US $4.08 |
||
|
41311H
|
41311H
90564-44065 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.750, MARK 36 |
90564-44065 |
US $4.08 |
||
|
41311H
|
41311H
90564-44066 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.775, MARK 37 |
90564-44066 |
US $4.08 |
||
|
41311H
|
41311H
90564-44067 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.800, MARK 38 |
90564-44067 |
US $4.08 |
||
|
41311H
|
41311H
90564-44068 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.825, MARK 39 |
90564-44068 |
US $4.08 |
||
|
41311H
|
41311H
90564-44069 Washer, Plate (For Front Differential Case Rear)PLATE (FOR FRONT DIFFERENTIAL CASE REAR) [11.2010 - 05.2014] NLP121,NSP120..MTM T=2.850, MARK 40 |
90564-44069 |
US $4.08 |
||
|
41311X
|
41311X
90366-40130 Outer Race, Tapered Roller Bearing (For Diff. Case Front)[11.2010 - 05.2014] NLP121,NSP120..MTM |
90366-40130 |
US $8.91 |
||
|
41311Y
|
41311Y
90366-42010 Outer Race, Tapered Roller Bearing (For Diff. Case Rear)[11.2010 - 05.2014] NLP121,NSP120..MTM |
90366-42010 |
US $13.40 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[11.2010 - 05.2014] NSP120..6F |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[11.2010 - 05.2014] NSP120..6F |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[11.2010 - 05.2014] NLP121,NSP120..MTM |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[11.2010 - 05.2014] NLP121,NSP120..MTM |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM |
41342-52060 |
US $17.82 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[11.2010 - 05.2014] NSP120..6F |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=1.00,MARK 02 |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=1.10,MARK 03 |
41361-22030 |
US $3.14 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=1.20,MARK 04 |
41361-22040 |
from US $3.52 |
||
|
41361F
|
41361F
41361-22120 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NSP120..6F T=1.30,MARK 12 |
41361-22120 |
US $5.24 |
||
|
41361F
|
41361F
41361-22130 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NSP120..6F T=1.40,MARK 13 |
41361-22130 |
US $5.59 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=0.95,MARK 14 |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=1.05,MARK 15 |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NLP121,NSP120..MTM T=1.15,MARK 16 |
41361-22160 |
US $2.62 |
||
|
41361F
|
41361F
41361-22170 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 - 05.2014] NSP120..6F T=1.25,MARK 17 |
41361-22170 |
US $2.97 |
||
|
41361F
|
41361F
41361-22180
Washer, Rear Differential Side Gear Thrust, No.1
[11.2010 - 05.2014] NSP120..6F T=1.35,MARK 18 |
41361-22180 |
— | ||
|
41361G
|
41361G
90208-35001 Washer, Conical Spring(For Center Differential Side Gear)[03.2014 - 05.2014] NSP120..6F |
90208-35001 |
US $3.20 |
||
