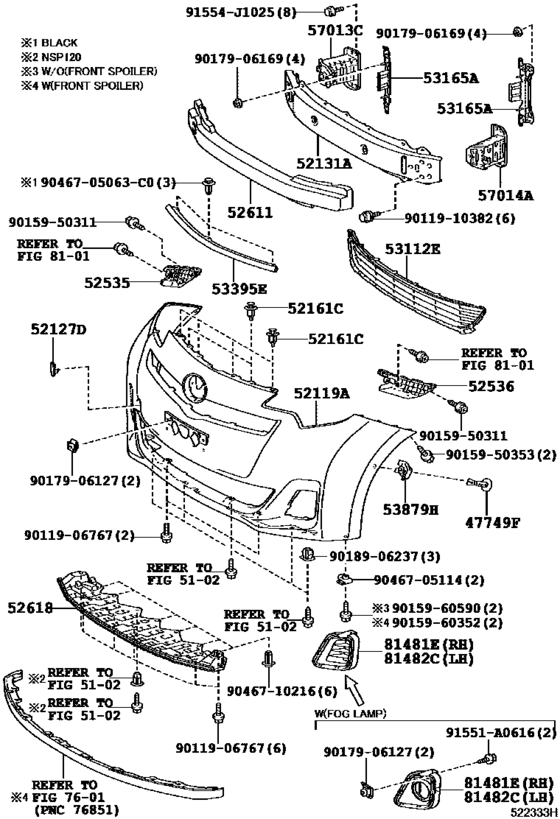

Front Bumper & Bumper Stay ([11.2010 - ] (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47749F
|
47749F
47749-50090 Clip, Pin Hold[02.2014 - 05.2014] NLP121,NSP120 |
47749-50090 |
from US $0.51 |
||
|
47749F
|
47749F
47749-58010 Clip, Pin Hold[11.2010 - 02.2014] NLP121,NSP120 |
47749-58010 |
from US $0.88 |
||
|
52119A
|
52119A
52119-52969
Cover, Front Bumper
[11.2010 - 09.2012] NLP121,NSP120 |
52119-52969 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-52987 Cover, Front Bumper[11.2010 - 09.2012] NLP121,NSP120 |
52119-52987 |
US $488.60 |
||
|
52119A
|
52119A
52119-52987 Cover, Front Bumper[09.2012 - 05.2014] NLP121,NSP120 |
52119-52987 |
US $488.60 |
||
|
52119A
|
52119A
52119-52992 Cover, Front Bumper[05.2014 - 04.2015] NLP121,NSP120 |
52119-52992 |
US $490 |
||
|
52127D
|
52127D
52127-52935 Cover, Front Bumper Hole, Rh[11.2010 - 05.2014] NLP121,NSP120 |
52127-52935 |
US $8 |
||
|
52131A
|
52131A
52131-52250 Reinforcement, Front Bumper[11.2010 - 05.2014] NLP121,NSP120 |
52131-52250 |
from US $133.24 |
||
|
52161C
|
52161C
52161-16010 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-02020 |
US $5.27 |
||
|
52535
|
52535
52535-52100 Retainer, Front Bumper Side, Rh[11.2010 - 05.2014] NLP121,NSP120 |
52535-52100 |
US $59.28 |
||
|
52536
|
52536
52536-52070 Retainer, Front Bumper Side, Lh[11.2010 - 05.2014] NLP121,NSP120 |
52536-52070 |
US $59.28 |
||
|
52611
|
52611
52611-52090 Absorber, Front Bumper Energy[11.2010 - 07.2011] NLP121,NSP120 |
52611-52090 |
US $124.32 |
||
|
52611
|
52611
52611-52091 Absorber, Front Bumper Energy[08.2011 - 05.2014] NLP121,NSP120 |
52611-52091 |
US $105.08 |
||
|
52618
|
52618
52618-52040 Absorber, Front Bumper, Lower[11.2010 - 05.2014] NLP121,NSP120 |
52618-52040 |
US $192.96 |
||
|
53112E
|
53112E
53112-52220 Grille, Radiator, Lower No.1[11.2010 - 05.2014] NLP121,NSP120 |
53112-52220 |
US $131.72 |
||
|
53165A
|
53165A
53164-52060 Bracket, Front Bumper Stone Deflector, No.1[11.2010 - 05.2014] NLP121,NSP120 |
53164-52060 |
US $28.12 |
||
|
53395E
|
53395E
53395-52010 Seal, Hood To Front End Panel[11.2010 - 05.2014] NLP121,NSP120 |
53395-52010 |
US $30.86 |
||
|
53879H
|
53879H
53879-50020 Retainer, Front Fender Liner[02.2014 - 05.2014] NLP121,NSP120 |
53879-50020 |
from US $4.32 |
||
|
53879H
|
53879H
53879-58010 Retainer, Front Fender Liner[11.2010 - 02.2014] NLP121,NSP120 |
53879-58010 |
from US $3.30 |
||
|
57013C
|
57013C
57013-52010 Bracket Sub-Assy, Front Side Member, Rh[11.2010 - 07.2012] NLP121,NSP120 |
57013-52010 |
US $113.57 |
||
| replacement | |||||
|
57013C
|
57013C
57013-52011 Bracket Sub-Assy, Front Side Member, Rh[11.2010 - 07.2012] NLP121,NSP120 |
57013-52011 |
from US $137.57 |
||
|
57013C
|
57013C
57013-52011 Bracket Sub-Assy, Front Side Member, Rh[08.2012 - 05.2014] NLP121,NSP120 |
57013-52011 |
from US $137.57 |
||
|
57014A
|
57014A
57014-52010 Bracket Sub-Assy, Front Side Member, Lh[11.2010 - 05.2014] NLP121,NSP120 |
57014-52010 |
from US $107.89 |
||
|
81481E
|
81481E
81481-52250 Cover, Fog Lamp, Rh[11.2010 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC&FRONT FOG LAMP-WITHOUT |
81481-52250 |
US $58.82 |
||
|
81481E
|
81481E
81481-52340 Cover, Fog Lamp, Rh[11.2010 - 05.2014] NLP121,NSP120..LUNA |
81481-52340 |
US $52.74 |
||
|
81482C
|
81482C
81482-52270 Cover, Fog Lamp, Lh[11.2010 - 12.2012] NSP120..LHD..LUNA RUSSIA SPEC&FRONT FOG LAMP-WITHOUT |
81482-52270 |
US $58.82 |
||
|
81482C
|
81482C
81482-52280 Cover, Fog Lamp, Lh[11.2010 - 05.2014] NLP121,NSP120..LUNA |
81482-52280 |
US $52.74 |
||
|
91551A0616
|
91551A0616
91551-A0616 New Genuine Part |
91551-A0616 |
US $0.96 |
||
|
91554J1025
|
91554J1025
91554-J1025 New Genuine Part |
91554-J1025 |
US $2.24 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9011910382
|
9011910382
90119-10382 BOLT WWASHER |
90119-10382 |
US $1.92 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015950353
|
9015950353
90159-50353 SCREW, W-WASHER |
90159-50353 |
from US $0.72 |
||
|
9015960352
|
9015960352
90159-60352 New Genuine Part |
90159-60352 |
US $1.92 |
||
|
9015960590
|
9015960590
90159-60590 SCREW WWASHER |
90159-60590 |
from US $0.72 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $1.44 |
||
|
9017906169
|
9017906169
90179-06169 Nut |
90179-06169 |
from US $1.05 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.78 |
||
|
9046705063C0
|
9046705063C0
90467-05063-C0 Clip |
90467-05063-C0 |
from US $1.17 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $2.16 |
||
|
9046710216
|
9046710216
90467-10216 Clip, Engine Under Cover, No.2 |
90467-10216 |
from US $1.19 |
||
