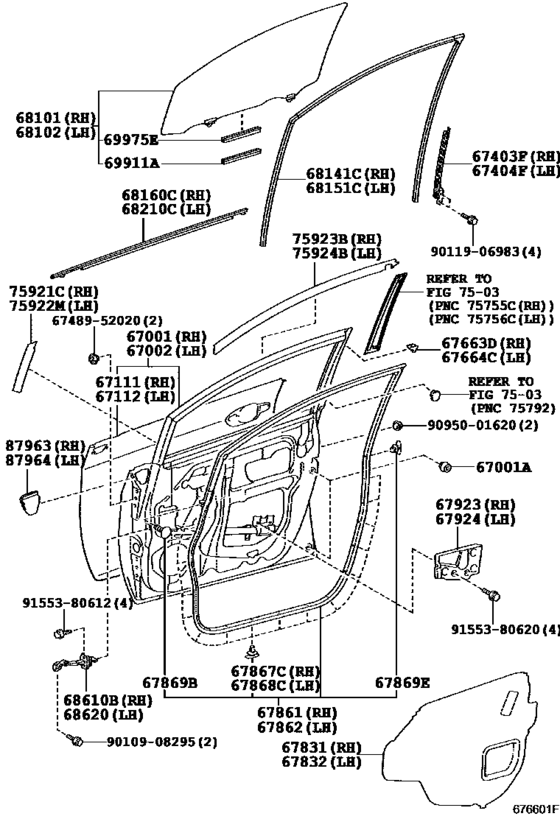

Front Door Panel & Glass ([11.2010 - ] DOOR PANEL (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-52490 Panel Sub-Assy, Front Door, Rh[11.2010 - 05.2014] NLP121,NSP120 |
67001-52490 |
US $859.60 |
||
|
67001A
|
67001A
90541-09124 Cushion, Luggage Compartment Door[11.2010 - 05.2014] NLP121,NSP120 |
90541-09124 |
from US $1.60 |
||
|
67002
|
67002
67002-52470 Panel Sub-Assy, Front Door, Lh[11.2010 - 05.2014] NLP121,NSP120 |
67002-52470 |
US $859.60 |
||
|
67111
|
67111
67111-52200 Panel, Front Door, Outer Rh[11.2010 - 05.2014] NLP121,NSP120 |
67111-52200 |
US $282.46 |
||
|
67112
|
67112
67112-52190 Panel, Front Door, Outer Lh[11.2010 - 05.2014] NLP121,NSP120 |
67112-52190 |
US $282.46 |
||
|
67403F
|
67403F
67403-52230 Frame Sub-Assy, Front Door, Rear Lower Rh[11.2010 - 05.2014] NLP121,NSP120 |
67403-52230 |
US $20.68 |
||
|
67404F
|
67404F
67404-52200 Frame Sub-Assy, Front Door, Rear Lower Lh[11.2010 - 05.2014] NLP121,NSP120 |
67404-52200 |
US $20.68 |
||
|
67663D
|
67663D
67663-48010 Garnish, Door Frame, Upper Rh[11.2010 - 05.2014] NLP121,NSP120 |
67663-48010 |
US $2.88 |
||
|
67664C
|
67664C
67664-48010 Garnish, Door Frame, Upper Lh[11.2010 - 05.2014] NLP121,NSP120 |
67664-48010 |
from US $2.20 |
||
|
67831
|
67831
67831-52390 Cover, Front Door Service Hole, Rh[11.2010 - 05.2014] NLP121,NSP120 |
67831-52390 |
US $17.18 |
||
|
67832
|
67832
67832-52250 Cover, Front Door Service Hole, Lh[11.2010 - 05.2014] NLP121,NSP120 |
67832-52250 |
US $17.18 |
||
|
67861
|
67861
67861-52220 Weatherstrip, Front Door, Rh[11.2010 - 05.2014] NLP121,NSP120 |
67861-52220 |
US $127.28 |
||
|
67862
|
67862
67862-52210 Weatherstrip, Front Door, Lh[11.2010 - 05.2014] NLP121,NSP120 |
67862-52210 |
US $127.28 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[11.2010 - 05.2014] NLP121,NSP120 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[11.2010 - 05.2014] NLP121,NSP120 |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20030 Clip, Door Weatherstrip(For Front Door)[11.2010 - 05.2014] NLP121,NSP120 |
67869-20030 |
from US $0.82 |
||
|
67869E
|
67869E
90467-04034 Clip[11.2010 - 05.2014] NLP121,NSP120 |
90467-04034 |
US $0.96 |
||
|
67923
|
67923
67923-52200 Cushion, Front Door Stiffener, No.1[11.2010 - 05.2014] NLP121,NSP120 |
67923-52200 |
US $54.26 |
||
|
67924
|
67924
67924-52200 Cushion, Front Door Stiffener, No.2[11.2010 - 05.2014] NLP121,NSP120 |
67924-52200 |
US $54.26 |
||
|
68101
|
68101
68110-52370
Glass Sub-Assy, Front Door, Rh
[11.2010 - 05.2014] NLP121,NSP120 *UVCT,T=3.5,GREEN |
68110-52370 |
— | ||
|
68102
|
68102
68120-52360
Glass Sub-Assy, Front Door, Lh
[11.2010 - 05.2014] NLP121,NSP120 *UVCT,T=3.5,GREEN |
68120-52360 |
— | ||
|
68141C
|
68141C
68141-52230 Run, Front Door Glass, Rh[11.2010 - 05.2014] NLP121,NSP120 |
68141-52230 |
US $32.32 |
||
|
68151C
|
68151C
68151-52210 Run, Front Door Glass, Lh[11.2010 - 05.2014] NLP121,NSP120 |
68151-52210 |
US $32.32 |
||
|
68160C
|
68160C
68160-52170 Weatherstrip Assy, Front Door Glass, Outer Rh[11.2010 - 08.2011] NLP121,NSP120 |
68160-52170 |
US $34.51 |
||
| replacement | |||||
|
68160C
|
68160C
68160-52171 Weatherstrip Assy, Front Door Glass, Outer Rh[11.2010 - 08.2011] NLP121,NSP120 |
68160-52171 |
US $46.82 |
||
|
68160C
|
68160C
68160-52171 Weatherstrip Assy, Front Door Glass, Outer Rh[09.2011 - 08.2012] NLP121,NSP120 |
68160-52171 |
US $46.82 |
||
|
68160C
|
68160C
68160-52172 Weatherstrip Assy, Front Door Glass, Outer Rh[08.2012 - 05.2014] NLP121,NSP120 |
68160-52172 |
US $46.82 |
||
|
68210C
|
68210C
68210-52170 Weatherstrip Assy, Front Door Glass, Outer Lh[11.2010 - 08.2011] NLP121,NSP120 |
68210-52170 |
US $34.51 |
||
| replacement | |||||
|
68210C
|
68210C
68210-52171 Weatherstrip Assy, Front Door Glass, Outer Lh[11.2010 - 08.2011] NLP121,NSP120 |
68210-52171 |
US $46.82 |
||
|
68210C
|
68210C
68210-52171 Weatherstrip Assy, Front Door Glass, Outer Lh[09.2011 - 08.2012] NLP121,NSP120 |
68210-52171 |
US $46.82 |
||
|
68210C
|
68210C
68210-52172 Weatherstrip Assy, Front Door Glass, Outer Lh[08.2012 - 05.2014] NLP121,NSP120 |
68210-52172 |
US $46.82 |
||
|
68610B
|
68610B
68610-52130 Check Assy, Front Door, Rh[11.2010 - 05.2014] NLP121,NSP120 |
68610-52130 |
US $46.82 |
||
|
68620
|
68620
68610-52130 Check Assy, Front Door, Rh[11.2010 - 05.2014] NLP121,NSP120 |
68610-52130 |
US $46.82 |
||
|
69911A
|
69911A
69955-47010 Channel, Rear Door Window GlassFRONT DOOR GLASS, NO.1 [11.2010 - 05.2014] NLP121,NSP120 |
69955-47010 |
US $8.81 |
||
|
69975E
|
69975E
69975-47010 Filler, Rear Door Glass ChannalFRONT DOOR GLASS CHANNEL, NO.1 [11.2010 - 05.2014] NLP121,NSP120 |
69975-47010 |
US $3.79 |
||
|
75921C
|
75921C
75921-52120 Tape, Black Out, No.1 Rh[11.2010 - 05.2014] NLP121,NSP120 |
75921-52120 |
US $14.72 |
||
|
75922M
|
75922M
75922-52120 Tape, Black Out, No.1 Lh[11.2010 - 05.2014] NLP121,NSP120 |
75922-52120 |
US $14.72 |
||
|
75923B
|
75923B
75923-52110 Tape, Black Out, No.2 Rh[11.2010 - 05.2014] NLP121,NSP120 |
75923-52110 |
US $24.47 |
||
|
75924B
|
75924B
75924-52110 Tape, Black Out, No.2 Lh[11.2010 - 05.2014] NLP121,NSP120 |
75924-52110 |
US $24.47 |
||
|
87963
|
87963
87963-52010 Cover, Outer Mirror Install Hole, Rh[11.2010 - 05.2014] NLP121,NSP120 |
87963-52010 |
US $15.96 |
||
|
87964
|
87964
87964-52010 Cover, Outer Mirror Install Hole, Lh[11.2010 - 05.2014] NLP121,NSP120 |
87964-52010 |
US $15.96 |
||
|
6748952020
|
6748952020
67489-52020 Seal, Front Door Front Lower Frame Cover |
67489-52020 |
US $3.20 |
||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.82 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.72 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $0.96 |
||
