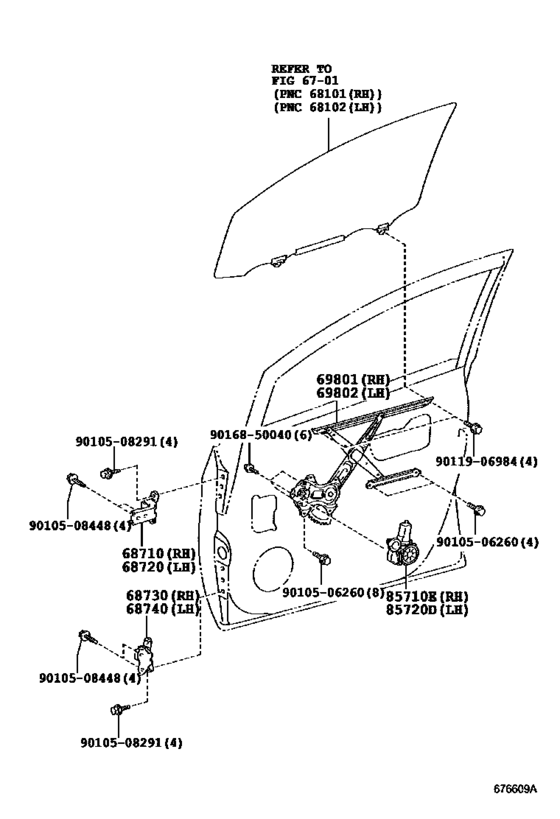

Front Door Window Regulator & Hinge ([11.2010 - 04.2015] (1011-1504)) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[11.2010 - 05.2014] NLP121,NSP120 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[11.2010 - 05.2014] NLP121,NSP120 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12120 Hinge Assy, Front Door, Lower Rh[11.2010 - 05.2014] NLP121,NSP120 |
68730-12120 |
from US $34.05 |
||
|
68740
|
68740
68740-12120 Hinge Assy, Front Door, Lower Lh[11.2010 - 05.2014] NLP121,NSP120 |
68740-12120 |
from US $34.05 |
||
|
69801
|
69801
69801-21020 Regulator Sub-Assy, Front Door Window, Rh[11.2010 - 05.2014] NLP121,NSP120 |
69801-21020 |
US $65.82 |
||
|
69802
|
69802
69802-21010 Regulator Sub-Assy, Front Door Window, Lh[11.2010 - 05.2014] NLP121,NSP120 |
69802-21010 |
from US $65.82 |
||
|
85710E
|
85710E
85710-35180 Motor Assy, Power Window Regulator, Rh[11.2010 - 05.2014] NLP121,NSP120..LHD |
85710-35180 |
from US $207.92 |
||
|
85720D
|
85720D
85720-52160 Motor Assy, Power Window Regulator, Lh[11.2010 - 01.2013] NLP121,NSP120..LHD |
85720-52160 |
US $458.64 |
||
| replacement | |||||
|
85720D
|
85720D
85720-52161 Motor Assy, Power Window Regulator, Lh[11.2010 - 01.2013] NLP121,NSP120..LHD |
85720-52161 |
US $574 |
||
|
85720D
|
85720D
85720-52161 Motor Assy, Power Window Regulator, Lh[02.2013 - 05.2014] NLP121,NSP120..LHD |
85720-52161 |
US $574 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.88 |
||
|
9010508448
|
9010508448
90105-08448 BOLT FLANGE |
90105-08448 |
from US $0.82 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
