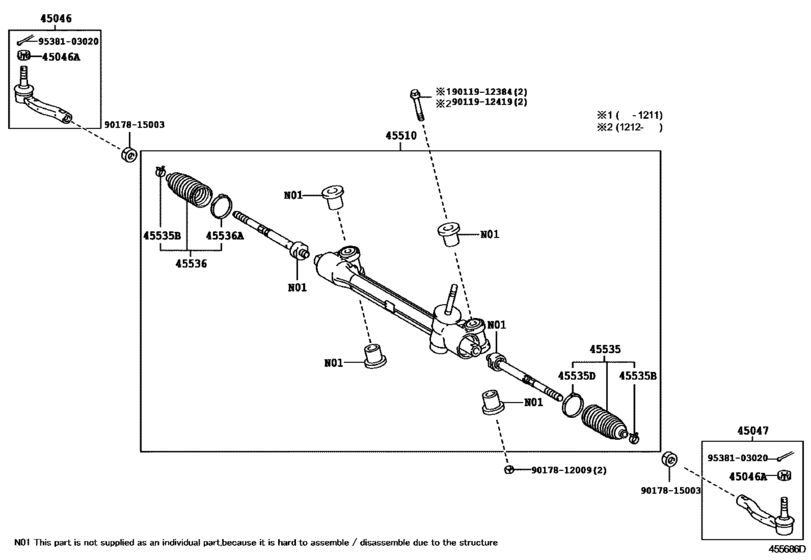

Front Steering Gear & Link ([11.2010 - ] (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-59205 End Sub-Assy, Tie Rod, Rh[11.2010 - 05.2014] NLP121,NSP120 |
45046-59205 |
US $40.89 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[11.2010 - 05.2014] NLP121,NSP120 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-59145 End Sub-Assy, Tie Rod, Lh[11.2010 - 05.2014] NLP121,NSP120 |
45047-59145 |
from US $40.89 |
||
|
45510
|
45510
45510-52280 Gear Assy, Steering[11.2010 - 01.2013] NLP121,NSP120..LHD |
45510-52280 |
US $531.44 |
||
| replacement | |||||
|
45510
|
45510
45510-52281 Gear Assy, Steering[11.2010 - 01.2013] NLP121,NSP120..LHD |
45510-52281 |
US $688.69 |
||
|
45510
|
45510
45510-52281 Gear Assy, Steering[01.2013 - 05.2014] NLP121,NSP120..LHD |
45510-52281 |
US $688.69 |
||
|
45535
|
45535
45535-59015
Boot, Steering Rack, No.1
[11.2010 - 05.2011] NLP121,NSP120 |
45535-59015 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-59035 Boot, Steering Rack, No.1[11.2010 - 05.2011] NLP121,NSP120 |
45535-59035 |
from US $12.64 |
||
|
45535
|
45535
45535-59035 Boot, Steering Rack, No.1[05.2011 - 05.2014] NLP121,NSP120 |
45535-59035 |
from US $12.64 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 - 05.2014] NLP121,NSP120 |
90467-19021 |
from US $1.54 |
||
|
45535D
|
45535D
45538-52010 Clamp(For Steering Rack Boot No.1)[11.2010 - 05.2014] NLP121,NSP120 |
45538-52010 |
US $3.52 |
||
|
45536
|
45536
45535-59015
Boot, Steering Rack, No.1
[11.2010 - 05.2011] NLP121,NSP120 |
45535-59015 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-59035 Boot, Steering Rack, No.1[11.2010 - 05.2011] NLP121,NSP120 |
45535-59035 |
from US $12.64 |
||
|
45536
|
45536
45535-59035 Boot, Steering Rack, No.1[05.2011 - 05.2014] NLP121,NSP120 |
45535-59035 |
from US $12.64 |
||
|
45536A
|
45536A
45538-52010 Clamp(For Steering Rack Boot No.1)[11.2010 - 05.2014] NLP121,NSP120 |
45538-52010 |
US $3.52 |
||
|
9011912384
|
9011912384
90119-12384 New Genuine Part |
90119-12384 |
US $9.44 |
||
|
9011912419
|
9011912419
90119-12419 New Genuine Part |
90119-12419 |
US $5.76 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9017815003
|
9017815003
90178-15003 Nut, Rack End Lock |
90178-15003 |
US $1.92 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
