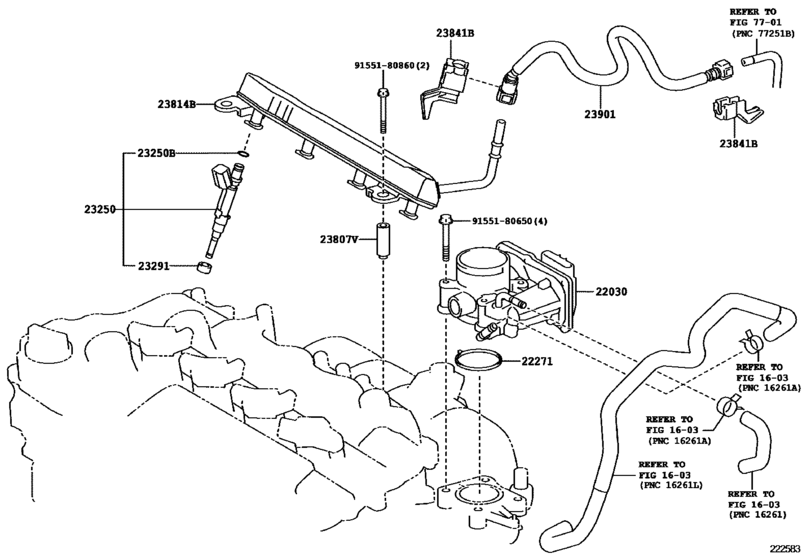

Fuel Injection System ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-47010 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [11.2010 - 05.2014] 1NRFE..NSP120 |
22030-47010 |
US $737.80 |
||
|
22271
|
22271
22271-47010 Gasket, Throttle BodyTHROTTLE BODY [11.2010 - 05.2014] 1NRFE..NSP120 |
22271-47010 |
US $4.66 |
||
|
23250
|
23250
23209-49205 Injector Assy, FuelFUEL [11.2010 - 05.2014] 1NRFE..NSP120 |
23209-49205 |
US $170.35 |
||
|
23250B
|
23250B
90301-07042 Ring, O(For Fuel Injector)O(FOR FUEL INJECTOR) [11.2010 - 05.2014] 1NRFE..NSP120 |
90301-07042 |
US $2.24 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[11.2010 - 05.2014] 1NRFE..NSP120 |
23291-23010 |
from US $2.73 |
||
|
23807V
|
23807V
23891-47010 Spacer, No.1(For Delivery Pipe)NO.1(FOR DELIVERY PIPE) [11.2010 - 02.2013] 1NRFE..NSP120 |
23891-47010 |
US $5.24 |
||
| replacement | |||||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[11.2010 - 02.2013] 1NRFE..NSP120 |
23891-47030 |
US $3.93 |
||
|
23807V
|
23807V
23891-47030 Spacer, No.1(For Delivery Pipe)[02.2013 - 05.2014] 1NRFE..NSP120 |
23891-47030 |
US $3.93 |
||
|
23814B
|
23814B
23814-47020 Pipe, Fuel DeliveryFUEL DELIVERY [11.2010 - 05.2014] 1NRFE..NSP120 |
23814-47020 |
US $100.46 |
||
| replacement | |||||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[11.2010 - 05.2014] 1NRFE..NSP120 |
23814-47050 |
US $94.64 |
||
|
23814B
|
23814B
23814-47050 Pipe, Fuel Delivery[07.2014 - 04.2015] 1NRFE..NSP120 |
23814-47050 |
US $94.64 |
||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[11.2010 - 05.2014] 1NRFE..NSP120 |
23841-21050 |
US $3.52 |
||
|
23901
|
23901
23901-47040 Tube Sub-Assy, Fuel[11.2010 - 05.2014] 1NRFE..NSP120 |
23901-47040 |
US $42.52 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
|
9155180860
|
9155180860
91551-80860 Bolt(For Head To Camshaft Bearing Cap) |
91551-80860 |
US $1.60 |
||
