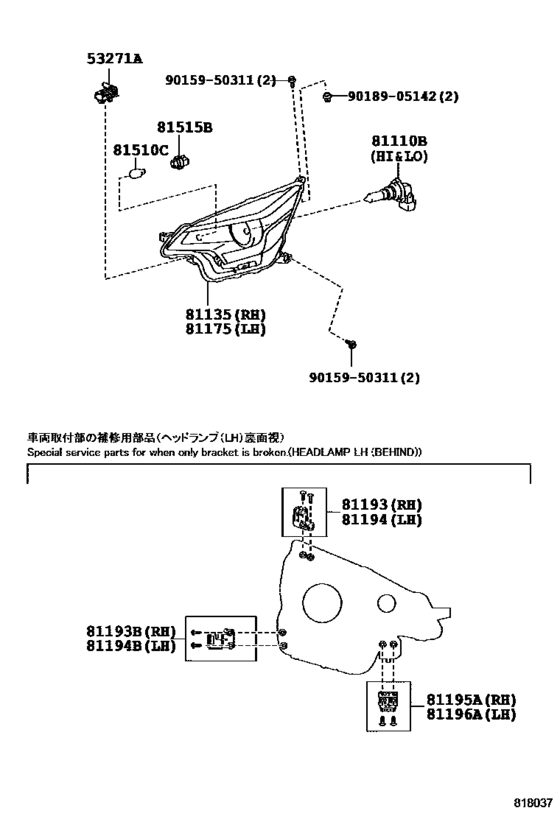

Headlamp ([05.2014 - ] (1405- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53271A
|
53271A
53271-44010 Bracket, Headlamp Mounting[11.2010 - 05.2014] NLP121,NSP120 |
53271-44010 |
from US $8.33 |
||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [11.2010 - 05.2014] NLP121,NSP120 12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
| replacement | |||||
|
81110B
|
81110B
90084-98033 Bulb(For Headlamp, No.1)NO.1) [11.2010 - 05.2014] NLP121,NSP120 12V 60/55W,HALOGEN |
90084-98033 |
US $52.88 |
||
|
81110B
|
81110B
90981-13089 Bulb(For Headlamp, No.1)[05.2014 - 04.2015] NLP121,NSP120 12V 55W,HALOGEN |
90981-13089 |
US $87.32 |
||
|
81135
|
81135
81130-52C80
Unit Assy, Headlamp, Rh
[11.2010 - 05.2014] NLP121,NSP120..LHD |
81130-52C80 |
— | ||
|
81135
|
81135
81130-52K00
Unit Assy, Headlamp, Rh
[05.2014 - 01.2015] NLP121,NSP120..LHD |
81130-52K00 |
— | ||
| replacement | |||||
|
81135
|
81135
81130-52K01
Unit Assy, Headlamp, Rh
[05.2014 - 01.2015] NLP121,NSP120..LHD |
81130-52K01 |
— | ||
|
81135
|
81135
81130-52K01
Unit Assy, Headlamp, Rh
[01.2015 - 04.2015] NLP121,NSP120..LHD |
81130-52K01 |
— | ||
|
81175
|
81175
81170-52C80
Unit Assy, Headlamp, Lh
[11.2010 - 05.2014] NLP121,NSP120..LHD |
81170-52C80 |
— | ||
|
81175
|
81175
81170-52K00
Unit Assy, Headlamp, Lh
[05.2014 - 01.2015] NLP121,NSP120..LHD |
81170-52K00 |
— | ||
| replacement | |||||
|
81175
|
81175
81170-52K01
Unit Assy, Headlamp, Lh
[05.2014 - 01.2015] NLP121,NSP120..LHD |
81170-52K01 |
— | ||
|
81175
|
81175
81170-52K01
Unit Assy, Headlamp, Lh
[01.2015 - 04.2015] NLP121,NSP120..LHD |
81170-52K01 |
— | ||
|
81193
|
81193
81193-52170 Retainer, Headlamp Protector, Upper Rh[11.2010 - 05.2014] NLP121,NSP120 |
81193-52170 |
US $9.60 |
||
|
81193B
|
81193B
81193-52160 Retainer, Headlamp Protector, Upper Rh No.2[11.2010 - 05.2014] NLP121,NSP120 |
81193-52160 |
US $11.04 |
||
|
81194
|
81194
81194-52170 Retainer, Headlamp Protector, Upper Lh[11.2010 - 05.2014] NLP121,NSP120 |
81194-52170 |
US $5.53 |
||
|
81194B
|
81194B
81194-52160 Retainer, Headlamp Protector, Upper Lh No.2[11.2010 - 05.2014] NLP121,NSP120 |
81194-52160 |
US $6.26 |
||
|
81195A
|
81195A
81195-52140 Retainer, Headlamp Protector, Lower Rh[11.2010 - 05.2014] NLP121,NSP120 |
81195-52140 |
US $10.40 |
||
|
81196A
|
81196A
81195-52140 Retainer, Headlamp Protector, Lower Rh[11.2010 - 05.2014] NLP121,NSP120 |
81195-52140 |
US $10.40 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[11.2010 - 05.2014] NLP121,NSP120 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[11.2010 - 05.2014] NLP121,NSP120 |
81515-42050 |
from US $10.56 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
