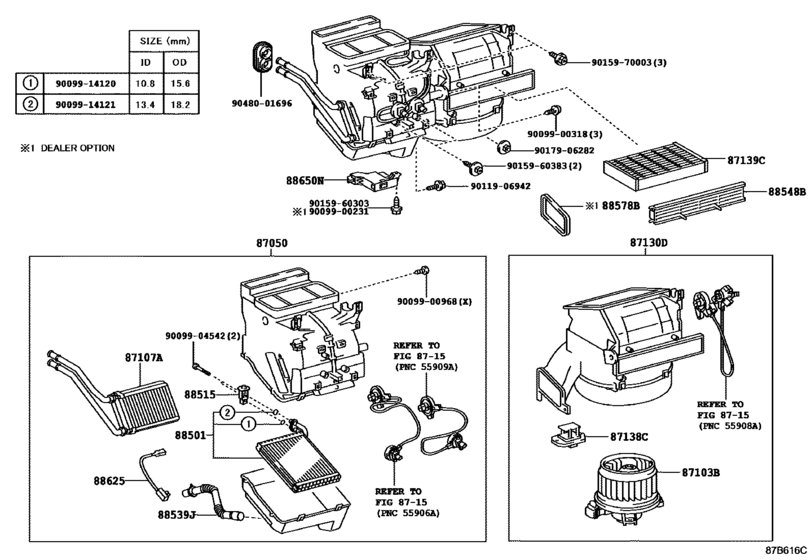

Heating & Air Conditioning - Cooler Unit ([11.2010 - ] MANUAL AIR CONDITIONER (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-52063 Radiator Assy, Air Conditioner[11.2010 - 05.2014] NLP121,NSP120..LHD |
87050-52063 |
US $748.38 |
||
|
87050
|
87050
87050-52102 Radiator Assy, Air ConditionerAIR CONDITIONER [11.2010 - 05.2014] NLP121..6F;NSP120..LHD FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
87050-52102 |
US $380.02 |
||
|
87050
|
87050
87050-52221 Radiator Assy, Air Conditioner[11.2010 - 05.2014] NLP121 COLD SPEC & WITHOUT(REAR HEATER DUCT); NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
87050-52221 |
US $988.62 |
||
|
87050
|
87050
87050-52230 Radiator Assy, Air ConditionerAIR CONDITIONER [11.2010 - 05.2014] NLP121..6F COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
87050-52230 |
US $620.26 |
||
|
87050
|
87050
87050-52250 Radiator Assy, Air Conditioner[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
87050-52250 |
US $939.12 |
||
|
87050
|
87050
87050-52260 Radiator Assy, Air Conditioner[11.2010 - 05.2014] NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO) |
87050-52260 |
US $1,131.31 |
||
|
87103B
|
87103B
87103-52141 Motor Sub-Assy, Blower W/fan[11.2010 - 05.2014] NLP121,NSP120..LHD |
87103-52141 |
US $269.63 |
||
|
87103B
|
87103B
87103-52151
Motor Sub-Assy, Blower W/fan
[11.2010 - 12.2010] NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121,NSP120..LHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
87103-52151 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-52152
Motor Sub-Assy, Blower W/fan
[11.2010 - 12.2010] NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121,NSP120..LHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
87103-52152 |
— | ||
|
87103B
|
87103B
87103-52152
Motor Sub-Assy, Blower W/fan
[01.2011 - 05.2014] NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121,NSP120..LHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
87103-52152 |
— | ||
|
87107A
|
87107A
87107-52061
Unit Sub-Assy, Heater Radiator
[11.2010 - 05.2014] NLP121,NSP120 |
87107-52061 |
— | ||
|
87130D
|
87130D
87130-52092 Blower Assy[11.2010 - 05.2014] NLP121,NSP120..LHD |
87130-52092 |
US $531.24 |
||
|
87130D
|
87130D
87130-52102
Blower Assy
[11.2010 - 05.2014] NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121,NSP120..LHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
87130-52102 |
— | ||
|
87130D
|
87130D
87130-52132
Blower Assy
[11.2010 - 05.2014] NLP121..6F COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NLP121..6F;NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NLP121 COLD SPEC & WITH(REAR HEATER DU |
87130-52132 |
— | ||
|
87138C
|
87138C
87138-52030 Resistor, Blower[11.2010 - 05.2014] NLP121,NSP120 |
87138-52030 |
US $18.90 |
||
|
87139C
|
87139C
87139-30040 Filter, Clean Air[11.2010 - 05.2012] NLP121,NSP120 POLLEN FILTER; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY),POLLEN FILTER |
87139-30040 |
from US $30.40 |
||
| replacement | |||||
|
87139C
|
87139C
87139-YZZ45 Filter, Clean Air[11.2010 - 05.2012] NLP121,NSP120 POLLEN FILTER; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY),POLLEN FILTER |
87139-YZZ45 |
US $125.66 |
||
|
87139C
|
87139C
87139-50100 Clean Air Filter (Charcoal type)[05.2012 - 05.2014] NLP121,NSP120 *DPF; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY),*DPF |
87139-50100 |
from US $60.80 |
||
|
87139C
|
87139C
87139-52020 Filter, Clean Air[11.2010 - 05.2014] NLP121,NSP120 MICRO DUST FILTER; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY),MICRO DUST FILTER |
87139-52020 |
from US $30.40 |
||
|
87139C
|
87139C
87139-52040 Filter, Clean Air[05.2014 - 04.2015] NLP121,NSP120 POLLEN FILTER |
87139-52040 |
from US $30.40 |
||
|
88501
|
88501
88501-52102
Evaporator Sub-Assy, Cooler, No.1
[11.2010 - 11.2011] NLP121,NSP120 |
88501-52102 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-52103 Evaporator Sub-Assy, Cooler, No.1[11.2010 - 11.2011] NLP121,NSP120 |
88501-52103 |
US $444.66 |
||
|
88501
|
88501
88501-52103 Evaporator Sub-Assy, Cooler, No.1[12.2011 - 05.2014] NLP121,NSP120 |
88501-52103 |
US $444.66 |
||
|
88515
|
88515
88515-68010 Valve, Cooler ExpansionCOOLER EXPANSION [11.2010 - 05.2014] NLP121,NSP120 |
88515-68010 |
from US $105.51 |
||
|
88539J
|
88539J
88539-52020
Hose, Drain Cooler
[11.2010 - 12.2010] NLP121,NSP120 |
88539-52020 |
— | ||
| replacements | |||||
|
88539J
|
88539J
88539-52030
Hose, Drain Cooler
[11.2010 - 12.2010] NLP121,NSP120 |
88539-52030 |
— | ||
|
88539J
|
88539J
88539-52040
Hose, Drain Cooler
[11.2010 - 12.2010] NLP121,NSP120 |
88539-52040 |
— | ||
|
88539J
|
88539J
88539-52040
Hose, Drain Cooler
[01.2011 - 05.2014] NLP121,NSP120..LHD |
88539-52040 |
— | ||
|
88548B
|
88548B
88548-52040 Case, Air Filter[11.2010 - 05.2014] NLP121,NSP120 |
88548-52040 |
US $14.59 |
||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[11.2010 - 05.2014] NLP121,NSP120 |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [11.2010 - 05.2014] NLP121,NSP120 |
88620-02110 |
US $10.20 |
||
|
88650N
|
88650N
88650-52680
Amplifier Assy, Air Conditioner
[11.2010 - 09.2011] NLP121,NSP120; NLP121 COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
88650-52680 |
— | ||
| replacement | |||||
|
88650N
|
88650N
88650-52880
Amplifier Assy, Air Conditioner
[11.2010 - 09.2011] NLP121,NSP120; NLP121 COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
88650-52880 |
— | ||
|
88650N
|
88650N
88650-52690
Amplifier Assy, Air Conditioner
[11.2010 - 05.2014] NLP121 COLD SPEC & WITHOUT(REAR HEATER DUCT); NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
88650-52690 |
— | ||
|
88650N
|
88650N
88650-52700
Amplifier Assy, Air Conditioner
[11.2010 - 05.2014] NLP121..6F COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
88650-52700 |
— | ||
|
88650N
|
88650N
88650-52710 Amplifier Assy, Air Conditioner[11.2010 - 05.2014] NSP120..RHD..LUNA HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..RHD..LUNA HI GRADE (WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NLP121..LUNA COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITH(A |
88650-52710 |
US $307.51 |
||
|
88650N
|
88650N
88650-52720
Amplifier Assy, Air Conditioner
[11.2010 - 05.2014] NSP120;NLP121..6F FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY); NLP121..6F COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT&AIR CONDITI ONER COMPR.-WITHOUT |
88650-52720 |
— | ||
|
88650N
|
88650N
88650-52880
Amplifier Assy, Air Conditioner
[10.2011 - 05.2014] NLP121,NSP120; NLP121 COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; NLP121,NSP120 FRONT AIR CONDITIONER-L/ UNIT (W/DIAL ONLY) |
88650-52880 |
— | ||
|
9009900231
|
9009900231
90099-00231
New Genuine Part
|
90099-00231 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904542
|
9009904542
90099-04542 Bolt(For Cooler Expansion Valve) |
90099-04542 |
from US $1.21 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048001696
|
9048001696
90480-01696
Grommet, Heater
|
90480-01696 |
— | ||
