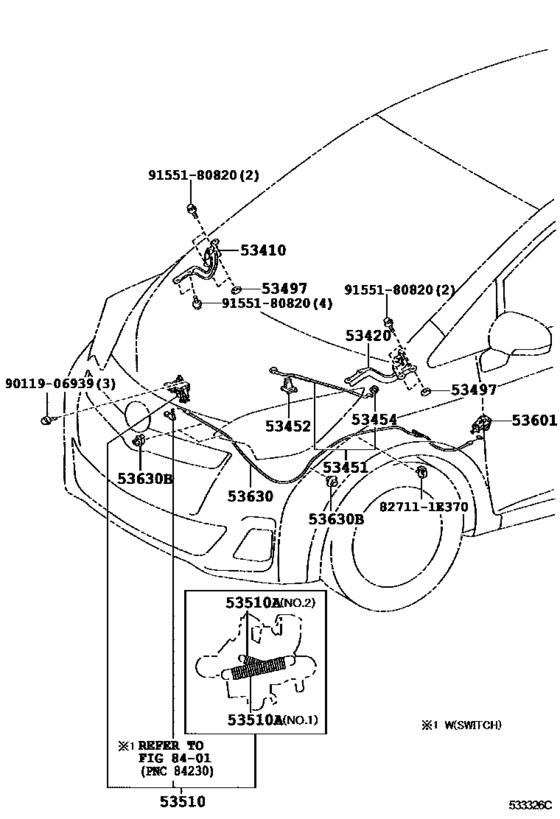

Hood Lock & Hinge ([11.2010 - ] (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-52310 Hinge Assy, Hood, Rh[11.2010 - 05.2014] NLP121,NSP120 |
53410-52310 |
US $41.04 |
||
|
53420
|
53420
53420-52320 Hinge Assy, Hood, Lh[11.2010 - 05.2014] NLP121,NSP120 |
53420-52320 |
US $41.04 |
||
|
53451
|
53451
53440-52200 Rod, Hood Support[11.2010 - 04.2013] NLP121,NSP120 |
53440-52200 |
US $15.58 |
||
| replacement | |||||
|
53451
|
53451
53440-52202 Rod, Hood Support[11.2010 - 04.2013] NLP121,NSP120 |
53440-52202 |
US $15.58 |
||
|
53451
|
53451
53440-52201 Rod, Hood Support[05.2013 - 05.2014] NLP121,NSP120 |
53440-52201 |
US $15.58 |
||
| replacement | |||||
|
53451
|
53451
53440-52202 Rod, Hood Support[05.2013 - 05.2014] NLP121,NSP120 |
53440-52202 |
US $15.58 |
||
|
53451
|
53451
53440-52202 Rod, Hood Support[03.2015 - 04.2015] NLP121,NSP120 |
53440-52202 |
US $15.58 |
||
|
53452
|
53452
53452-52020 Holder, Hood Stay[11.2010 - 05.2014] NLP121,NSP120 |
53452-52020 |
US $9.60 |
||
|
53454
|
53454
53454-12040 Clip, Hood Support RodHOOD SUPPORT ROD [11.2010 - 05.2014] NLP121,NSP120 |
53454-12040 |
from US $1.12 |
||
|
53497
|
53497
53497-20070 Pad, Hood Hinge, No.1[11.2010 - 04.2011] NLP121,NSP120 T=2.0 |
53497-20070 |
US $2.24 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[11.2010 - 04.2011] NLP121,NSP120 T=0.5 |
53497-42010 |
US $1.60 |
||
|
53510
|
53510
53510-52481
Lock Assy, Hood
[11.2010 - 05.2014] NLP121,NSP120..LHD |
53510-52481 |
— | ||
|
53510
|
53510
53510-52491
Lock Assy, Hood
[11.2010 - 05.2014] NSP120..LHD WITH(STOP & START SYSTEM) |
53510-52491 |
— | ||
|
53510A
|
53510A
90506-10047 Spring, Tension(For Hood Lock)[11.2010 - 05.2014] NLP121,NSP120..LHD WD=1.0,CW=24,NO.2 |
90506-10047 |
US $1.16 |
||
|
53510A
|
53510A
90506-16080 Spring, Tension(For Hood Lock)[11.2010 - 05.2014] NLP121,NSP120 WD=1.6,CW=13,NO.1 |
90506-16080 |
US $1.92 |
||
|
53601
|
53601
53601-52010-C0
Lever Sub-Assy, Hood Lock Control
[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
53601-52010-C0 |
— | ||
| replacement | |||||
|
53601
|
53601
53601-52010-C1 Lever Sub-Assy, Hood Lock Control[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
53601-52010-C1 |
from US $21.43 |
||
|
53630
|
53630
53630-52120 Cable Assy, Hood Lock Control[11.2010 - 05.2014] NLP121,NSP120 |
53630-52120 |
US $17.30 |
||
|
53630B
|
53630B
90469-06005 Clamp(For Hood Lock Control Cable)[11.2010 - 05.2014] NLP121,NSP120 |
90469-06005 |
from US $1.28 |
||
|
827111E370
|
827111E370
82711-1E370 Clamp, Hood Lock Control Cable |
82711-1E370 |
US $1.92 |
||
|
9011906939
|
9011906939
90119-06939 Bolt, Hood Lock |
90119-06939 |
US $0.96 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
