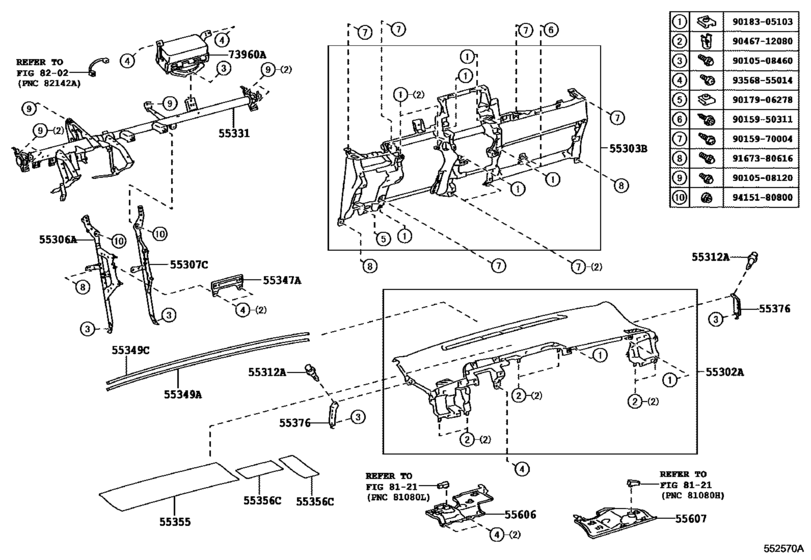

Instrument Panel & Glove Compartment ([11.2010 - ] (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-52110-C0 Panel Sub-Assy, Instrument, Upper[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55302-52110-C0 |
US $278.10 |
||
|
55303B
|
55303B
55303-52200-C0 Panel Sub-Assy, Instrument, Lower[11.2010 - 10.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52200-C0 |
US $260.62 |
||
| replacement | |||||
|
55303B
|
55303B
55303-52203-C0 Panel Sub-Assy, Instrument, Lower[11.2010 - 10.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52203-C0 |
US $216.94 |
||
|
55303B
|
55303B
55303-52201-C0 Panel Sub-Assy, Instrument, Lower[11.2011 - 08.2012] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52201-C0 |
US $216.94 |
||
| replacement | |||||
|
55303B
|
55303B
55303-52203-C0 Panel Sub-Assy, Instrument, Lower[11.2011 - 08.2012] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52203-C0 |
US $216.94 |
||
|
55303B
|
55303B
55303-52202-C0 Panel Sub-Assy, Instrument, Lower[08.2013 - 12.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52202-C0 |
US $216.94 |
||
| replacement | |||||
|
55303B
|
55303B
55303-52203-C0 Panel Sub-Assy, Instrument, Lower[08.2013 - 12.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52203-C0 |
US $216.94 |
||
|
55303B
|
55303B
55303-52203-C0 Panel Sub-Assy, Instrument, Lower[01.2014 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55303-52203-C0 |
US $216.94 |
||
|
55306A
|
55306A
55306-52220 Brace Sub-Assy, Instrument Panel, No.1[11.2010 - 05.2014] NLP121,NSP120..LHD |
55306-52220 |
US $37.42 |
||
|
55307C
|
55307C
55307-52040 Brace Sub-Assy, Instrument Panel, No.2[11.2010 - 05.2014] NLP121,NSP120..LHD |
55307-52040 |
US $37.42 |
||
|
55312A
|
55312A
52161-16010 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
55312A
|
55312A
52161-0K040 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-0K040 |
from US $1.50 |
||
|
55312A
|
55312A
52161-02020 Clip[11.2010 - 05.2014] NLP121,NSP120 |
52161-02020 |
US $5.27 |
||
|
55331
|
55331
55330-52561 Reinforcement, Instrument Panel[11.2010 - 05.2014] NLP121,NSP120..LHD |
55330-52561 |
US $179.09 |
||
|
55347A
|
55347A
55347-52090 Bracket, Instrument Panel Brace Mounting, No.1[11.2010 - 05.2014] NLP121,NSP120 |
55347-52090 |
US $9.90 |
||
|
55349A
|
55349A
55349-52060 Cushion, Instrument Panel[11.2010 - 05.2014] NLP121,NSP120 |
55349-52060 |
US $7.43 |
||
|
55349C
|
55349C
55349-52060 Cushion, Instrument Panel[11.2010 - 05.2014] NLP121,NSP120 |
55349-52060 |
US $7.43 |
||
|
55355
|
55355
55355-52120 Cushion, Instrument Panel, No.1[11.2010 - 05.2014] NLP121,NSP120 |
55355-52120 |
US $11.21 |
||
|
55356C
|
55356C
55356-52180 Cushion, Instrument Panel, No.2[11.2010 - 05.2014] NLP121,NSP120 |
55356-52180 |
US $2.91 |
||
|
55376
|
55376
55376-52100 Bracket, Instrument Panel Mounting, No.1[11.2010 - 05.2014] NLP121,NSP120 |
55376-52100 |
US $3.93 |
||
|
55606
|
55606
55606-52050 Cover Sub-Assy, Instrument Panel Under, No.1[11.2010 - 05.2014] NLP121,NSP120..LHD |
55606-52050 |
US $40.33 |
||
|
55607
|
55607
55607-52050
Cover Sub-Assy, Instrument Panel Under, No.2
[11.2010 - 05.2014] NLP121,NSP120..LHD |
55607-52050 |
— | ||
|
73960A
|
73960A
73960-52140 Air Bag Assy, Instrument Panel Passenger W/o Door[11.2010 - 01.2013] NLP121,NSP120 |
73960-52140 |
US $1,345.34 |
||
| replacement | |||||
|
73960A
|
73960A
73960-52141 Air Bag Assy, Instrument Panel Passenger W/o Door[11.2010 - 01.2013] NLP121,NSP120 |
73960-52141 |
US $1,121.12 |
||
|
73960A
|
73960A
73960-52141 Air Bag Assy, Instrument Panel Passenger W/o Door[02.2013 - 05.2014] NLP121,NSP120 |
73960-52141 |
US $1,121.12 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.44 |
||
|
9010508460
|
9010508460
90105-08460 New Genuine Part |
90105-08460 |
US $1.02 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.74 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.60 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
