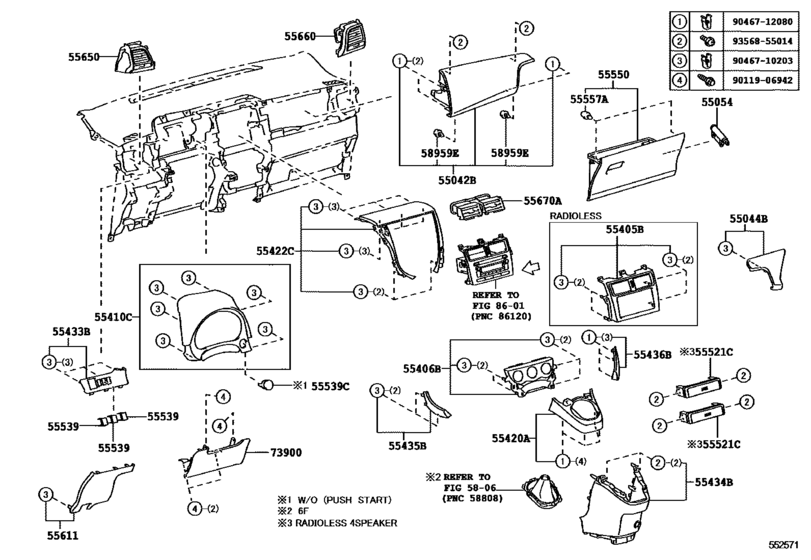

Instrument Panel & Glove Compartment ([11.2010 - ] (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55042B
|
55042B
55042-52060-A0 Door Sub-Assy, Instrument Panel Box, No.2[11.2010 - 05.2014] NLP121..6FS BEIGE,TRIM4#; NLP121..6F..LUNA;NSP120..LHD..LUNA BEIGE,TRIM40 |
55042-52060-A0 |
US $253.34 |
||
|
55042B
|
55042B
55042-52060-C0 Door Sub-Assy, Instrument Panel Box, No.2[11.2010 - 05.2014] NLP121..6FS BLACK,TRIM1#,2#; NLP121..6F..LUNA;NSP120..LHD..LUNA BLACK,TRIM1#,2#,44; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55042-52060-C0 |
US $253.34 |
||
|
55044B
|
55044B
55044-52010-A0 Panel Sub-Assy, Instrument Panel Finish, Upper[11.2010 - 05.2014] NLP121..6FS BEIGE,TRIM4#; NLP121..6F..LUNA;NSP120..LHD..LUNA BEIGE,TRIM40 |
55044-52010-A0 |
US $48.34 |
||
|
55044B
|
55044B
55044-52010-C0 Panel Sub-Assy, Instrument Panel Finish, Upper[11.2010 - 05.2014] NLP121..6FS BLACK,TRIM1#,2#; NLP121..6F..LUNA;NSP120..LHD..LUNA BLACK,TRIM1#,2#,44; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55044-52010-C0 |
US $48.34 |
||
|
55054
|
55054
55054-52020 Stopper Sub-Assy, Glove Compartment Door[11.2010 - 05.2014] NLP121,NSP120 |
55054-52020 |
US $10.56 |
||
|
55405B
|
55405B
55405-52830 Panel Sub-Assy, Instrument Cluster Finish, Center[11.2010 - 05.2014] NSP120..LHD..CVT;NLP121,NSP120..TERRA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 4SPEAKER; NSP120..CVT;NLP121,NSP120..LHD..6F..LUNA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
55405-52830 |
US $51.84 |
||
|
55405B
|
55405B
55405-52C00 Panel Sub-Assy, Instrument Cluster Finish, Center[05.2014 - 04.2015] NSP120..RHD..CVT HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS MARKET )-RADIO LESS(WITH 6SPEAKER)COLOR:BLACK; NSP120..RHD..CVT HI GRADE(WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO)&AUDIO(FOR OVERSEAS |
55405-52C00 |
US $60.28 |
||
|
55406B
|
55406B
55406-52310 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[11.2010 - 05.2014] NLP121,NSP120; NLP121,NSP120..LUNA FRONT AIR CONDITIONER-WITH(AUTO) |
55406-52310 |
US $40.33 |
||
|
55406B
|
55406B
55406-52430 Panel Sub-Assy, Instrument Cluster Finish, Lower Center[05.2014 - 04.2015] NSP120..RHD..LUNA; NSP120..RHD..CVT HI GRADE(WITH/PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..RHD..CVT HI GRADE(WITHOUT PANORAMA)&FRONT AIR CONDITIONER-WITH(AUTO); NSP120..RHD..LUNA FRONT AIR CONDITIONER-WITH(AUTO); NLP121..LUN |
55406-52430 |
US $40.33 |
||
|
55410C
|
55410C
55410-52160-C0 Panel Assy, Instrument Cluster Finish[11.2010 - 11.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55410-52160-C0 |
US $87.36 |
||
|
55410C
|
55410C
55410-52240-C0 Panel Assy, Instrument Cluster Finish[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55410-52240-C0 |
US $80.08 |
||
| replacement | |||||
|
55410C
|
55410C
55410-52160-C0 Panel Assy, Instrument Cluster Finish[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55410-52160-C0 |
US $87.36 |
||
|
55410C
|
55410C
55410-52300-C0
Panel Assy, Instrument Cluster Finish
[05.2014 - 04.2015] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55410-52300-C0 |
— | ||
|
55420A
|
55420A
55420-52070-C0 Panel Assy, Instrument Cluster Finish, Center[11.2010 - 10.2013] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
55420-52070-C0 |
US $36.40 |
||
|
55420A
|
55420A
55420-52100-C0 Panel Assy, Instrument Cluster Finish, Center[10.2013 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
55420-52100-C0 |
US $36.40 |
||
|
55422C
|
55422C
55416-52020-C0 Panel, Instrument Cluster Finish, Center Upper[11.2010 - 11.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52020-C0 |
US $68.72 |
||
|
55422C
|
55422C
55416-52070-C0 Panel, Instrument Cluster Finish, Center Upper[11.2011 - 10.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52070-C0 |
US $71.93 |
||
| replacement | |||||
|
55422C
|
55422C
55416-52900-C0 Panel, Instrument Cluster Finish, Center Upper[11.2011 - 10.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52900-C0 |
US $57.22 |
||
|
55422C
|
55422C
55416-52120-C0 Panel, Instrument Cluster Finish, Center Upper[10.2013 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52120-C0 |
US $87.36 |
||
| replacement | |||||
|
55422C
|
55422C
55416-52900-C0 Panel, Instrument Cluster Finish, Center Upper[10.2013 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52900-C0 |
US $57.22 |
||
|
55422C
|
55422C
55416-52190-C0
Panel, Instrument Cluster Finish, Center Upper
[05.2014 - 04.2015] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55416-52190-C0 |
— | ||
|
55433B
|
55433B
55433-52080-C0 Panel, Instrument Panel Finish, Lower No.2[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55433-52080-C0 |
US $29.12 |
||
|
55434B
|
55434B
55434-52180-C0 Panel, Instrument Panel Finish, Lower Center[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
55434-52180-C0 |
US $87.36 |
||
|
55435B
|
55435B
55435-52050-C0 Cluster, Meter Hood, No.1[11.2010 - 11.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55435-52050-C0 |
US $26.21 |
||
|
55435B
|
55435B
55435-52070-C0 Cluster, Meter Hood, No.1[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55435-52070-C0 |
US $24.32 |
||
| replacement | |||||
|
55435B
|
55435B
55435-52050-C0 Cluster, Meter Hood, No.1[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55435-52050-C0 |
US $26.21 |
||
|
55435B
|
55435B
55435-52120-C0
Cluster, Meter Hood, No.1
[05.2014 - 04.2015] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55435-52120-C0 |
— | ||
|
55436B
|
55436B
55436-52040-C0 Cluster, Meter Hood, No.2[11.2010 - 11.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55436-52040-C0 |
US $26.21 |
||
|
55436B
|
55436B
55436-52060-C0 Cluster, Meter Hood, No.2[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55436-52060-C0 |
US $24.32 |
||
| replacement | |||||
|
55436B
|
55436B
55436-52040-C0 Cluster, Meter Hood, No.2[11.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55436-52040-C0 |
US $26.21 |
||
|
55436B
|
55436B
55436-52110-C0
Cluster, Meter Hood, No.2
[05.2014 - 04.2015] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55436-52110-C0 |
— | ||
|
55521C
|
55521C
55521-20150 Cover, Stereo Opening[11.2010 - 05.2014] NSP120..LHD..CVT;NLP121,NSP120..TERRA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 4SPEAKER; NSP120..CVT;NLP121,NSP120..LHD..6F..LUNA AUDIO(FOR OVERSEAS MARKET)-RADIOLESS 6SPEAKER |
55521-20150 |
US $24.16 |
||
|
55539
|
55539
55539-28160-C0 Cover, Spare Switch Hole[11.2010 - 04.2013] NLP121,NSP120 BLACK; NLP121 COLD SPEC & WITH(REAR HEATER DUCT),BLACK |
55539-28160-C0 |
US $7.20 |
||
|
55539
|
55539
55539-52060-C0 Cover, Spare Switch Hole[04.2013 - 05.2014] NSP120..RHD BLACK; NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2#; NLP121..TERRA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2#; NLP121..LUNA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2#,4#; NLP121 |
55539-52060-C0 |
from US $3.53 |
||
|
55539C
|
55539C
55539-52040-C0 Cover, Spare Switch Hole[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2#; NLP121,NSP120..LUNA WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK,TRIM2#,4# |
55539-52040-C0 |
US $4.08 |
||
|
55550
|
55550
55550-52240-C0 Door Assy, Glove Compartment[11.2010 - 04.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55550-52240-C0 |
US $196.56 |
||
| replacement | |||||
|
55550
|
55550
55550-52241-C0 Door Assy, Glove Compartment[11.2010 - 04.2011] NLP121,NSP120..LHD..LUNA BLACK,TRIM2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55550-52241-C0 |
US $163.07 |
||
|
55550
|
55550
55550-52241-C0 Door Assy, Glove Compartment[05.2011 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55550-52241-C0 |
US $163.07 |
||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [11.2010 - 05.2014] NLP121,NSP120 |
55557-60050 |
from US $0.82 |
||
|
55611
|
55611
55611-52180-C0 Tray, Instrument Panel Under[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
55611-52180-C0 |
US $28.10 |
||
|
55650
|
55650
55650-52240-C0 Register Assy, Instrument Panel, No.1[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
55650-52240-C0 |
US $93.18 |
||
|
55660
|
55660
55660-52040-C0 Register Assy, Instrument Panel, No.2[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4# |
55660-52040-C0 |
US $93.18 |
||
|
55670A
|
55670A
55670-52060 Register Assy, Instrument Panel, Center[11.2010 - 05.2014] NLP121,NSP120 |
55670-52060 |
US $87.36 |
||
|
58959E
|
58959E
58959-60060 Cushion, Instrument Panel[11.2010 - 05.2014] NLP121,NSP120 |
58959-60060 |
from US $1.27 |
||
|
73900
|
73900
73900-52050-C0 Air Bag Assy, Instrument Panel, Lower No.1[11.2010 - 01.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
73900-52050-C0 |
US $419.33 |
||
| replacement | |||||
|
73900
|
73900
73900-52051-C0 Air Bag Assy, Instrument Panel, Lower No.1[11.2010 - 01.2013] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
73900-52051-C0 |
US $349.44 |
||
|
73900
|
73900
73900-52051-C0 Air Bag Assy, Instrument Panel, Lower No.1[02.2013 - 05.2014] NLP121,NSP120..LHD..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..LHD..TERRA BLACK,TRIM2# |
73900-52051-C0 |
US $349.44 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
