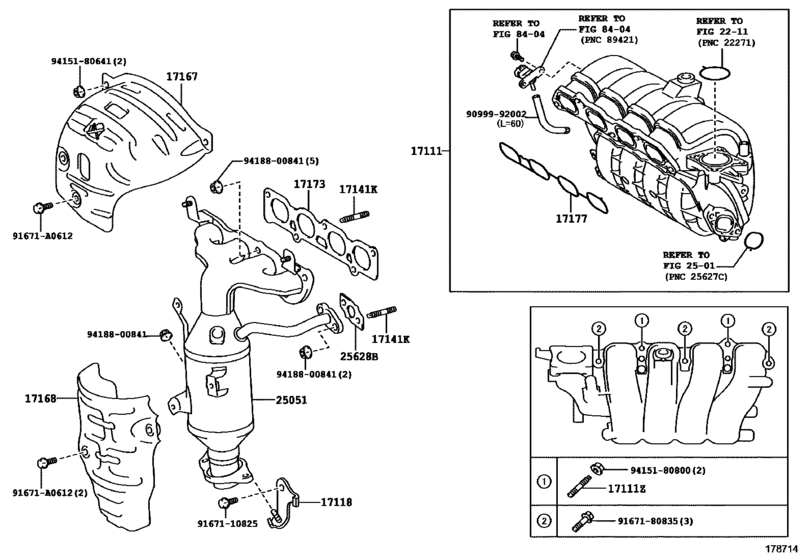

Manifold ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-47031
Manifold, Intake
[11.2010 - 11.2011] 1NRFE..NSP120 |
17120-47031 |
— | ||
| replacement | |||||
|
17111
|
17111
17120-47032
Manifold, Intake
[11.2010 - 11.2011] 1NRFE..NSP120 |
17120-47032 |
— | ||
|
17111
|
17111
17120-47032
Manifold, Intake
[11.2011 - 05.2014] 1NRFE..NSP120 |
17120-47032 |
— | ||
|
17111Z
|
17111Z
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) [11.2010 - 05.2014] 1NRFE..NSP120 |
90126-08060 |
US $2.77 |
||
|
17118
|
17118
17118-47010 Stay, ManifoldMANIFOLD [11.2010 - 05.2014] 1NRFE..NSP120 |
17118-47010 |
US $11.94 |
||
| replacement | |||||
|
17118
|
17118
17118-47011 Stay, Manifold[11.2010 - 05.2014] 1NRFE..NSP120 |
17118-47011 |
US $14.24 |
||
|
17141K
|
17141K
90126-08063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) [11.2010 - 05.2014] 1NRFE..NSP120 |
90126-08063 |
US $1.28 |
||
|
17167
|
17167
17167-47011 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [11.2010 - 05.2014] 1NRFE..NSP120 |
17167-47011 |
US $54.72 |
||
|
17168
|
17168
17168-47030 Insulator, Exhaust Manifold Heat, No.2[11.2010 - 05.2014] 1NRFE..NSP120 |
17168-47030 |
US $44.70 |
||
|
17173
|
17173
17173-47021 Gasket, Exhaust Manifold To Head[11.2010 - 05.2014] 1NRFE..NSP120 |
17173-47021 |
US $12.48 |
||
|
17177
|
17177
17177-47010
Gasket, Intake Manifold To Head, No.1
[11.2010 - 11.2011] 1NRFE..NSP120 |
17177-47010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-47011 Gasket, Intake Manifold To Head, No.1[11.2010 - 11.2011] 1NRFE..NSP120 |
17177-47011 |
US $8.91 |
||
|
17177
|
17177
17177-47011 Gasket, Intake Manifold To Head, No.1[11.2011 - 05.2014] 1NRFE..NSP120 |
17177-47011 |
US $8.91 |
||
|
25051
|
25051
25051-47070 Converter Sub-Assy, Exhaust Manifold[11.2010 - 05.2014] 1NRFE..NSP120 *114=TOYOTA/47070/Y |
25051-47070 |
US $572.21 |
||
|
25628B
|
25628B
25628-47010 Gasket, Egr InletEGR INLET [11.2010 - 05.2014] 1NRFE..NSP120 |
25628-47010 |
US $0.80 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9167110825
|
9167110825
91671-10825 BOLT, FLANGE |
91671-10825 |
US $1.28 |
||
|
9167180835
|
9167180835
91671-80835 Bolt, Compressor, No.1 |
91671-80835 |
US $1.60 |
||
|
9415180641
|
9415180641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.96 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9418800841
|
9418800841
94188-00841 NUT LOCK |
94188-00841 |
from US $0.90 |
||
