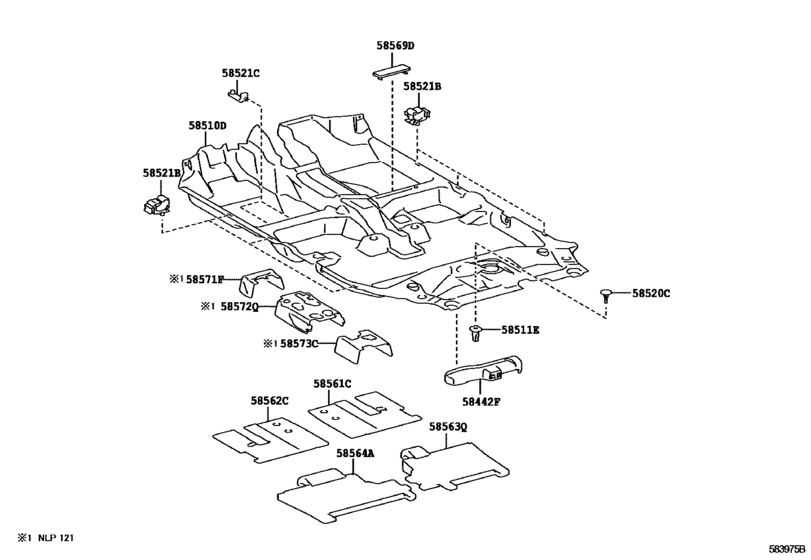

Mat & Carpet ([11.2010 - ] (1011- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58442F
|
58442F
58442-52060 Cover, Jack[11.2010 - 05.2014] NLP121,NSP120 |
58442-52060 |
US $24.36 |
||
|
58510D
|
58510D
58510-52G10-B1 Carpet Assy, Floor, Front[11.2010 - 07.2011] NSP120..LHD..LUNA BLACK,TRIM2#,4#; NSP120..LHD..TERRA BLACK,TRIM2# |
58510-52G10-B1 |
US $580.94 |
||
| replacement | |||||
|
58510D
|
58510D
58510-52G11-B1 Carpet Assy, Floor, Front[11.2010 - 07.2011] NSP120..LHD..LUNA BLACK,TRIM2#,4#; NSP120..LHD..TERRA BLACK,TRIM2# |
58510-52G11-B1 |
US $483.39 |
||
|
58510D
|
58510D
58510-52G11-B1 Carpet Assy, Floor, Front[08.2011 - 05.2014] NSP120..LHD..LUNA DK.GRAY,TRIM1#,2#,4#; NSP120..LHD..TERRA DK.GRAY,TRIM2# |
58510-52G11-B1 |
US $483.39 |
||
|
58510D
|
58510D
58510-52G20-B1 Carpet Assy, Floor, Front[11.2010 - 07.2011] NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2#,4#; NSP120..LHD..TERRA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2# |
58510-52G20-B1 |
US $576.58 |
||
| replacement | |||||
|
58510D
|
58510D
58510-52G21-B1 Carpet Assy, Floor, Front[11.2010 - 07.2011] NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2#,4#; NSP120..LHD..TERRA COLD SPEC & WITH(REAR HEATER DUCT),BLACK,TRIM2# |
58510-52G21-B1 |
US $480.48 |
||
|
58510D
|
58510D
58510-52G21-B1 Carpet Assy, Floor, Front[08.2011 - 05.2014] NSP120..LHD..LUNA COLD SPEC & WITH(REAR HEATER DUCT),DK.GRAY,TRIM1#,2#,4#; NSP120..LHD..TERRA COLD SPEC & WITH(REAR HEATER DUCT),DK.GRAY,TRIM2# |
58510-52G21-B1 |
US $480.48 |
||
|
58511E
|
58511E
90467-10023 Clip(For Front Floor Mat)[11.2010 - 05.2014] NLP121,NSP120 |
90467-10023 |
US $1.12 |
||
|
58520C
|
58520C
90467-07115-C0 Clip(For Front Floor Carpet)[11.2010 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
90467-07115-C0 |
US $1.16 |
||
|
58521B
|
58521B
58521-52040 Hook, Floor Carpet[11.2010 - 05.2014] NLP121,NSP120 |
58521-52040 |
US $5.59 |
||
|
58521C
|
58521C
58522-52030 Hook, Floor Carpet No.2[11.2010 - 05.2014] NLP121,NSP120 |
58522-52030 |
US $6.08 |
||
|
58561C
|
58561C
58561-52160 Silencer, Front Floor, No.1[11.2010 - 05.2014] NLP121,NSP120 |
58561-52160 |
US $26.79 |
||
|
58562C
|
58562C
58562-52130 Silencer, Front Floor, No.2[11.2010 - 05.2014] NLP121,NSP120 |
58562-52130 |
US $26.79 |
||
|
58563Q
|
58563Q
58563-52180 Silencer, Front Floor, No.3[11.2010 - 05.2014] NLP121,NSP120 |
58563-52180 |
US $49.07 |
||
|
58564A
|
58564A
58564-52180 Silencer, Front Floor, No.4[11.2010 - 05.2014] NLP121,NSP120 |
58564-52180 |
US $49.65 |
||
|
58569D
|
58569D
58569-52020-C0 Cover, Front Floor Caution Plate[11.2010 - 05.2013] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
58569-52020-C0 |
US $13.54 |
||
| replacement | |||||
|
58569D
|
58569D
58569-52021-C0 Cover, Front Floor Caution Plate[11.2010 - 05.2013] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
58569-52021-C0 |
US $18.54 |
||
|
58569D
|
58569D
58569-52021-C0 Cover, Front Floor Caution Plate[06.2013 - 05.2014] NLP121,NSP120..LUNA BLACK,TRIM1#,2#,4#; NLP121,NSP120..TERRA BLACK,TRIM2# |
58569-52021-C0 |
US $18.54 |
||
