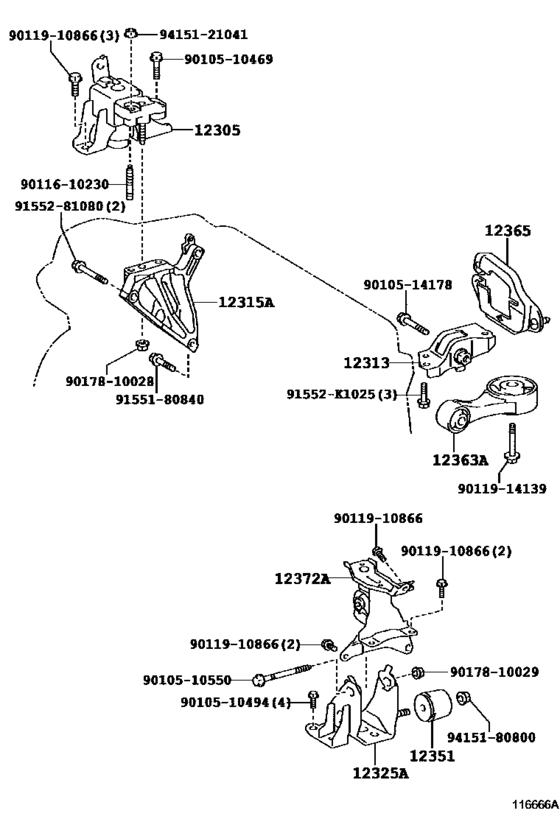

Mounting ([11.2010 - ] (1011- )1NRFE..6F) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-47070 Insulator Sub-Assy, Engine Mounting, Rh[11.2010 - 02.2013] 1NRFE..NSP120 |
12305-47070 |
US $160.16 |
||
| replacement | |||||
|
12305
|
12305
12305-47071 Insulator Sub-Assy, Engine Mounting, Rh[11.2010 - 02.2013] 1NRFE..NSP120 |
12305-47071 |
US $131.72 |
||
|
12305
|
12305
12305-47071 Insulator Sub-Assy, Engine Mounting, Rh[03.2013 - 05.2014] 1NRFE..NSP120 |
12305-47071 |
US $131.72 |
||
|
12313
|
12313
12313-47010 Bracket, Engine Mounting Control(For Transverse Engine)ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) [11.2010 - 05.2014] 1NRFE..NSP120..6F |
12313-47010 |
US $21.40 |
||
|
12315A
|
12315A
12315-47040 Bracket, Engine Mounting, Rh(For Transverse Engine)ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) [11.2010 - 05.2014] 1NRFE..NSP120 |
12315-47040 |
US $56.26 |
||
|
12325A
|
12325A
12325-47090 Bracket, Engine Mounting, Lh(For Transverse Engine)[11.2010 - 05.2014] 1NRFE..NSP120..6F |
12325-47090 |
US $35.53 |
||
|
12351
|
12351
12351-47020 Damper, Engine Mounting[11.2010 - 05.2014] 1NRFE..NSP120..6F |
12351-47020 |
US $33.63 |
||
|
12363A
|
12363A
12363-47030 Rod, Engine Moving ControlENGINE MOVING CONTROL [11.2010 - 05.2014] 1NRFE..NSP120..6F |
12363-47030 |
US $77.17 |
||
|
12365
|
12365
12365-40010 Cover, Engine Moving Control Rod[11.2010 - 05.2014] 1N#..NLP121,NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1N#..NLP121,NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
12365-40010 |
US $10.56 |
||
|
12372A
|
12372A
12372-47080 Insulator, Engine Mounting, Lh(For Transverse Engine)[11.2010 - 05.2014] 1NRFE..NSP120..6F |
12372-47080 |
US $84.45 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
9010510469
|
9010510469
90105-10469 Bolt (For Rear Axle Bearing Case Rh) |
90105-10469 |
from US $1.92 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010514178
|
9010514178
90105-14178 Bolt |
90105-14178 |
US $4.96 |
||
|
9011610230
|
9011610230
90116-10230 New Genuine Part |
90116-10230 |
US $3.04 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9011914139
|
9011914139
90119-14139 New Genuine Part |
90119-14139 |
US $5.76 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
US $1.60 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
from US $1.23 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.56 |
||
|
9415121041
|
9415121041
94151-21041 NUT FLANGE |
94151-21041 |
from US $0.99 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
