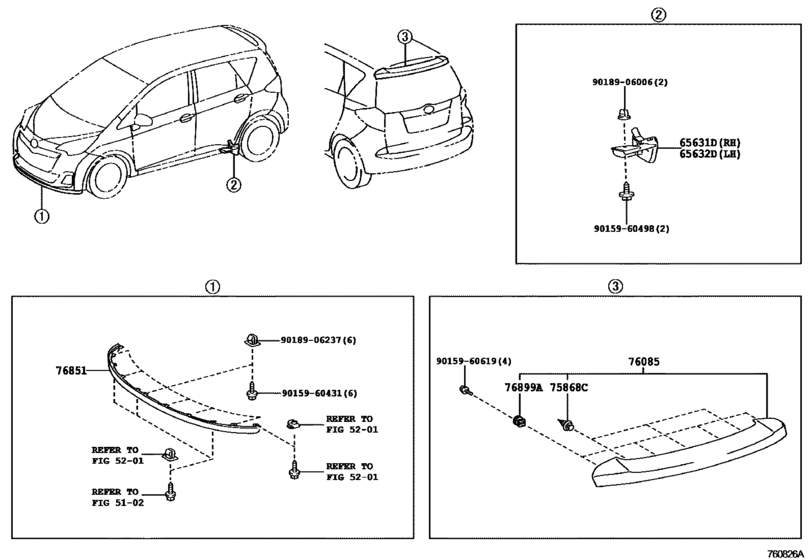

Mudguard & Spoiler ([08.2012 - ] (1208- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65631D
|
65631D
65631-52060 Plate, Rear Wheel House, Front Rh[11.2010 - 05.2014] NLP121,NSP120 |
65631-52060 |
US $29.94 |
||
|
65632D
|
65632D
65632-52070 Plate, Rear Wheel House, Front Lh[11.2010 - 05.2014] NLP121,NSP120 |
65632-52070 |
US $45.60 |
||
|
75868C
|
75868C
75868-60020 Clip, Rocker Panel Moulding[08.2012 - 05.2014] NLP121,NSP120 |
75868-60020 |
from US $3.36 |
||
|
75868C
|
75868C
90467-09239 Clip, Rear Spoiler, No.2[07.2011 - 08.2012] NLP121,NSP120 |
90467-09239 |
US $1.44 |
||
|
76085
|
76085
76085-52170-A0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SUPER WHITE 2,040 |
76085-52170-A0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-A0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SUPER WHITE 2,040 |
76085-52171-A0 |
US $355.01 |
||
|
76085
|
76085
76085-52170-A1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 WHITE PEARL CS.,070 |
76085-52170-A1 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-A1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 WHITE PEARL CS.,070 |
76085-52171-A1 |
US $355.01 |
||
|
76085
|
76085
76085-52170-B0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SILVER ME.,1F7 |
76085-52170-B0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-B0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SILVER ME.,1F7 |
76085-52171-B0 |
US $355.01 |
||
|
76085
|
76085
76085-52170-B1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 GRAY ME.,1G3 |
76085-52170-B1 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-B1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 GRAY ME.,1G3 |
76085-52171-B1 |
US $355.01 |
||
|
76085
|
76085
76085-52170-C0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 BLACK MC.,209 |
76085-52170-C0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-C0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 BLACK MC.,209 |
76085-52171-C0 |
US $355.01 |
||
|
76085
|
76085
76085-52170-D0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SUPER RED 5,3P0 |
76085-52170-D0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-D0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SUPER RED 5,3P0 |
76085-52171-D0 |
US $355.01 |
||
|
76085
|
76085
76085-52170-J0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 LT.BLUE M.M.,8S7 |
76085-52170-J0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-J0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 LT.BLUE M.M.,8S7 |
76085-52171-J0 |
US $355.01 |
||
|
76085
|
76085
76085-52170-J1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SATIN BLUE M.M.,8V9 |
76085-52170-J1 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-J1 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 SATIN BLUE M.M.,8V9 |
76085-52171-J1 |
US $355.01 |
||
|
76085
|
76085
76085-52170-K0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 DEEP AMETHYST M.M.,9AH |
76085-52170-K0 |
US $313.04 |
||
| replacement | |||||
|
76085
|
76085
76085-52171-K0 Spoiler Sub-Assy, Rear[11.2010 - 06.2011] NLP121,NSP120 DEEP AMETHYST M.M.,9AH |
76085-52171-K0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-A0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 SUPER WHITE 2,040 |
76085-52171-A0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-A1 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 WHITE PEARL CS.,070 |
76085-52171-A1 |
US $355.01 |
||
|
76085
|
76085
76085-52171-B0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 SILVER ME.,1F7 |
76085-52171-B0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-B1 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 GRAY ME.,1G3 |
76085-52171-B1 |
US $355.01 |
||
|
76085
|
76085
76085-52171-C0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 BLACK MC.,209 |
76085-52171-C0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-D0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 SUPER RED 5,3P0 |
76085-52171-D0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-J0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 LT.BLUE M.M.,8S7 |
76085-52171-J0 |
US $355.01 |
||
|
76085
|
76085
76085-52171-J1 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 SATIN BLUE M.M.,8V9 |
76085-52171-J1 |
US $355.01 |
||
|
76085
|
76085
76085-52171-K0 Spoiler Sub-Assy, Rear[07.2011 - 08.2012] NLP121,NSP120 DEEP AMETHYST M.M.,9AH |
76085-52171-K0 |
US $355.01 |
||
|
76085
|
76085
76085-52172-A0
Spoiler Sub-Assy, Rear
[08.2012 - 05.2014] NLP121,NSP120 SUPER WHITE 2,040 |
76085-52172-A0 |
— | ||
|
76085
|
76085
76085-52172-A1 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 WHITE PEARL CS.,070 |
76085-52172-A1 |
US $260.62 |
||
|
76085
|
76085
76085-52172-B0 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 SILVER ME.,1F7 |
76085-52172-B0 |
US $260.62 |
||
|
76085
|
76085
76085-52172-B1 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 GRAY ME.,1G3 |
76085-52172-B1 |
US $260.62 |
||
|
76085
|
76085
76085-52172-C0 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 BLACK MC.,209 |
76085-52172-C0 |
US $260.62 |
||
|
76085
|
76085
76085-52172-D0 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 SUPER RED 5,3P0 |
76085-52172-D0 |
US $260.62 |
||
|
76085
|
76085
76085-52172-E1 Spoiler Sub-Assy, Rear[05.2014 - 04.2015] NLP121,NSP120 BRONZE M.M.,4T3 |
76085-52172-E1 |
US $260.62 |
||
|
76085
|
76085
76085-52172-J0 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 LT.BLUE M.M.,8S7 |
76085-52172-J0 |
US $260.62 |
||
|
76085
|
76085
76085-52172-J1 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 SATIN BLUE M.M.,8V9 |
76085-52172-J1 |
US $260.62 |
||
|
76085
|
76085
76085-52172-J2
Spoiler Sub-Assy, Rear
[12.2012 - 05.2014] NLP121,NSP120 GRAYISH BLUE ME.,8R3 |
76085-52172-J2 |
— | ||
|
76085
|
76085
76085-52172-K0 Spoiler Sub-Assy, Rear[08.2012 - 05.2014] NLP121,NSP120 DEEP AMETHYST M.M.,9AH |
76085-52172-K0 |
US $260.62 |
||
|
76851
|
76851
76851-52190 Cover, Front Spoiler[11.2010 - 05.2014] NLP121,NSP120; NSP120..LHD RUSSIA SPEC |
76851-52190 |
US $115.02 |
||
|
76899A
|
76899A
76899-60010 Nut, Rear SpoilerREAR SPOILER [11.2010 - 08.2012] NLP121,NSP120 |
76899-60010 |
US $13.12 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960498
|
9015960498
90159-60498 SCREW W-WASHER |
90159-60498 |
from US $0.72 |
||
|
9015960619
|
9015960619
90159-60619 SCREW WWASHER |
90159-60619 |
from US $1.44 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906237
|
9018906237
90189-06237 Grommet(For Engine Under Cover) |
90189-06237 |
from US $0.62 |
||
