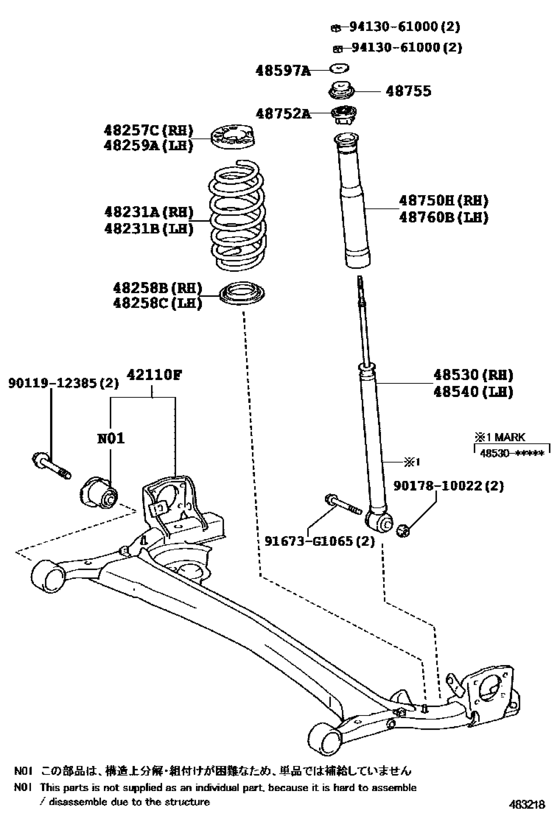

Rear Spring & Shock Absorber ([11.2010 - ] (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42110-52332 Beam Assy, Rear Axle[11.2010 - 05.2014] NSP120;NLP121..6F |
42110-52332 |
US $886.20 |
||
|
42110F
|
42110F
42110-52341
Beam Assy, Rear Axle
[11.2010 - 05.2014] NLP121..6F;NSP120..LHD REAR WHEEL BRAKE-DISK(BUILT-IN) |
42110-52341 |
— | ||
| replacement | |||||
|
42110F
|
42110F
42110-52431 Housing Assy, Rear Axle[11.2010 - 05.2014] NLP121..6F;NSP120..LHD REAR WHEEL BRAKE-DISK(BUILT-IN) |
42110-52431 |
US $886.20 |
||
|
42110F
|
42110F
42110-52352 Beam Assy, Rear Axle[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
42110-52352 |
US $609.57 |
||
| replacement | |||||
|
42110F
|
42110F
42110-52332 Beam Assy, Rear Axle[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
42110-52332 |
US $886.20 |
||
|
48231A
|
48231A
48231-52E30 Spring, Coil, Rear Rh[11.2010 - 05.2014] NLP121,NSP120 |
48231-52E30 |
US $78.62 |
||
|
48231A
|
48231A
48231-52E50
Spring, Coil, Rear Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48231-52E50 |
— | ||
|
48231B
|
48231B
48231-52E30 Spring, Coil, Rear Rh[11.2010 - 05.2014] NLP121,NSP120 |
48231-52E30 |
US $78.62 |
||
|
48231B
|
48231B
48231-52E50
Spring, Coil, Rear Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48231-52E50 |
— | ||
|
48257C
|
48257C
48257-52010 Insulator, Rear Coil Spring, Upper[11.2010 - 05.2014] NLP121,NSP120 |
48257-52010 |
from US $5.60 |
||
|
48258B
|
48258B
48258-52030 Insulator, Rear Coil Spring, Lower[11.2010 - 05.2014] NLP121,NSP120 |
48258-52030 |
from US $6.32 |
||
|
48258C
|
48258C
48258-52030 Insulator, Rear Coil Spring, Lower[11.2010 - 05.2014] NLP121,NSP120 |
48258-52030 |
from US $6.32 |
||
|
48259A
|
48259A
48257-52010 Insulator, Rear Coil Spring, Upper[11.2010 - 05.2014] NLP121,NSP120 |
48257-52010 |
from US $5.60 |
||
|
48530
|
48530
48530-52F30 Absorber Assy, Shock, Rear Rh[11.2010 - 05.2014] NSP120 MARK 48530-52F30 |
48530-52F30 |
US $74.26 |
||
| replacement | |||||
|
48530
|
48530
48530-52L30 Absorber Assy, Shock, Rear Rh[11.2010 - 05.2014] NSP120 MARK 48530-52F30 |
48530-52L30 |
US $119.88 |
||
|
48530
|
48530
48530-52F60
Absorber Assy, Shock, Rear Rh
[11.2010 - 12.2012] NSP120..LHD MARK 48530-52F60,RUSSIA SPEC |
48530-52F60 |
— | ||
|
48530
|
48530
48530-52L30 Absorber Assy, Shock, Rear Rh[05.2014 - 04.2015] NLP121,NSP120 MARK 48530-52L30 |
48530-52L30 |
US $119.88 |
||
|
48540
|
48540
48530-52F30 Absorber Assy, Shock, Rear Rh[11.2010 - 05.2014] NSP120 MARK 48530-52F30 |
48530-52F30 |
US $74.26 |
||
| replacement | |||||
|
48540
|
48540
48530-52L30 Absorber Assy, Shock, Rear Rh[11.2010 - 05.2014] NSP120 MARK 48530-52F30 |
48530-52L30 |
US $119.88 |
||
|
48540
|
48540
48530-52F60
Absorber Assy, Shock, Rear Rh
[11.2010 - 12.2012] NSP120..LHD MARK 48530-52F60,RUSSIA SPEC |
48530-52F60 |
— | ||
|
48540
|
48540
48530-52L30 Absorber Assy, Shock, Rear Rh[05.2014 - 04.2015] NLP121,NSP120 MARK 48530-52L30 |
48530-52L30 |
US $119.88 |
||
|
48597A
|
48597A
90201-10320 Retainer, Rear Shock Absober Cushion[11.2010 - 05.2014] NLP121,NSP120 |
90201-10320 |
from US $3.78 |
||
|
48750H
|
48750H
48750-52100 Support Assy, Rear Suspension, Rh[11.2010 - 02.2014] NLP121,NSP120 |
48750-52100 |
from US $26.29 |
||
|
48750H
|
48750H
48750-52160
Support Assy, Rear Suspension, Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48750-52160 |
— | ||
| replacement | |||||
|
48750H
|
48750H
48750-52161
Support Assy, Rear Suspension, Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48750-52161 |
— | ||
|
48750H
|
48750H
48750-52200 Support Assy, Rear Suspension[03.2014 - 05.2014] NLP121,NSP120 |
48750-52200 |
from US $21.74 |
||
|
48752A
|
48752A
48752-52010 Stopper, Rear Suspension Support[11.2010 - 05.2014] NLP121,NSP120 |
48752-52010 |
from US $6.72 |
||
|
48755
|
48755
48755-52010 Support, Rear Suspension[11.2010 - 05.2014] NLP121,NSP120 |
48755-52010 |
from US $9.50 |
||
|
48760B
|
48760B
48750-52100 Support Assy, Rear Suspension, Rh[11.2010 - 02.2014] NLP121,NSP120 |
48750-52100 |
from US $26.29 |
||
|
48760B
|
48760B
48750-52160
Support Assy, Rear Suspension, Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48750-52160 |
— | ||
| replacement | |||||
|
48760B
|
48760B
48750-52161
Support Assy, Rear Suspension, Rh
[11.2010 - 12.2012] NSP120..LHD RUSSIA SPEC |
48750-52161 |
— | ||
|
48760B
|
48760B
48750-52200 Support Assy, Rear Suspension[03.2014 - 05.2014] NLP121,NSP120 |
48750-52200 |
from US $21.74 |
||
|
91673G1065
|
91673G1065
91673-G1065 New Genuine Part |
91673-G1065 |
US $3.36 |
||
|
9011912385
|
9011912385
90119-12385 New Genuine Part |
90119-12385 |
US $5.76 |
||
|
9017810022
|
9017810022
90178-10022 NUT, FLANGE |
90178-10022 |
US $1.60 |
||
|
9413061000
|
9413061000
94130-61000 Nut(For Clutch Pedal Stopper) |
94130-61000 |
from US $0.82 |
||
