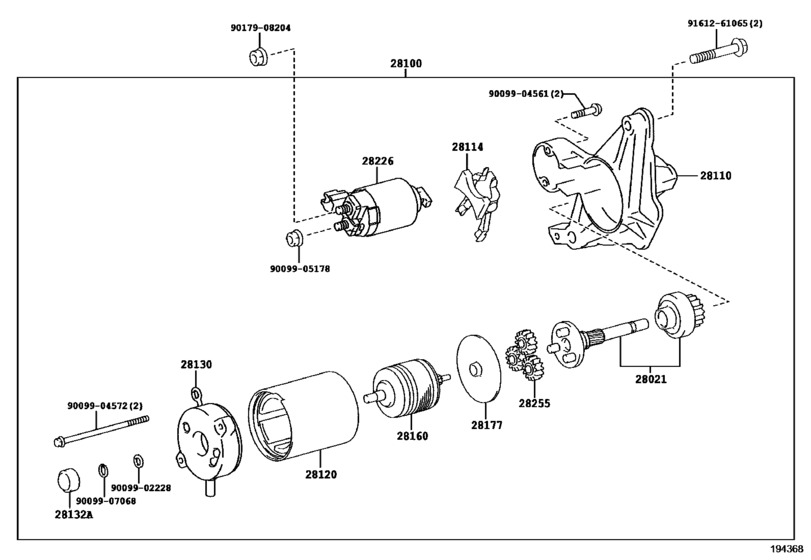

Starter ([05.2014 - ] 12V 1.3KW (1405- )1NRFE..LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-21060 Clutch Sub-Assy, Starter Center Bearing[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28021-21060 |
from US $63.73 |
||
|
28021
|
28021
28021-47110 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28021-47110 |
US $167.44 |
||
|
28100
|
28100
28100-47170 Starter Assy[11.2010 - 05.2014] 1NRFE..NSP120 12V 1.0KW |
28100-47170 |
US $757.12 |
||
| replacement | |||||
|
28100
|
28100
28100-47171 Starter Assy[11.2010 - 05.2014] 1NRFE..NSP120 12V 1.0KW |
28100-47171 |
US $687.23 |
||
|
28100
|
28100
28100-47171 Starter Assy[08.2014 - 04.2015] 1NRFE..NSP120 12V 1.0KW |
28100-47171 |
US $687.23 |
||
|
28100
|
28100
28100-47180 Starter Assy[11.2010 - 05.2014] 1NRFE..NSP120..LHD 12V 1.2KW,COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD 12V 1.2KW,COLD SPEC & WITH(REAR HEATER DUCT) |
28100-47180 |
US $813.90 |
||
| replacement | |||||
|
28100
|
28100
28100-47181 Starter Assy[11.2010 - 05.2014] 1NRFE..NSP120..LHD 12V 1.2KW,COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD 12V 1.2KW,COLD SPEC & WITH(REAR HEATER DUCT) |
28100-47181 |
US $739.65 |
||
|
28100
|
28100
28100-47190 Starter Assy[11.2010 - 05.2014] 1NRFE..NSP120..LHD 12V 1.6KW,WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD 12V 1.6KW,WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD 12V 1.6KW,WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER D |
28100-47190 |
US $974.06 |
||
|
28100
|
28100
28100-47240
Starter Assy
[05.2014 - 04.2015] 1NRFE..NSP120..LHD 12V 1.3KW,COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD 12V 1.3KW,COLD SPEC & WITH(REAR HEATER DUCT) |
28100-47240 |
— | ||
|
28110
|
28110
28110-47191 Housing Assy, Starter Drive[11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28110-47191 |
US $45.43 |
||
|
28110
|
28110
28110-47240
Housing Assy, Starter Drive
[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28110-47240 |
— | ||
|
28114
|
28114
28114-21060 Pin, Starter Drive Lever Set[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28114-21060 |
from US $0.92 |
||
|
28120
|
28120
28120-28080 Yoke Assy, Starter[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28120-28080 |
US $111.82 |
||
|
28120
|
28120
28120-47110
Yoke Assy, Starter
[11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28120-47110 |
— | ||
|
28130
|
28130
28130-47110 Frame Assy, Starter Commutator EndSTARTER COMMUTATOR END [11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28130-47110 |
US $31.16 |
||
|
28130
|
28130
28130-47240
Frame Assy, Starter Commutator End
[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28130-47240 |
— | ||
|
28132A
|
28132A
28132-28040 Cover, Starter Bearing(For Drive Housing)[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28132-28040 |
US $1.75 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-21070 Armature Assy, Starter[11.2010 - 05.2014] 1NRFE..NSP120 |
28160-21070 |
US $125.80 |
||
|
28160
|
28160
28160-21080 Armature Assy, Starter[11.2010 - 05.2014] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28160-21080 |
US $138.32 |
||
|
28160
|
28160
28180-47110
Armature Assy, Starter
[11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28180-47110 |
— | ||
|
28177
|
28177
28177-28040 Plate(For Starter Armature)[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28177-28040 |
US $4.19 |
||
|
28226
|
28226
28226-21080
Starter Kit, Battery Terminal
[11.2010 - 05.2014] 1NRFE..NSP120 |
28226-21080 |
— | ||
| replacement | |||||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[11.2010 - 05.2014] 1NRFE..NSP120 |
28226-21081 |
— | ||
|
28226
|
28226
28226-21081
Starter Kit, Battery Terminal
[09.2014 - 04.2015] 1NRFE..NSP120 |
28226-21081 |
— | ||
|
28226
|
28226
28226-31170
Switch Assy, Magnet Starter
[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28226-31170 |
— | ||
|
28226
|
28226
28226-47190
Starter Kit, Battery Terminal
[11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28226-47190 |
— | ||
|
28255
|
28255
28255-28040 Gear, Planet[05.2014 - 04.2015] 1NRFE..NSP120..LHD COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
28255-28040 |
from US $4.10 |
||
|
28255
|
28255
28255-47110
Gear, Planet
[11.2010 - 05.2014] 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITHOUT(REAR HEATER DUCT); 1NRFE..NSP120..LHD WITH(STOP & START SYSTEM)&COLD SPEC & WITH(REAR HEATER DUCT) |
28255-47110 |
— | ||
|
9009902228
|
9009902228
90099-02228 WASHER |
90099-02228 |
US $0.55 |
||
|
9009904561
|
9009904561
90099-04561
BOLT
|
90099-04561 |
— | ||
|
9009904572
|
9009904572
90099-04572
BOLT
|
90099-04572 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907068
|
9009907068
90099-07068 RING SNAP |
90099-07068 |
US $0.28 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.56 |
||
| replacement | |||||
|
9161261065
|
9161261065
90119-A0104 Bolt with Washer |
90119-A0104 |
US $3.72 |
||
