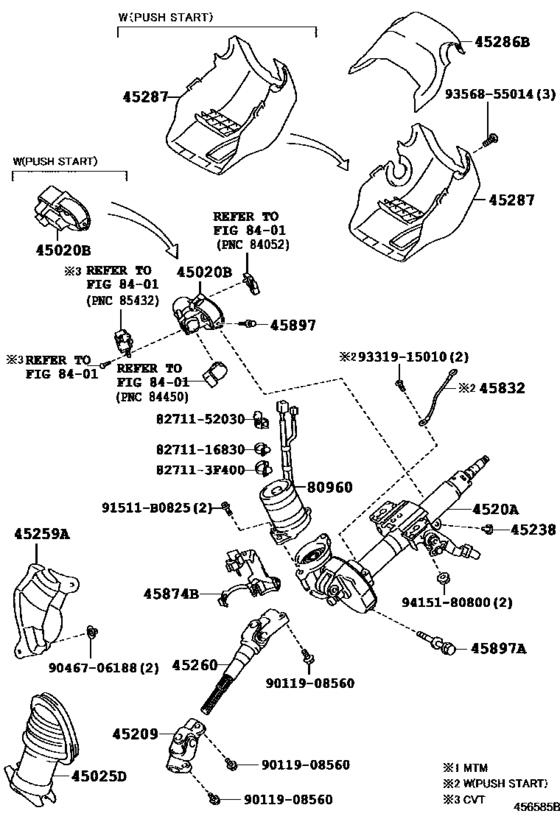

Steering Column & Shaft ([05.2014 - ] (1405- )LHD) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4520A
|
4520A
4520A-52182
Column Sub-Assy, Electric Power Steering
[05.2014 - 04.2015] NLP121,NSP120..LHD..LUNA |
4520A-52182 |
— | ||
|
4520A
|
4520A
4520A-52192
Column Sub-Assy, Electric Power Steering
[05.2014 - 04.2015] NSP120..LHD..CVT HI GRADE(WITH/PANORAMA)&WIRELESS DOOR LOCK-W(SMART ENTRY:FRONT&BACK)&W(PUSH START); NSP120..LHD..CVT HI GRADE(WITHOUT PANORAMA)&WIRELESS DOOR LOCK-W(SMART ENTRY:FRONT&BACK)&W(PUSH STA RT); NLP121,NSP120..LHD..6F..LUNA |
4520A-52192 |
— | ||
|
45020B
|
45020B
45020-52170 Actuator Assy, Steering Lock[11.2010 - 05.2014] NLP121,NSP120..LHD..LUNA WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
45020-52170 |
US $194.40 |
||
|
45020B
|
45020B
45280-52110 Actuator Or Upper Bracket Assy, Steering Lock[11.2010 - 05.2014] NLP121,NSP120..LHD..MTM |
45280-52110 |
US $141.23 |
||
|
45025D
|
45025D
45025-52140
Cover Sub-Assy, Steering Column Hole, No.1
[11.2010 - 10.2011] NLP121,NSP120 |
45025-52140 |
— | ||
| replacement | |||||
|
45025D
|
45025D
45025-52170 Cover Sub-Assy, Steering Column Hole, No.1[11.2010 - 10.2011] NLP121,NSP120 |
45025-52170 |
US $46.06 |
||
|
45025D
|
45025D
45025-52170 Cover Sub-Assy, Steering Column Hole, No.1[11.2011 - 05.2014] NLP121,NSP120 |
45025-52170 |
US $46.06 |
||
|
45209
|
45209
45209-52050 Yoke Sub-Assy, Steering Sliding[11.2010 - 05.2014] NLP121,NSP120 |
45209-52050 |
US $79.92 |
||
|
45238
|
45238
45238-52010 Clamp, Bolt(For Steering Flexible Coupling)[05.2014 - 04.2015] NLP121,NSP120 |
45238-52010 |
from US $0.86 |
||
|
45259A
|
45259A
45259-52020 Sheet, Column Hole Cover SilencerCOLUMN HOLE COVER SILENCER [11.2010 - 05.2014] NLP121,NSP120..LHD |
45259-52020 |
US $9.03 |
||
|
45260
|
45260
45260-52261 Shaft Assy, Steering Intermediate, No.2[11.2010 - 05.2014] NLP121,NSP120..LHD |
45260-52261 |
US $135.41 |
||
|
45286B
|
45286B
45286-12560-C0 Cover, Steering Column, Upr[12.2012 - 05.2014] NSP120..LUNA;NLP121..6F..LUNA WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK,TRIM1#,2#,4# |
45286-12560-C0 |
from US $20.79 |
||
|
45286B
|
45286B
45286-52160-C0 Cover, Steering Column, Upr[11.2010 - 05.2014] NLP121,NSP120..TERRA BLACK,TRIM2#; NSP120..LUNA;NLP121..6F..LUNA BLACK,TRIM1#,2#,4# |
45286-52160-C0 |
from US $26.60 |
||
|
45287
|
45287
45287-52200-C0 Cover, Steering Column, Lwr[11.2010 - 05.2014] NLP121,NSP120..TERRA BLACK,TRIM2#; NSP120..LUNA;NLP121..6F..LUNA BLACK,TRIM1#,2#,4# |
45287-52200-C0 |
US $33.49 |
||
|
45287
|
45287
45287-52220-C0 Cover, Steering Column, Lwr[12.2012 - 05.2014] NSP120..LUNA;NLP121..6F..LUNA WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),BLACK,TRIM1#,2#,4# |
45287-52220-C0 |
US $33.49 |
||
|
45832
|
45832
45832-52010 Cable, Tilt Steering Support Bond[05.2014 - 04.2015] NSP120..RHD;NLP121,NSP120..LHD..LUNA |
45832-52010 |
US $5.53 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[11.2010 - 05.2014] NLP121,NSP120..LHD; NSP120..RHD..LUNA WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START) |
45897-12020 |
from US $3.36 |
||
|
45897A
|
45897A
45897-42010 Bolt, Tilt Steering Pawl Set[11.2010 - 09.2012] NLP121,NSP120 |
45897-42010 |
US $8.64 |
||
|
45897A
|
45897A
90119-10980 Bolt, Tilt Steering Pawl Set[10.2012 - 05.2014] NLP121,NSP120 |
90119-10980 |
from US $1.48 |
||
|
80960
|
80960
80960-52090 Motor Assy, Power Steering[05.2014 - 04.2015] NLP121,NSP120..LHD |
80960-52090 |
US $218.40 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $2.24 |
||
|
827113F400
|
827113F400
82711-3F400 Wire, Fuse To Fuse(for Combustion Heater) |
82711-3F400 |
US $2.08 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
8271152030
|
8271152030
82711-52030
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-52030 |
— | ||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
from US $2.03 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
