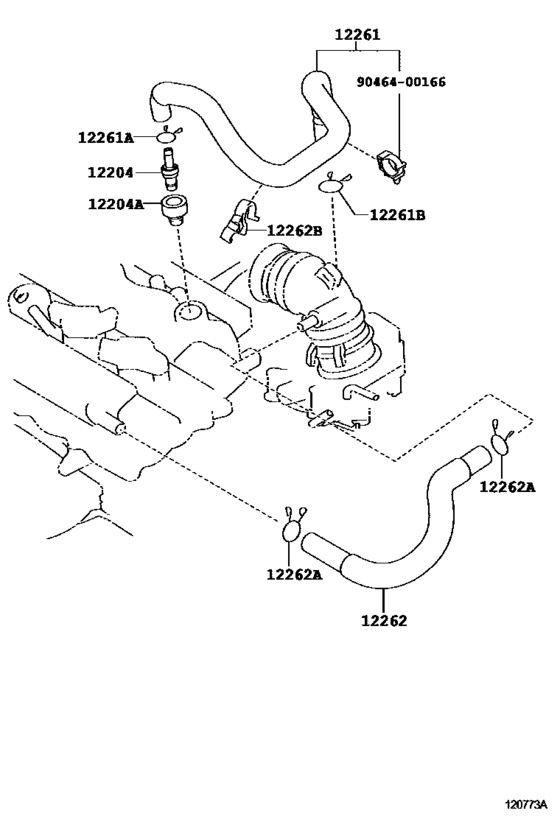

Ventilation Hose ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-47010 Valve Sub-Assy, VentilationVENTILATION [11.2010 - 05.2014] 1NRFE..NSP120 |
12204-47010 |
US $19.61 |
||
|
12204
|
12204
12204-47060 Valve Sub-Assy, Ventilation[07.2014 - 04.2015] 1NRFE..NSP120 |
12204-47060 |
US $12.41 |
||
|
12204A
|
12204A
11249-47020 Grommet(For Ventilation System)[12.2014 - 04.2015] 1NRFE..NSP120 |
11249-47020 |
US $14.08 |
||
|
12204A
|
12204A
90480-18016 Grommet(For Ventilation System)[11.2010 - 05.2014] 1NRFE..NSP120 |
90480-18016 |
US $2.88 |
||
|
12261
|
12261
12261-47010 Hose, VentilationVENTILATION [11.2010 - 05.2014] 1NRFE..NSP120 |
12261-47010 |
US $17.47 |
||
|
12261A
|
12261A
90467-16035 Clip Or Clamp(For Ventilation Hose)[11.2010 - 05.2014] 1NRFE..NSP120 |
90467-16035 |
from US $0.90 |
||
|
12261B
|
12261B
90467-22010 Clip Or Clamp(For Ventilation Hose)[11.2010 - 05.2014] 1NRFE..NSP120 |
90467-22010 |
from US $1.56 |
||
|
12262
|
12262
12262-47010 Hose, Ventilation, No.2VENTILATION, NO.2 [11.2010 - 05.2012] 1NRFE..NSP120 |
12262-47010 |
US $12.81 |
||
|
12262A
|
12262A
90467-21004 Clip Or Clamp(For Ventilation Hose)[11.2010 - 05.2012] 1NRFE..NSP120 |
90467-21004 |
from US $2.08 |
||
|
12262B
|
12262B
16581-47020 Clamp(For Ventilation Hose)[11.2010 - 05.2014] 1NRFE..NSP120 |
16581-47020 |
US $4.51 |
||
|
9046400166
|
9046400166
90464-00166 Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
90464-00166 |
US $2.56 |
