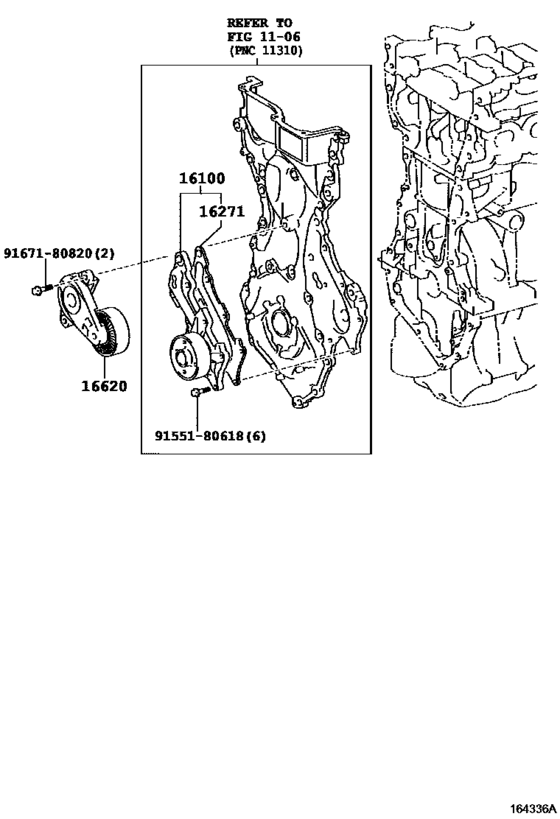

Water Pump ([11.2010 - ] (1011- )1NRFE) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-80004
Pump Assy, Engine Water
[11.2010 - 08.2013] 1NRFE..NSP120 |
16100-80004 |
— | ||
| replacements | |||||
|
16100
|
16100
16100-80010 Pump Assy, Engine Water[11.2010 - 08.2013] 1NRFE..NSP120 |
16100-80010 |
US $115.02 |
||
|
16100
|
16100
91552-81050 Bolt, No.2(For Alternator)[11.2010 - 08.2013] 1NRFE..NSP120 |
91552-81050 |
US $1.92 |
||
|
16100
|
16100
16100-80010 Pump Assy, Engine Water[08.2013 - 05.2014] 1NRFE..NSP120 |
16100-80010 |
US $115.02 |
||
|
16271
|
16271
16271-47031 Gasket, Water PumpWATER PUMP [11.2010 - 05.2014] 1NRFE..NSP120 |
16271-47031 |
US $7.84 |
||
|
16620
|
16620
16620-47030
Tensioner Assy, V-Ribbed Belt
[11.2010 - 05.2014] 1NRFE..NSP120 |
16620-47030 |
— | ||
| replacement | |||||
|
16620
|
16620
16620-47031 Tensioner Assy[11.2010 - 05.2014] 1NRFE..NSP120 |
16620-47031 |
from US $145.44 |
||
|
9155180618
|
9155180618
91551-80618 Bolt, W/washer(For Repair Actuator Set) |
91551-80618 |
US $0.96 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
