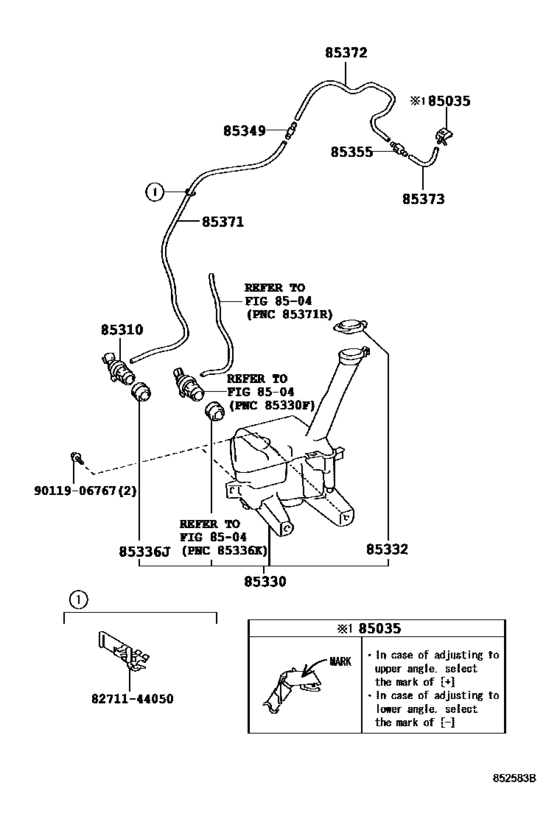

Windshield Washer ([11.2010 - ] (1011- )) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- LUNA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-52330
Nozzle Sub-Assy, Washer
[11.2010 - 08.2011] NLP121,NSP120 MARK +1 |
85381-52330 |
— | ||
|
85035
|
85035
85381-52340
Nozzle Sub-Assy, Washer
[11.2010 - 08.2011] NLP121,NSP120 MARK +3 |
85381-52340 |
— | ||
|
85035
|
85035
85381-52350
Nozzle Sub-Assy, Washer
[11.2010 - 08.2011] NLP121,NSP120 MARK -1 |
85381-52350 |
— | ||
|
85035
|
85035
85381-74010
Nozzle Sub-Assy, Washer
[08.2011 - 05.2014] NLP121,NSP120 MARK +1 |
85381-74010 |
— | ||
|
85035
|
85035
85381-74020
Nozzle Sub-Assy, Washer
[08.2011 - 05.2014] NLP121,NSP120 MARK +3 |
85381-74020 |
— | ||
|
85035
|
85035
85381-74030
Nozzle Sub-Assy, Washer
[08.2011 - 05.2014] NLP121,NSP120 MARK -1 |
85381-74030 |
— | ||
|
85310
|
85310
85330-71010 Motor And Pump Assy, Windshield Washer[11.2010 - 05.2014] NLP121,NSP120 |
85330-71010 |
from US $81.40 |
||
|
85330
|
85330
85315-52300 Jar Assy, Windshield Washer[11.2010 - 05.2014] NLP121,NSP120 |
85315-52300 |
US $35.84 |
||
|
85330
|
85330
85315-52301
Jar Assy, Windshield Washer
[05.2014 - 04.2015] NLP121,NSP120 |
85315-52301 |
— | ||
|
85332
|
85332
85316-10270 Cap, Windshield Washer Jar[11.2010 - 05.2014] NLP121,NSP120 |
85316-10270 |
US $4.80 |
||
|
85332
|
85332
85386-52300
Cap, Windshield Washer Jar
[05.2014 - 04.2015] NLP121,NSP120 |
85386-52300 |
— | ||
|
85336J
|
85336J
85336-60300 Bush, Windshield Washer Jar[11.2010 - 05.2014] NLP121,NSP120 |
85336-60300 |
from US $1.92 |
||
|
85349
|
85349
85349-89122 Valve Sub-Assy, Washer[11.2010 - 05.2014] NLP121,NSP120 |
85349-89122 |
from US $1.25 |
||
|
85355
|
85355
85321-26020 Valve Sub-Assy, Washer[11.2010 - 05.2014] NLP121,NSP120 |
85321-26020 |
from US $1.93 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[11.2010 - 05.2014] NLP121,NSP120 L=1450(*H,L=760) |
90099-33080 |
from US $5.99 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2014 - 04.2015] NLP121,NSP120 L=1450(*H,L=640) |
90099-33080 |
from US $5.99 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2014 - 04.2015] NLP121,NSP120 L=1450(*H,L=140) |
90099-33080 |
from US $5.99 |
||
|
8271144050
|
8271144050
82711-44050 Wire, Fuse To Fuse(for Combustion Heater) |
82711-44050 |
US $2.27 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
