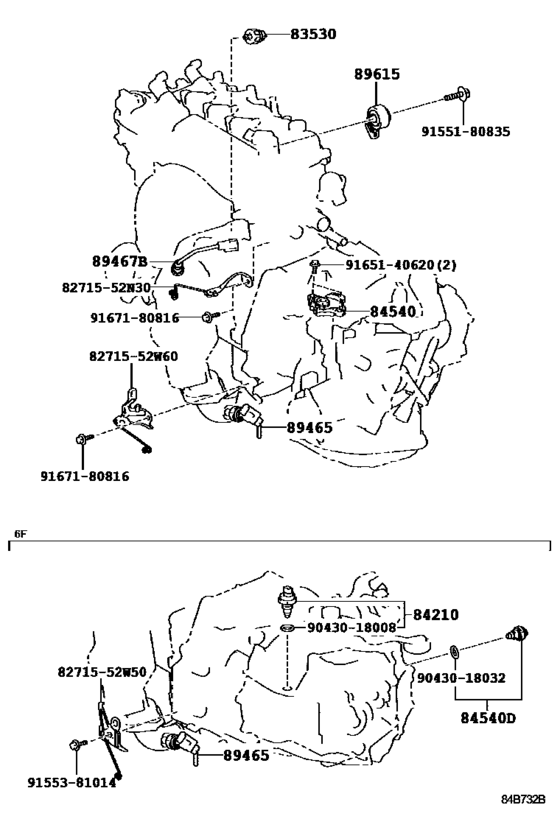

Switch & Relay & Computer ([11.2010 - ] ENGINE & TRANSMISSION (1011- )NSP120) Diagram Toyota VERSO
- Year
- 2010 - 2015
- Sales region
- Europe
- Frame
- NSP120
- grade
- TERRA
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- Model
- VERSO-S
- From
- 11.2010
- To
- 04.2015
- Gear Shift Type
- 6F
- Vehicle Model
- VERSO-S
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[05.2014 - 04.2015] NSP120 DENSO |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [05.2014 - 04.2015] NSP120 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[05.2014 - 04.2015] NSP120 DENSO |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.2010 - 05.2014] NSP120 |
83530-60020 |
from US $25.21 |
||
|
84210
|
84210
84210-12040
Switch Assy, Back-Up Lamp
[11.2010 - 04.2012] NLP121,NSP120..MTM |
84210-12040 |
— | ||
| replacement | |||||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[11.2010 - 04.2012] NLP121,NSP120..MTM |
84210-52050 |
from US $20.67 |
||
|
84210
|
84210
84210-52050 Switch Assy, Back-Up Lamp[05.2012 - 05.2014] NLP121,NSP120..MTM |
84210-52050 |
from US $20.67 |
||
|
84540D
|
84540D
84545-52010 Switch, Neutral Position[11.2010 - 05.2014] NSP120..LHD..6F WITH(STOP & START SYSTEM) |
84545-52010 |
US $46.66 |
||
|
89465
|
89465
89465-52540 Sensor, OxygenOXYGEN [11.2010 - 05.2014] NSP120 |
89465-52540 |
US $149.76 |
||
|
89467B
|
89467B
89467-52110 Sensor, Air Fuel Ratio[11.2010 - 05.2014] NSP120 |
89467-52110 |
US $146.52 |
||
|
89615
|
89615
89615-20090 Sensor, Knock Control[11.2010 - 05.2014] NSP120 |
89615-20090 |
from US $36.02 |
||
|
8271552N30
|
8271552N30
82715-52N30 Bracket,wiring Harness Clamp |
82715-52N30 |
US $4.66 |
||
|
8271552W50
|
8271552W50
82715-52W50 Bracket,wiring Harness Clamp |
82715-52W50 |
US $5.10 |
||
|
8271552W60
|
8271552W60
82715-52W60 Bracket,wiring Harness Clamp |
82715-52W60 |
US $6.26 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9043018032
|
9043018032
90430-18032 New Genuine Part |
90430-18032 |
US $1.44 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.84 |
||
|
9155381014
|
9155381014
91553-81014 New Genuine Part |
91553-81014 |
US $1.31 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.84 |
||
