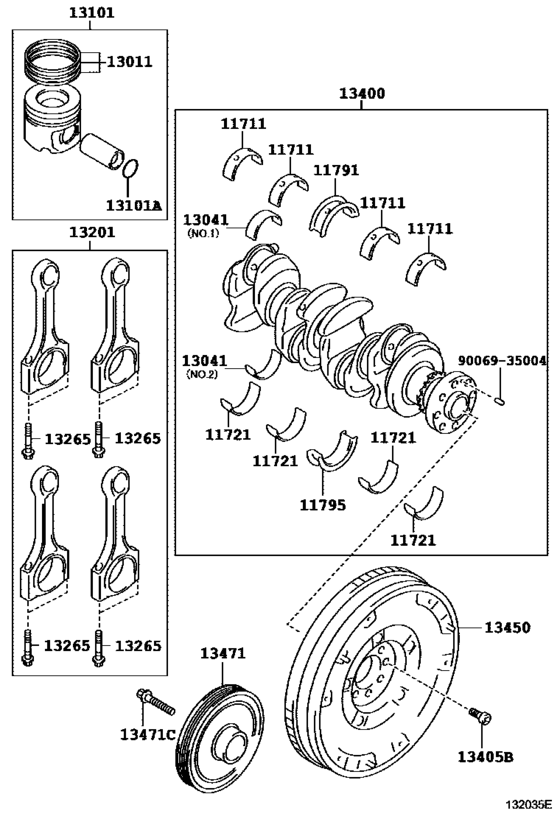

Crankshaft & Piston ([01.2014 - ] (1401- )1WW) Diagram Toyota VERSO
- Year
- 2014 - 2018
- Sales region
- Europe
- Frame
- WAR20
- grade
- E
- ENGINE
- 1WW
- TRANSMISSION
- MTM
- Model
- VERSO
- From
- 01.2014
- Gear Shift Type
- 6F
- Seating Capacity
- 05S
- Vehicle Model
- VERSO
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11711-WA010-A0
Bearing, Crankshaft
[01.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,STD |
11711-WA010-A0 |
— | ||
|
11711
|
11711
11711-WA010-B0
Bearing, Crankshaft
[01.2014 - 03.2015] 1WW..WAR20 MARK GREEN,STD |
11711-WA010-B0 |
— | ||
|
11711
|
11711
11711-WA010-C0
Bearing, Crankshaft
[01.2014 - 03.2015] 1WW..WAR20 MARK WHITE,STD |
11711-WA010-C0 |
— | ||
|
11711
|
11711
11712-WA010-A0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK YELLOW, U/S 0.25,U/S 0.25 |
11712-WA010-A0 |
— | ||
|
11711
|
11711
11712-WA010-B0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK GREEN,U/S 0.25 |
11712-WA010-B0 |
— | ||
|
11711
|
11711
11712-WA010-C0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK WHITE,U/S 0.25 |
11712-WA010-C0 |
— | ||
|
11711
|
11711
11713-WA010-A0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK YELLOW,U/S 0.50 |
11713-WA010-A0 |
— | ||
|
11711
|
11711
11713-WA010-B0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK GREEN,U/S 0.50 |
11713-WA010-B0 |
— | ||
|
11711
|
11711
11713-WA010-C0
Bearing, Crankshaft
[01.2014 - 11.2014] 1WW..WAR20 MARK WHITE,U/S 0.50 |
11713-WA010-C0 |
— | ||
|
11711
|
11711
11714-WA010-A0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,O/S 0.25 |
11714-WA010-A0 |
— | ||
|
11711
|
11711
11714-WA010-B0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK GREEN,O/S 0.25 |
11714-WA010-B0 |
— | ||
|
11711
|
11711
11714-WA010-C0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK WHITE,O/S 0.25 |
11714-WA010-C0 |
— | ||
|
11711
|
11711
11715-WA010-A0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,O/S 0.50 |
11715-WA010-A0 |
— | ||
|
11711
|
11711
11715-WA010-B0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK GREEN,O/S 0.50 |
11715-WA010-B0 |
— | ||
|
11711
|
11711
11715-WA010-C0
Bearing, Crankshaft
[11.2014 - 03.2015] 1WW..WAR20 MARK WHITE,O/S 0.50 |
11715-WA010-C0 |
— | ||
|
11721
|
11721
11721-WA010-A0
Bearing, Crankshaft, No.2
[01.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,STD |
11721-WA010-A0 |
— | ||
|
11721
|
11721
11721-WA010-B0
Bearing, Crankshaft, No.2
[01.2014 - 03.2015] 1WW..WAR20 MARK GREEN,STD |
11721-WA010-B0 |
— | ||
|
11721
|
11721
11721-WA010-C0
Bearing, Crankshaft, No.2
[01.2014 - 03.2015] 1WW..WAR20 MARK WHITE,STD |
11721-WA010-C0 |
— | ||
|
11721
|
11721
11722-WA010-A0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK YELLOW,U/S 0.25 |
11722-WA010-A0 |
— | ||
|
11721
|
11721
11722-WA010-B0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK GREEN,U/S 0.25 |
11722-WA010-B0 |
— | ||
|
11721
|
11721
11722-WA010-C0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK WHITE,U/S 0.25 |
11722-WA010-C0 |
— | ||
|
11721
|
11721
11723-WA010-A0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK YELLOW,U/S 0.50 |
11723-WA010-A0 |
— | ||
|
11721
|
11721
11723-WA010-B0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK GREEN,U/S 0.50 |
11723-WA010-B0 |
— | ||
|
11721
|
11721
11723-WA010-C0
Bearing, Crankshaft, No.2
[01.2014 - 02.2015] 1WW..WAR20 MARK WHITE,U/S 0.50 |
11723-WA010-C0 |
— | ||
|
11721
|
11721
11724-WA010-A0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK YELLOW,U/S 0.25 |
11724-WA010-A0 |
— | ||
|
11721
|
11721
11724-WA010-B0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK GREEN,U/S 0.25 |
11724-WA010-B0 |
— | ||
|
11721
|
11721
11724-WA010-C0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK WHITE,U/S 0.25 |
11724-WA010-C0 |
— | ||
|
11721
|
11721
11725-WA010-A0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK YELLOW,U/S 0.50 |
11725-WA010-A0 |
— | ||
|
11721
|
11721
11725-WA010-B0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK GREEN,U/S 0.50 |
11725-WA010-B0 |
— | ||
|
11721
|
11721
11725-WA010-C0
Bearing, Crankshaft, No.2
[03.2015 -] 1WW..WAR20 MARK WHITE,U/S 0.50 |
11725-WA010-C0 |
— | ||
|
11791
|
11791
11791-WA010-A0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 STD,MARK YELLOW |
11791-WA010-A0 |
— | ||
|
11791
|
11791
11791-WA010-B0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 STD,MARK GREEN |
11791-WA010-B0 |
— | ||
|
11791
|
11791
11791-WA010-C0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 STD,MARK WHITE |
11791-WA010-C0 |
— | ||
|
11791
|
11791
11793-WA010-A0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.25,MARK YELLOW |
11793-WA010-A0 |
— | ||
|
11791
|
11791
11793-WA010-B0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.25,MARK GREEN |
11793-WA010-B0 |
— | ||
|
11791
|
11791
11793-WA010-C0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.25,MARK WHITE |
11793-WA010-C0 |
— | ||
|
11791
|
11791
11794-WA010-A0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.50,MARK YELLOW |
11794-WA010-A0 |
— | ||
|
11791
|
11791
11794-WA010-B0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.50,MARK GREEN |
11794-WA010-B0 |
— | ||
|
11791
|
11791
11794-WA010-C0
Washer, Crankshaft Thrust, Upper
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.50,MARK WHITE |
11794-WA010-C0 |
— | ||
|
11795
|
11795
11795-WA010-A0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,STD |
11795-WA010-A0 |
— | ||
|
11795
|
11795
11795-WA010-B0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK GREEN,STD |
11795-WA010-B0 |
— | ||
|
11795
|
11795
11795-WA010-C0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK WHITE,STD |
11795-WA010-C0 |
— | ||
|
11795
|
11795
11797-WA010-A0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,O/S 0.25 |
11797-WA010-A0 |
— | ||
|
11795
|
11795
11797-WA010-B0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK GREEN,O/S 0.25 |
11797-WA010-B0 |
— | ||
|
11795
|
11795
11797-WA010-C0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK WHITE,O/S 0.25 |
11797-WA010-C0 |
— | ||
|
11795
|
11795
11798-WA010-A0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK YELLOW,O/S 0.50 |
11798-WA010-A0 |
— | ||
|
11795
|
11795
11798-WA010-B0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK GREEN,O/S 0.50 |
11798-WA010-B0 |
— | ||
|
11795
|
11795
11798-WA010-C0
Washer, Crankshaft Thrust, Lower
[01.2014 - 03.2015] 1WW..WAR20 MARK WHITE,O/S 0.50 |
11798-WA010-C0 |
— | ||
|
13011
|
13011
13011-WA010
Ring Set, Piston
[01.2014 - 03.2015] 1WW..WAR20 STD |
13011-WA010 |
— | ||
|
13011
|
13011
13012-WA010
Ring Set, Piston
[01.2014 - 03.2015] 1WW..WAR20 O/S 0.25 |
13012-WA010 |
— | ||
|
13041
|
13041
13281-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 BLUE,STD |
13281-WA010 |
— | ||
|
13041
|
13041
13284-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 BLUE,U/S 0.25 |
13284-WA010 |
— | ||
|
13041
|
13041
13285-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 BLUE,U/S 0.50 |
13285-WA010 |
— | ||
|
13041
|
13041
13291-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 STD |
13291-WA010 |
— | ||
|
13041
|
13041
13294-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 U/S 0.25 |
13294-WA010 |
— | ||
|
13041
|
13041
13295-WA010
Bearing, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 U/S 0.50 |
13295-WA010 |
— | ||
|
13101
|
13101
13101-WA010
Piston Sub-Assy, W/pin
[01.2014 - 03.2015] 1WW..WAR20 STD |
13101-WA010 |
— | ||
|
13101
|
13101
13101-WA020
Piston Sub-Assy, W/pin
[03.2015 -] 1WW..WAR20 STD |
13101-WA020 |
— | ||
|
13101
|
13101
13102-WA010
Piston Sub-Assy, W/pin
[01.2014 - 03.2015] 1WW..WAR20 0/S 0.25 |
13102-WA010 |
— | ||
|
13101A
|
13101A
90069-52041
Ring, Hole Snap(For Piston Pin)
[01.2014 - 03.2015] 1WW..WAR20 |
90069-52041 |
— | ||
|
13201
|
13201
13201-WA010
Rod Sub-Assy, Connecting
[01.2014 - 03.2015] 1WW..WAR20 |
13201-WA010 |
— | ||
|
13265
|
13265
13265-WA010
Bolt, Connecting Rod
[01.2014 - 03.2015] 1WW..WAR20 |
13265-WA010 |
— | ||
|
13400
|
13400
13400-WA010
Crankshaft Assy
[01.2014 - 03.2015] 1WW..WAR20 |
13400-WA010 |
— | ||
|
13400
|
13400
13400-WA011
Crankshaft Assy
[12.2016 -] 1WW..WAR20 |
13400-WA011 |
— | ||
|
13405B
|
13405B
90148-WX005
Bolt, Flywheel Setting
[01.2014 - 03.2015] 1WW..WAR20 |
90148-WX005 |
— | ||
|
13450
|
13450
13450-0X020
Flywheel Assy, W/damper
[01.2014 - 03.2015] 1WW..WAR20 |
13450-0X020 |
— | ||
|
13450
|
13450
13450-0X021
Flywheel Assy, W/damper
[02.2017 -] 1WW..WAR20 |
13450-0X021 |
— | ||
|
13471
|
13471
13470-WA010
Pulley, Crankshaft
[01.2014 - 03.2015] 1WW..WAR20 |
13470-WA010 |
— | ||
|
13471C
|
13471C
90069-31085
Bolt(For Crankshaft Pulley Set)
[01.2014 - 03.2015] 1WW..WAR20 |
90069-31085 |
— | ||
|
9006935004
|
9006935004
90069-35004
New Genuine Part
|
90069-35004 |
— |
