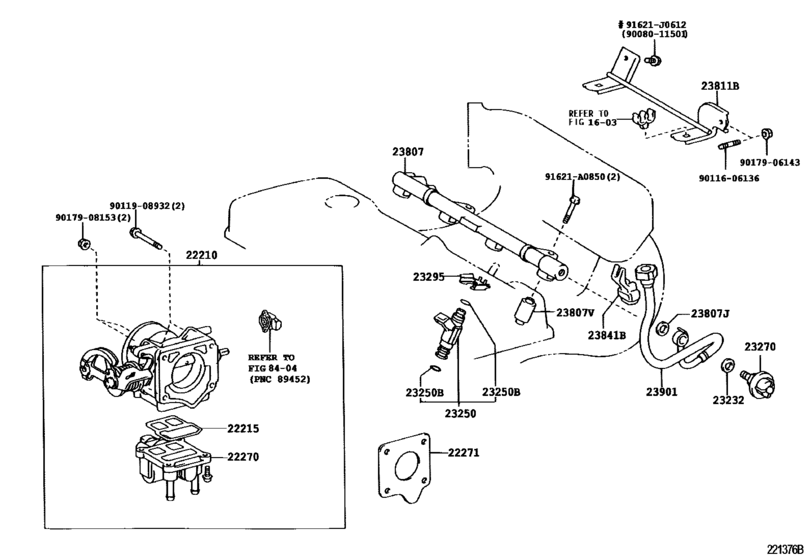

Fuel Injection System ([10.2002 - ] (0210- )5AFE,8AFE) Diagram Toyota VIOS
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- AXP42
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 11.2005
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-02250
Body Assy, Throttle
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
22210-02250 |
— | ||
|
22215
|
22215
22215-02250
Gasket, Throttle Body Cover
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# (L) |
22215-02250 |
— | ||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[10.2002 - 11.2005] 5AFE,8AFE..AXP4# (J) |
22215-74400 |
from US $3.53 |
||
|
22270
|
22270
22270-16110 Valve Assy, Idle Speed Control(For Thlottle Body)IDLE SPEED CONTROL(FOR THLOTTLE BODY) [10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
22270-16110 |
US $500.86 |
||
|
22271
|
22271
22271-02050 Gasket, Throttle BodyTHROTTLE BODY [10.2002 - 11.2005] 5AFE,8AFE..AXP4# (L) |
22271-02050 |
US $5.24 |
||
|
22271
|
22271
22271-14010
Gasket, Throttle Body
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# (J) |
22271-14010 |
— | ||
|
23232
|
23232
23279-74010 Gasket(For Fuel Pump Hose)[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23279-74010 |
from US $1.09 |
||
|
23250
|
23250
23209-02060
Injector Assy, Fuel
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23209-02060 |
— | ||
|
23250B
|
23250B
90080-30036 Ring, O(For Fuel Injector)O(FOR FUEL INJECTOR) [10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
90080-30036 |
US $2.91 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23207-46010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23207-20011 |
from US $59.75 |
||
|
23295
|
23295
23295-14010
Holder, Injector, No.1
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23295-14010 |
— | ||
|
23807
|
23807
23814-14020 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23814-14020 |
US $85.90 |
||
|
23807J
|
23807J
90430-12026 Gasket[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
90430-12026 |
from US $0.82 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
90561-08020 |
from US $2.73 |
||
|
23811B
|
23811B
23811-14030 Pipe, Fuel, No.1FUEL, NO.1 [10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23811-14030 |
US $48.92 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[10.2002 - 11.2005] 5AFE,8AFE..AXP4# |
23841-21050 |
US $3.94 |
||
|
23901
|
23901
23901-02060
Tube Sub-Assy, Fuel
[12.2002 - 11.2005] 5AFE,8AFE..AXP4# (L) |
23901-02060 |
— | ||
|
23901
|
23901
23901-14010 Tube Sub-Assy, Fuel[10.2002 - 12.2002] 5AFE,8AFE..AXP4# |
23901-14010 |
US $96.10 |
||
|
91621A0850
|
91621A0850
91621-A0850 New Genuine Part |
91621-A0850 |
US $3.58 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.66 |
||
|
9008011501
|
9008011501
90080-11501
New Genuine Part
|
90080-11501 |
— | ||
|
9011606136
|
9011606136
90116-06136 BOLT |
90116-06136 |
US $2.33 |
||
|
9011908932
|
9011908932
90119-08932 New Genuine Part |
90119-08932 |
US $2.04 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.80 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
