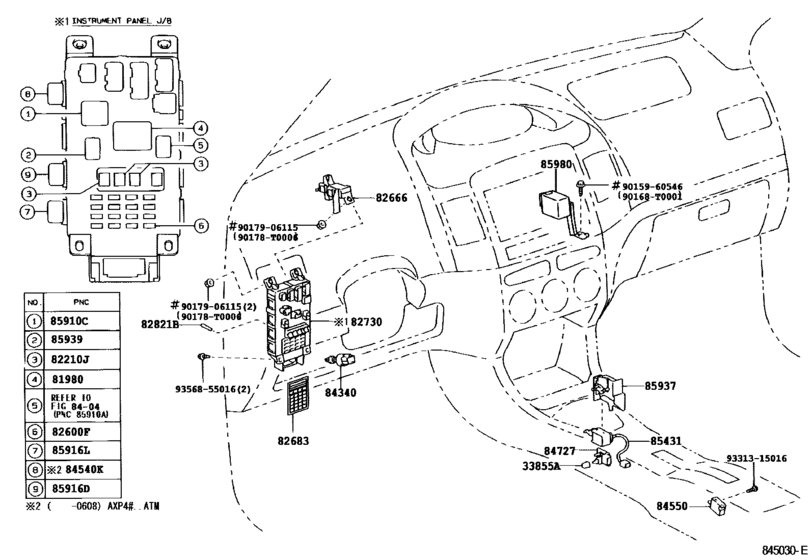

Switch & Relay & Computer ([10.2002 - ] COWL (0210- )LHD) Diagram Toyota VIOS
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- AXP42
- grade
- GLI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 11.2005
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[10.2002 - 11.2005] AXP4# |
81980-50030 |
from US $54.07 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[10.2002 - 11.2005] AXP4# 30A,TERMINAL:FEMALE,YAZAKI |
90982-08280 |
from US $3.88 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[10.2002 - 11.2005] AXP4# 30A,TERMINAL:FEMALE,TAIHEIYO |
90982-08283 |
from US $1.38 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[10.2002 - 11.2005] AXP4# 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[10.2002 - 11.2005] AXP4# 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[10.2002 - 11.2005] AXP4# 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[10.2002 - 11.2005] AXP4# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[10.2002 - 11.2005] AXP4# 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[10.2002 - 11.2005] AXP4# 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[10.2002 - 11.2005] AXP4# 25A,MINI FUSE |
90982-09012 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[10.2002 - 11.2005] AXP4# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82666
|
82666
82666-52010 Holder, Connector[10.2002 - 11.2005] AXP4#..DLX,DLXI,GLI,GLXI |
82666-52010 |
US $17.91 |
||
|
82683
|
82683
82683-52130 Plate, Fuse Block CautionFUSE BLOCK CAUTION [10.2002 - 11.2005] AXP4# |
82683-52130 |
US $3.49 |
||
|
82730
|
82730
82732-52020 Block Assy, Instrument Panel Junction[10.2002 - 11.2005] AXP4#..DLX,DLXI,GLI,GLXI |
82732-52020 |
US $184.91 |
||
|
82821B
|
82821B
82821-52020 Cover, Connector[10.2002 - 11.2005] AXP4#..DLX,DLXI,GLI,GLXI |
82821-52020 |
US $0.44 |
||
|
84340
|
84340
84340-32050 Switch Assy, Stop Lamp[10.2002 - 08.2004] AXP4#..DLX,DLXI,GL,GLI,GLXI |
84340-32050 |
from US $18.82 |
||
|
84340
|
84340
84340-47010 Switch Assy, Stop Lamp[08.2004 - 11.2005] AXP4# |
84340-47010 |
US $37.46 |
||
|
84550
|
84550
84550-30080 Switch Assy, Parking Brake[10.2002 - 11.2005] AXP4# |
84550-30080 |
from US $20.33 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[10.2002 - 11.2005] AXP4# |
90987-04010 |
from US $47.21 |
||
|
85916D
|
85916D
90987-02012 Relay, Ignition, No.1[10.2002 - 11.2005] AXP4# |
90987-02012 |
from US $26.54 |
||
|
85916L
|
85916L
90987-02012 Relay, Ignition, No.1[10.2002 - 11.2005] AXP4# |
90987-02012 |
from US $26.54 |
||
|
85939
|
85939
90987-02012 Relay, Ignition, No.1[10.2002 - 11.2005] AXP4# |
90987-02012 |
from US $26.54 |
||
|
85980
|
85980
85980-52010 Relay Assy, Door Control[10.2002 - 11.2005] AXP4# |
85980-52010 |
US $211.12 |
||
|
90168T0001
|
90168T0001
90168-T0001
New Genuine Part
|
90168-T0001 |
— | ||
|
90178T0006
|
90178T0006
90178-T0006 New Genuine Part |
90178-T0006 |
US $1.46 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $1.08 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9331315016
|
9331315016
93313-15016 New Genuine Part |
93313-15016 |
US $0.73 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
