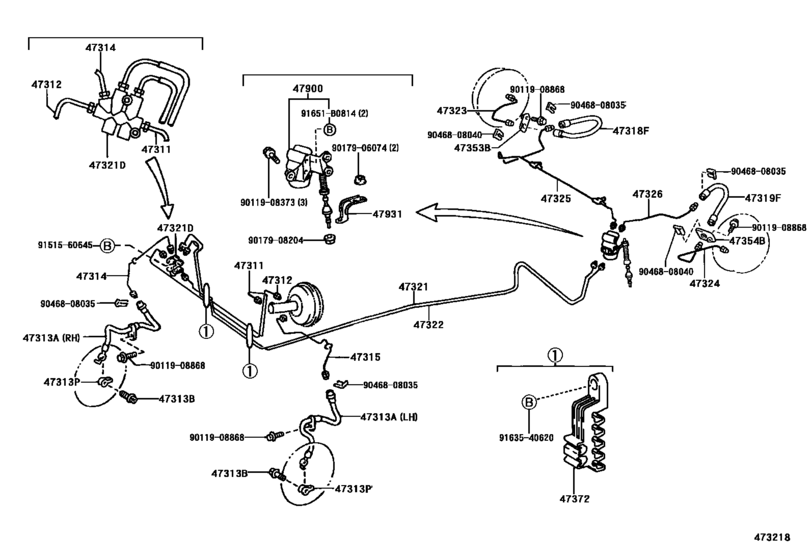

Brake Tube & Clamp ([10.2002 - 11.2005] (0210-0511)DLX,DLXI,GL) Diagram Toyota VIOS
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- AXP42
- grade
- DLXI
- ENGINE
- 5AFE
- TRANSMISSION
- MTM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 11.2005
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-0D060
Tube, Front Brake, No.1
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47311-0D060 |
— | ||
|
47312
|
47312
47312-0D050
Tube, Front Brake, No.2
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47312-0D050 |
— | ||
|
47313A
|
47313A
90080-94154
Hose, Flexible, No.1(For Front)
[10.2002 - 11.2005] AXP4# RH |
90080-94154 |
— | ||
| replacement | |||||
|
47313A
|
47313A
90947-C2027
Hose, Flexible, No.1(For Front)
[10.2002 - 11.2005] AXP4# RH |
90947-C2027 |
— | ||
|
47313A
|
47313A
90080-94155
Hose, Flexible, No.1(For Front)
[10.2002 - 11.2005] AXP4# LH |
90080-94155 |
— | ||
| replacement | |||||
|
47313A
|
47313A
90947-C2029
Hose, Flexible, No.1(For Front)
[10.2002 - 11.2005] AXP4# LH |
90947-C2029 |
— | ||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[10.2002 - 11.2005] AXP4# |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[10.2002 - 11.2005] AXP4# |
47389-50020 |
from US $4.91 |
||
|
47314
|
47314
47314-0D050
Tube, Front Brake, No.4
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47314-0D050 |
— | ||
|
47315
|
47315
47315-0D050
Tube, Front Brake, No.5
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47315-0D050 |
— | ||
|
47318F
|
47318F
90080-94156
Hose, Flexible(For Rear Rh)
[10.2002 - 11.2005] AXP4# |
90080-94156 |
— | ||
| replacement | |||||
|
47318F
|
47318F
90947-C2028
Hose, Flexible(For Rear Rh)
[10.2002 - 11.2005] AXP4# |
90947-C2028 |
— | ||
|
47319F
|
47319F
90080-94156
Hose, Flexible(For Rear Rh)
[10.2002 - 11.2005] AXP4# |
90080-94156 |
— | ||
| replacement | |||||
|
47319F
|
47319F
90947-C2028
Hose, Flexible(For Rear Rh)
[10.2002 - 11.2005] AXP4# |
90947-C2028 |
— | ||
|
47321
|
47321
47321-0D040
Tube, Rear Brake, No.1
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47321-0D040 |
— | ||
|
47321D
|
47321D
90413-10293 Way, No.1(For Rear Brake Tube)[10.2002 - 11.2005] AXP4#..DLX,DLXI |
90413-10293 |
US $14.18 |
||
|
47322
|
47322
47322-0D050
Tube, Rear Brake, No.2
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47322-0D050 |
— | ||
|
47323
|
47323
47323-0D020
Tube, Rear Brake, No.3
[10.2002 - 11.2005] AXP4# |
47323-0D020 |
— | ||
|
47324
|
47324
47324-0D020
Tube, Rear Brake, No.4
[10.2002 - 11.2005] AXP4# |
47324-0D020 |
— | ||
|
47325
|
47325
47325-0D030
Tube, Rear Brake, No.5
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47325-0D030 |
— | ||
|
47326
|
47326
47326-0D030
Tube, Rear Brake, No.6
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47326-0D030 |
— | ||
|
47353B
|
47353B
47353-52010 Bracket, Flexible Hose, No.3[10.2002 - 11.2005] AXP4# |
47353-52010 |
US $3.79 |
||
|
47354B
|
47354B
47354-52010 Bracket, Flexible Hose, No.4[10.2002 - 11.2005] AXP4# |
47354-52010 |
US $3.79 |
||
|
47372
|
47372
47372-52010 Clamp, Brake Tube, No.2[10.2002 - 11.2005] AXP4# |
47372-52010 |
US $8.60 |
||
|
47900
|
47900
47900-52090
Valve Assy, Load Sensing W/spring
[10.2002 - 11.2005] AXP4#..DLX,DLXI |
47900-52090 |
— | ||
|
47931
|
47931
47931-52010 Bracket, Load Sensing ValveLOAD SENSING VALVE [10.2002 - 11.2005] AXP4#..DLX,DLXI |
47931-52010 |
US $10.73 |
||
|
91651B0814
|
91651B0814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9011908373
|
9011908373
90119-08373 Bolt, W/washer(For Transmission Case Cover) |
90119-08373 |
US $2.51 |
||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.25 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.61 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.40 |
||
|
9151560645
|
9151560645
91515-60645 New Genuine Part |
91515-60645 |
US $0.87 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $1.08 |
||
