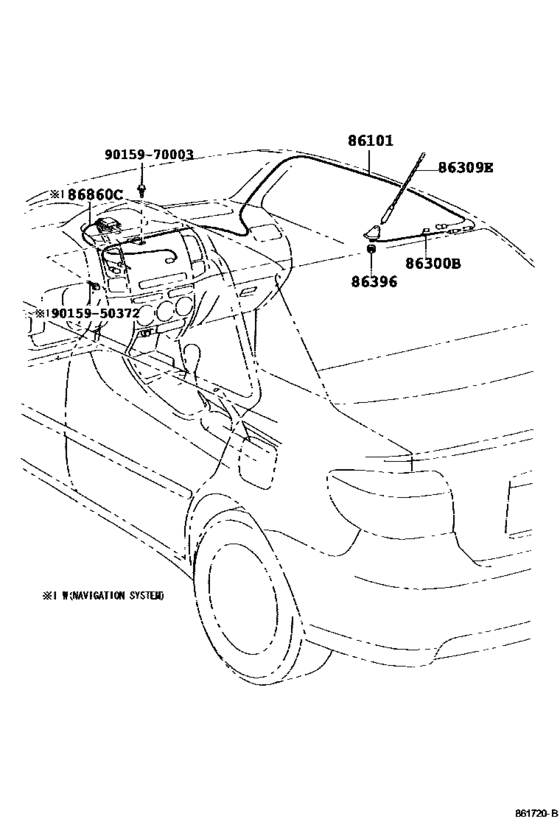

Antenna ([10.2002 - ] (0210- )) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86101
|
86101
86101-0D070
Cord Sub-Assy, Antenna
[10.2002 - 11.2005] AXP4# |
86101-0D070 |
— | ||
|
86101
|
86101
86101-0D080
Cord Sub-Assy, Antenna
[10.2002 - 11.2005] AXP42..GLI,GLXI W(MOON ROOF) |
86101-0D080 |
— | ||
|
86300B
|
86300B
86300-0D030
Antenna Assy, Amplifier, No.1
[10.2002 - 11.2005] AXP4# |
86300-0D030 |
— | ||
|
86309E
|
86309E
86309-0D030
Pole Sub-Assy, Roof Antenna
[10.2002 - 11.2005] AXP4# |
86309-0D030 |
— | ||
|
86396
|
86396
86396-0D010
Nut, Antenna
[10.2002 - 11.2005] AXP4# |
86396-0D010 |
— | ||
|
86860C
|
86860C
86860-52030
Antenna Assy, Navigation
[10.2002 - 11.2005] AXP42..GLI,GLXI |
86860-52030 |
— | ||
|
9015950372
|
9015950372
90159-50372 Screw |
90159-50372 |
US $1.08 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
