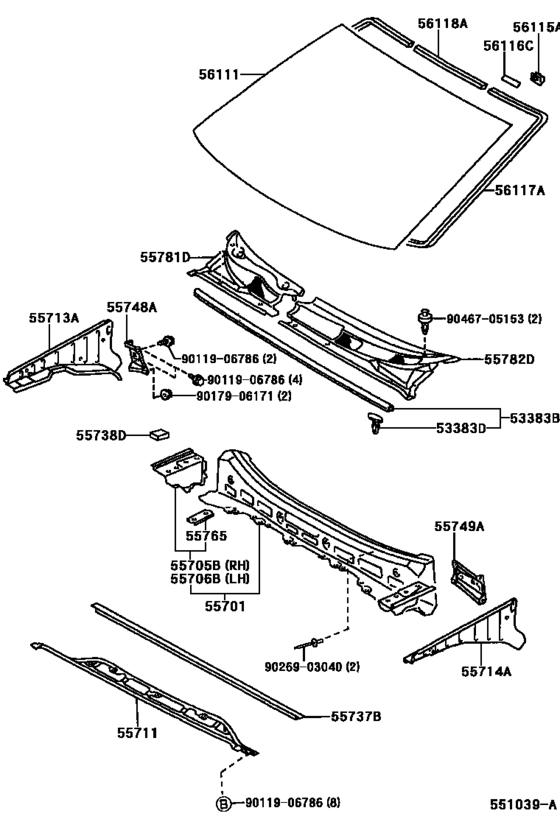

Cowl Panel & Windshield Glass ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-0D020
Seal, Hood To Cowl Top
[10.2002 - 11.2005] AXP4# |
53383-0D020 |
— | ||
|
53383D
|
53383D
90080-46318
Clip(For Hood To Cowl Top Seal)
[10.2002 - 11.2005] AXP4# |
90080-46318 |
— | ||
|
55701
|
55701
55700-0D030
Panel Sub-Assy, Cowl
[10.2002 - 11.2005] AXP4# |
55700-0D030 |
— | ||
|
55705B
|
55705B
55705-0D020
Panel Sub-Assy, Cowl Top Side, Rh
[10.2002 - 11.2005] AXP4# |
55705-0D020 |
— | ||
|
55706B
|
55706B
55706-0D020
Panel Sub-Assy, Cowl Top Side, Lh
[10.2002 - 11.2005] AXP4# |
55706-0D020 |
— | ||
|
55711
|
55711
55701-0D030
Panel, Cowl Top, Outer
[10.2002 - 11.2005] AXP4# |
55701-0D030 |
— | ||
|
55713A
|
55713A
55713-0D010
Panel, Cowl Top Side, Rh
[10.2002 - 11.2005] AXP4# |
55713-0D010 |
— | ||
|
55714A
|
55714A
55714-0D010
Panel, Cowl Top Side, Lh
[10.2002 - 11.2005] AXP4# |
55714-0D010 |
— | ||
|
55737B
|
55737B
55737-52010 Seal, Heater Air Duct Splash Shield, No.1[10.2002 - 04.2003] AXP4# |
55737-52010 |
US $8.67 |
||
|
55738D
|
55738D
55738-0D010
Seal, Heater Air Duct Splash Shield, No.2
[10.2002 - 11.2005] AXP4# |
55738-0D010 |
— | ||
|
55748A
|
55748A
55748-0D010
Brace, Cowl Top Inner To Pillar
[10.2002 - 11.2005] AXP4# |
55748-0D010 |
— | ||
|
55749A
|
55749A
55749-0D010
Brace, Cowl Top Inner To Pillar, Lh
[10.2002 - 11.2005] AXP4# |
55749-0D010 |
— | ||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[10.2002 - 11.2005] AXP4# |
55765-44010 |
US $5.56 |
||
|
55781D
|
55781D
55781-0D040
Louver, Cowl Top Ventilator, Rh
[10.2002 - 11.2005] AXP4# |
55781-0D040 |
— | ||
|
55781D
|
55781D
55781-0D050
Louver, Cowl Top Ventilator, Rh
[10.2002 - 11.2005] AXP4# COLD SPEC |
55781-0D050 |
— | ||
|
55782D
|
55782D
55782-0D040
Louver, Cowl Top Ventilator, Lh
[10.2002 - 11.2005] AXP4# |
55782-0D040 |
— | ||
|
55782D
|
55782D
55782-0D080
Louver, Cowl Top Ventilator, Lh
[10.2002 - 11.2005] AXP4# COLD SPEC |
55782-0D080 |
— | ||
|
56111
|
56111
56101-0D030
Glass, Windshield
[10.2002 - 02.2003] AXP4# *LAM,T=4.76,GREEN |
56101-0D030 |
— | ||
| replacement | |||||
|
56111
|
56111
56101-0D031
Glass, Windshield
[10.2002 - 02.2003] AXP4# *LAM,T=4.76,GREEN |
56101-0D031 |
— | ||
|
56111
|
56111
56101-0D031
Glass, Windshield
[02.2003 - 11.2005] AXP4# *LAM,T=4.76,GREEN |
56101-0D031 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[10.2002 - 11.2005] AXP4# |
56115-30100 |
from US $1.77 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[10.2002 - 11.2005] AXP4# |
56116-22050 |
from US $1.44 |
||
|
56117A
|
56117A
56117-0D010
Dam, Window Glass Adhesive
[10.2002 - 11.2005] AXP4# |
56117-0D010 |
— | ||
|
56118A
|
56118A
56118-0D010
Dam, Window Glass Adhesive, No.2
[10.2002 - 11.2005] AXP4# |
56118-0D010 |
— | ||
|
9011906786
|
9011906786
90119-06786 BOLT WWASHER |
90119-06786 |
US $1.61 |
||
|
9017906171
|
9017906171
90179-06171 Nut, Cap(For Cylinder Head Cover) |
90179-06171 |
from US $0.78 |
||
|
9026903040
|
9026903040
90269-03040 RIVET |
90269-03040 |
from US $0.53 |
||
|
9046705153
|
9046705153
90467-05153 CLIP |
90467-05153 |
from US $1.01 |
||
