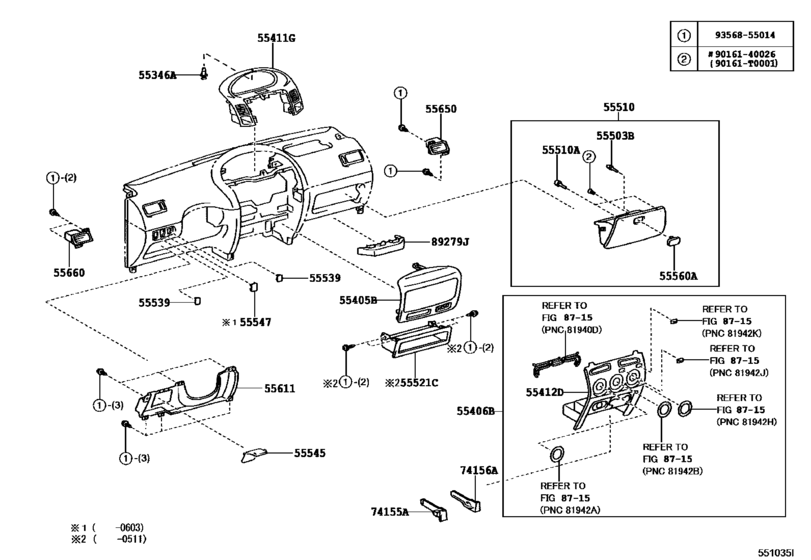

Instrument Panel & Glove Compartment ([10.2002 - 08.2006] (0210-0608)AXP4# ; (0608- )SCP4#) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55346A
|
55346A
55346-52010-B0
Clip, Instrument Panel, No.2
[11.2005 - 08.2006] AXP4# DK.GRAY |
55346-52010-B0 |
— | ||
|
55346A
|
55346A
55346-52010-C0 Clip, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [05.2003 - 11.2005] AXP4# BLACK,TRIM0# |
55346-52010-C0 |
US $2.04 |
||
|
55346A
|
55346A
90467-06046-C0 Clip(For Front Fender Mudguard)[10.2002 - 05.2003] AXP4# BLACK,TRIM0# |
90467-06046-C0 |
US $1.08 |
||
|
55405B
|
55405B
55405-0D070
Panel Sub-Assy, Instrument Cluster Finish, Center
[10.2002 - 11.2005] AXP42..GLI,GLXI WOOD GRAIN |
55405-0D070 |
— | ||
| replacement | |||||
|
55405B
|
55405B
55405-0D280
Panel Sub-Assy, Instrument Cluster Finish, Center
[10.2002 - 11.2005] AXP42..GLI,GLXI WOOD GRAIN |
55405-0D280 |
— | ||
|
55405B
|
55405B
55405-0D280
Panel Sub-Assy, Instrument Cluster Finish, Center
[11.2005 - 08.2006] AXP42..GLXI |
55405-0D280 |
— | ||
|
55406B
|
55406B
55406-0D200
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[11.2005 - 08.2006] AXP42..GLXI |
55406-0D200 |
— | ||
|
55411G
|
55411G
55411-0D030-C0
Panel, Instrument Cluster Finish, No.1
[10.2002 - 11.2005] AXP4# BLACK,TRIM0# |
55411-0D030-C0 |
— | ||
|
55412D
|
55412D
55413-0D050
Panel, Instrument Cluster Finish, Center
[10.2002 - 11.2005] AXP42..GLI,GLXI WOOD GRAIN |
55413-0D050 |
— | ||
| replacement | |||||
|
55412D
|
55412D
55413-0D140
Panel, Instrument Cluster Finish, Center
[10.2002 - 11.2005] AXP42..GLI,GLXI WOOD GRAIN |
55413-0D140 |
— | ||
|
55412D
|
55412D
55413-0D140
Panel, Instrument Cluster Finish, Center
[11.2005 - 08.2006] AXP42..GLXI |
55413-0D140 |
— | ||
|
55503B
|
55503B
90541-03015 Cushion, Instrument Panel Box[10.2002 - 11.2005] AXP4# |
90541-03015 |
from US $1.56 |
||
|
55510
|
55510
55550-0D030-A0
Door Assy, Glove Compartment
[10.2002 - 11.2005] AXP4# IVORY,TRIM0# |
55550-0D030-A0 |
— | ||
|
55510A
|
55510A
90541-05020 Cushion(For Glove Compartment)[10.2002 - 11.2005] AXP4# |
90541-05020 |
from US $1.38 |
||
|
55521C
|
55521C
55521-0D020
Cover, Stereo Opening
[10.2002 - 11.2005] AXP4#..DLX,DLXI,GLI,GLXI |
55521-0D020 |
— | ||
|
55539
|
55539
55539-32010-A0 Cover, Spare Switch Hole[10.2002 - 11.2005] AXP42..GLXI IVORY,TRIM0# |
55539-32010-A0 |
US $6.12 |
||
| replacement | |||||
|
55539
|
55539
55539-32010-C0 Cover, Cooler Switch Hole[10.2002 - 11.2005] AXP42..GLXI IVORY,TRIM0# |
55539-32010-C0 |
from US $3.04 |
||
|
55545
|
55545
55545-0D020-A0
Cover, Fuse Box Opening
[10.2002 - 11.2005] AXP4# IVORY,TRIM0# |
55545-0D020-A0 |
— | ||
|
55560A
|
55560A
55560-12120-A0
Lock Assy, Glove Compartment Door
[10.2002 - 11.2005] AXP4# IVORY,TRIM0# |
55560-12120-A0 |
— | ||
|
55611
|
55611
55611-0D030-A0
Tray, Instrument Panel Under
[10.2002 - 11.2005] AXP4# IVORY,TRIM0# |
55611-0D030-A0 |
— | ||
|
55650
|
55650
55650-0D020-E0
Register Assy, Instrument Panel, No.1
[10.2002 - 11.2005] AXP4# ORCHID BROWN,TRIM0# |
55650-0D020-E0 |
— | ||
| replacement | |||||
|
55650
|
55650
55650-0D020-E1
Register Assy, Instrument Panel, No.1
[10.2002 - 11.2005] AXP4# ORCHID BROWN,TRIM0# |
55650-0D020-E1 |
— | ||
|
55650
|
55650
55650-0D020-E1
Register Assy, Instrument Panel, No.1
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLXI ORCHID BROWN,TRIM0# |
55650-0D020-E1 |
— | ||
|
55660
|
55660
55660-0D010-E0
Register Assy, Instrument Panel, No.2
[10.2002 - 11.2005] AXP4# ORCHID BROWN,TRIM0# |
55660-0D010-E0 |
— | ||
| replacement | |||||
|
55660
|
55660
55660-0D010-E1
Register Assy, Instrument Panel, No.2
[10.2002 - 11.2005] AXP4# ORCHID BROWN,TRIM0# |
55660-0D010-E1 |
— | ||
|
55660
|
55660
55660-0D010-E1
Register Assy, Instrument Panel, No.2
[11.2005 - 08.2006] AXP4#..15GLI,GL,GLXI ORCHID BROWN,TRIM0# |
55660-0D010-E1 |
— | ||
|
74155A
|
74155A
74155-0D020
Rail, Front Ash Receptacle Guide, No.1
[10.2002 - 11.2005] AXP4# |
74155-0D020 |
— | ||
|
74156A
|
74156A
74156-0D020
Rail, Front Ash Receptacle Guide, No.2
[10.2002 - 11.2005] AXP4# |
74156-0D020 |
— | ||
|
89279J
|
89279J
89279-0D030
Cover
[10.2002 - 11.2005] AXP4# |
89279-0D030 |
— | ||
|
90161T0001
|
90161T0001
90161-T0001
New Genuine Part
|
90161-T0001 |
— | ||
|
9016140026
|
9016140026
90161-40026 New Genuine Part |
90161-40026 |
US $1.02 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
