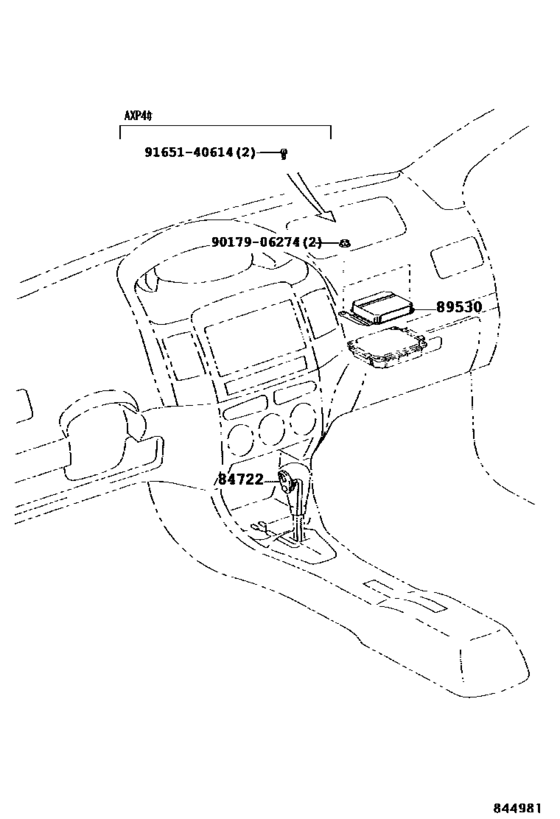

Overdrive & Electronic Controlled Transmission ([10.2002 - ] (0210- )AXP4#,SCP4#..ATM) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84722
|
84722
84722-52060-E0
Switch, Transmission Control
[10.2002 - 11.2005] AXP4#..ATM DK.BROWN,TRIM0# |
84722-52060-E0 |
— | ||
|
89530
|
89530
89530-52040
Computer Assy, Transmission Control
[10.2002 - 04.2004] AXP42..ATM |
89530-52040 |
— | ||
|
89530
|
89530
89530-52060
Computer Assy, Transmission Control
[04.2004 - 11.2005] AXP42..ATM |
89530-52060 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
