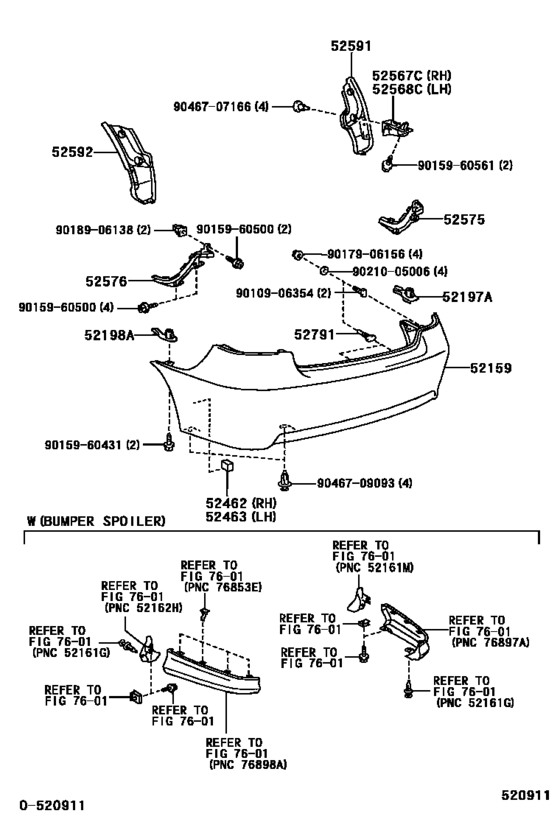

Rear Bumper & Bumper Stay ([10.2002 - ] (0210- )AXP4#,SCP4#) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52159
|
52159
52159-0D900
Cover, Rear Bumper
[10.2002 - 11.2003] AXP4#..DLX,DLXI,GL,GLI,GLXI |
52159-0D900 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-0D972
Cover, Rear Bumper
[10.2002 - 11.2003] AXP4#..DLX,DLXI,GL,GLI,GLXI |
52159-0D972 |
— | ||
|
52159
|
52159
52159-0D901
Cover, Rear Bumper
[10.2002 - 11.2003] AXP42..GLI,GLXI W(BUMPER SPOILER) |
52159-0D901 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-0D973
Cover, Rear Bumper
[10.2002 - 11.2003] AXP42..GLI,GLXI W(BUMPER SPOILER) |
52159-0D973 |
— | ||
|
52159
|
52159
52159-0D972
Cover, Rear Bumper
[11.2003 - 11.2005] AXP4# |
52159-0D972 |
— | ||
|
52159
|
52159
52159-0D973
Cover, Rear Bumper
[11.2003 - 11.2005] AXP42..GLI,GLXI W(BUMPER SPOILER) |
52159-0D973 |
— | ||
|
52197A
|
52197A
52197-0D010
Bracket, Rear Bumper Seal, Rh
[10.2002 - 11.2005] AXP4# |
52197-0D010 |
— | ||
|
52198A
|
52198A
52198-0D010
Bracket, Rear Bumper Seal, Lh
[10.2002 - 11.2005] AXP4# |
52198-0D010 |
— | ||
|
52462
|
52462
52462-0D010
Pad, Rear Bumper, Rh
[10.2002 - 11.2005] AXP4# |
52462-0D010 |
— | ||
|
52463
|
52463
52462-0D010
Pad, Rear Bumper, Rh
[10.2002 - 11.2005] AXP4# |
52462-0D010 |
— | ||
|
52567C
|
52567C
52567-0D010
Retainer, Rear Bumper Lower Side, Rh
[10.2002 - 11.2005] AXP4# |
52567-0D010 |
— | ||
|
52568C
|
52568C
52567-0D010
Retainer, Rear Bumper Lower Side, Rh
[10.2002 - 11.2005] AXP4# |
52567-0D010 |
— | ||
|
52575
|
52575
52575-0D020
Retainer, Rear Bumper Side, Rh
[10.2002 - 11.2005] AXP4# |
52575-0D020 |
— | ||
|
52576
|
52576
52576-0D020
Retainer, Rear Bumper Side, Lh
[10.2002 - 11.2005] AXP4# |
52576-0D020 |
— | ||
|
52591
|
52591
52591-0D010
Seal, Rear Bumper Side, Rh
[10.2002 - 11.2005] AXP4# |
52591-0D010 |
— | ||
|
52592
|
52592
52592-0D010
Seal, Rear Bumper Side, Lh
[10.2002 - 11.2005] AXP4# |
52592-0D010 |
— | ||
|
52791
|
52791
52791-12040 Bolt, Bumper Moulding Set, No.1[11.2003 - 11.2005] AXP4# |
52791-12040 |
from US $1.27 |
||
|
52791
|
52791
52791-32010 Bolt, Bumper Moulding Set, No.1[10.2002 - 11.2003] AXP4#..DLX,DLXI,GL,GLI,GLXI |
52791-32010 |
US $2.87 |
||
|
9010906354
|
9010906354
90109-06354 Bolt, Bumper Moulding Set, No.1 |
90109-06354 |
from US $0.78 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.74 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $0.70 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.68 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9018906138
|
9018906138
90189-06138 GROMMET SCREW |
90189-06138 |
from US $0.84 |
||
|
9021005006
|
9021005006
90210-05006 WASHER SEAL |
90210-05006 |
from US $0.78 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.82 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $1.72 |
||
