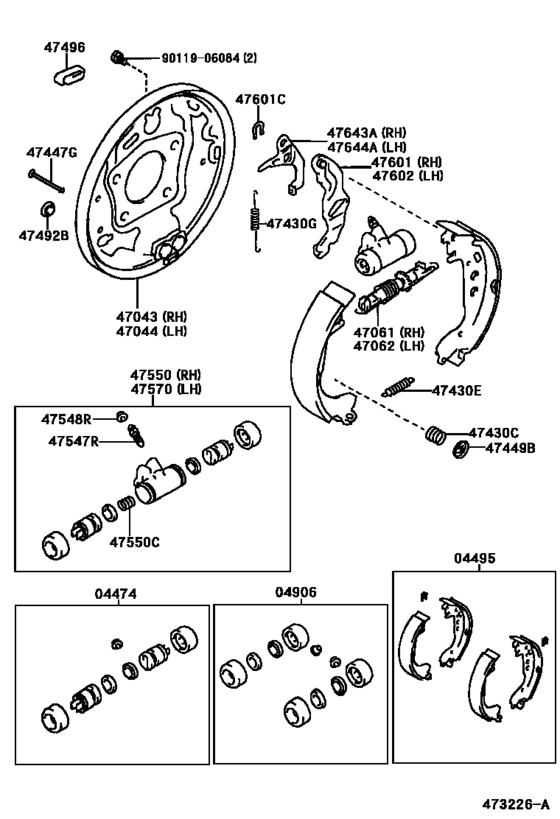

Rear Drum Brake Wheel Cylinder & Backing Plate ([10.2002 - 11.2005] (0210-0511)AXP4#) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-02020
Cylinder Kit, Rear Wheel
[10.2002 - 11.2005] AXP4# |
04474-02020 |
— | ||
|
04495
|
04495
04495-02080
Shoe Kit, Rear Brake
[10.2002 - 11.2005] AXP4# MARK NSA LN521 |
04495-02080 |
— | ||
|
04906
|
04906
04906-0A010
Cup Kit, Rear Wheel Cylinder
[10.2002 - 11.2005] AXP4# |
04906-0A010 |
— | ||
|
47043
|
47043
47043-0D020
Plate Sub-Assy, Brake Backing, Rear Rh
[10.2002 - 11.2005] AXP4# |
47043-0D020 |
— | ||
|
47044
|
47044
47044-0D020
Plate Sub-Assy, Brake Backing, Rear Lh
[10.2002 - 11.2005] AXP4# |
47044-0D020 |
— | ||
|
47061
|
47061
47061-02040
Strut Set, Parking Brake Shoe, Rh
[10.2002 - 11.2005] AXP4# |
47061-02040 |
— | ||
|
47062
|
47062
47062-02040
Strut Set, Parking Brake Shoe, Lh
[10.2002 - 11.2005] AXP4# |
47062-02040 |
— | ||
|
47430C
|
47430C
90016-AY001 Spring(For Rear Brake Shoe Hold Down)[10.2002 - 11.2005] AXP4# |
90016-AY001 |
US $2.18 |
||
|
47430E
|
47430E
90080-50293
Spring, Tension(For Rear Brake Shoe Return)
[10.2002 - 11.2005] AXP4# |
90080-50293 |
— | ||
|
47430G
|
47430G
90080-50360
Spring, Tension(For Rear Brake Automatic Adjust Lever)
[10.2002 - 11.2005] AXP4# |
90080-50360 |
— | ||
|
47447G
|
47447G
47447-0D020 Pin, Shoe Hold Down Spring(For Rear Brake)SHOE HOLD DOWN SPRING(FOR REAR BRAKE) [10.2002 - 11.2005] AXP4# |
47447-0D020 |
US $3.49 |
||
|
47449B
|
47449B
47449-0A010
Cup, Shoe Hold Down Spring(For Rear Brake)
[10.2002 - 11.2005] AXP4# |
47449-0A010 |
— | ||
|
47492B
|
47492B
47492-0A010
Plug, Shoe Inspection(For Rear Brake)
[10.2002 - 11.2005] AXP4# |
47492-0A010 |
— | ||
|
47496
|
47496
47491-04010
Plug, Hole(For Rear Brake)
[10.2002 - 11.2005] AXP4# |
47491-04010 |
— | ||
|
47547R
|
47547R
47547-20010 Plug, Bleeder(For Release Cylinder)[10.2002 - 11.2005] AXP4# |
47547-20010 |
from US $3.58 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[10.2002 - 11.2005] AXP4# |
31478-30010 |
from US $1.52 |
||
|
47550
|
47550
47550-02120
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[10.2002 - 11.2005] AXP4# |
47550-02120 |
— | ||
|
47550C
|
47550C
90027-60001
Spring, Compression(For Rear Wheel Brake Cylinder)
[10.2002 - 11.2005] AXP4# |
90027-60001 |
— | ||
|
47570
|
47570
47570-02090
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
[10.2002 - 11.2005] AXP4# |
47570-02090 |
— | ||
|
47601
|
47601
47601-02050
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
[10.2002 - 11.2005] AXP4# |
47601-02050 |
— | ||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[10.2002 - 11.2005] AXP4# T=1.2 |
90213-06013 |
from US $0.72 |
||
|
47602
|
47602
47602-02050
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
[10.2002 - 11.2005] AXP4# |
47602-02050 |
— | ||
|
47643A
|
47643A
47643-47010 Lever, Rear Brake Automatic Adjust, Rh[10.2002 - 11.2005] AXP4# |
47643-47010 |
from US $2.18 |
||
|
47644A
|
47644A
47644-47010 Lever, Rear Brake Automatic Adjust, Lh[10.2002 - 11.2005] AXP4# |
47644-47010 |
from US $2.22 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
