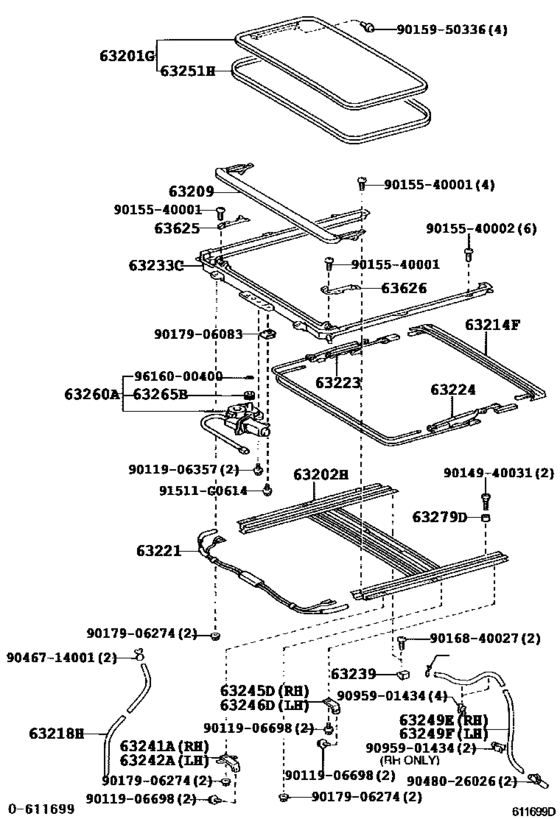

Roof Panel & Back Window Glass ([10.2002 - 11.2005] MOON ROOF (0210-0511)GLI,GLXI ; (0303- )15E,15G..TAIW ; (0511- )GLS,GLXI) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201G
|
63201G
63201-12260 Glass Sub-Assy, Sliding Roof[10.2002 - 01.2003] AXP42..GLI,GLXI *TT,T=4.0,GRAY |
63201-12260 |
US $933.30 |
||
| replacement | |||||
|
63201G
|
63201G
63201-12261 Glass Sub-Assy, Sliding Roof[10.2002 - 01.2003] AXP42..GLI,GLXI *TT,T=4.0,GRAY |
63201-12261 |
US $930.38 |
||
|
63201G
|
63201G
63201-12261 Glass Sub-Assy, Sliding Roof[01.2003 - 04.2004] AXP42..GLI,GLXI *TT,T=4.0,GRAY |
63201-12261 |
US $930.38 |
||
|
63201G
|
63201G
63201-12262 Glass Sub-Assy, Sliding Roof[04.2004 - 11.2005] AXP42..GLI,GLXI *TT,T=4.0,GRAY |
63201-12262 |
US $776.05 |
||
|
63202H
|
63202H
63202-0D020
Rail Sub-Assy, Slide Roof
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63202-0D020 |
— | ||
|
63209
|
63209
63209-52060
Panel Sub-Assy, Roof Wind Deflector
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63209-52060 |
— | ||
|
63214F
|
63214F
63214-02030
Channel, Roof Drip, Rear
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63214-02030 |
— | ||
|
63218H
|
63218H
63249-52090 Hose, Sliding Roof DrainSLIDING ROOF DRAIN [10.2002 - 11.2005] AXP42..GLI,GLXI |
63249-52090 |
US $18.64 |
||
|
63221
|
63221
63221-52020
Casing, Sliding Roof Cable Guide
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63221-52020 |
— | ||
|
63223
|
63223
63223-02030
Cable, Sliding Roof Drive, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63223-02030 |
— | ||
| replacement | |||||
|
63223
|
63223
63223-02031
Cable, Sliding Roof Drive, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63223-02031 |
— | ||
|
63224
|
63224
63224-02030
Cable, Sliding Roof Drive, Lh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63224-02030 |
— | ||
| replacement | |||||
|
63224
|
63224
63224-02031
Cable, Sliding Roof Drive, Lh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63224-02031 |
— | ||
|
63233C
|
63233C
63233-02030
Panel, Sliding Roof Housing
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63233-02030 |
— | ||
|
63239
|
63239
63239-12030 Stopper, Sliding Roof Panel[10.2002 - 11.2005] AXP42..GLI,GLXI |
63239-12030 |
US $1.75 |
||
|
63241A
|
63241A
63241-0D020
Bracket, Sliding Roof Housing Front Mounting, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63241-0D020 |
— | ||
|
63242A
|
63242A
63241-0D020
Bracket, Sliding Roof Housing Front Mounting, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63241-0D020 |
— | ||
|
63245D
|
63245D
63243-0D020
Bracket, Sliding Roof Housing Rear Mounting, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63243-0D020 |
— | ||
|
63246D
|
63246D
63243-0D020
Bracket, Sliding Roof Housing Rear Mounting, Rh
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63243-0D020 |
— | ||
|
63249E
|
63249E
63247-52020 Hose, Sliding Roof DrainSLIDING ROOF DRAIN [10.2002 - 11.2005] AXP42..GLI,GLXI |
63247-52020 |
US $18.35 |
||
|
63249F
|
63249F
63248-52010 Hose, Sliding Roof DrainSLIDING ROOF DRAIN [10.2002 - 11.2005] AXP42..GLI,GLXI |
63248-52010 |
US $18.35 |
||
|
63251H
|
63251H
63251-12160 Weatherstrip, Sliding Roof Panel Or Removable Roof[10.2002 - 04.2004] AXP42..GLI,GLXI |
63251-12160 |
US $82.12 |
||
|
63251H
|
63251H
63251-12161 Weatherstrip, Sliding Roof[04.2004 - 11.2005] AXP42..GLI,GLXI |
63251-12161 |
US $101.34 |
||
|
63260A
|
63260A
63260-52040
Gear Sub-Assy, Sliding Roof Drive
[10.2002 - 11.2005] AXP42..GLI,GLXI |
63260-52040 |
— | ||
|
63265B
|
63265B
63265-12040 Gear, Sliding Roof Drive[10.2002 - 11.2005] AXP42..GLI,GLXI |
63265-12040 |
US $20.97 |
||
|
63279D
|
63279D
63279-12030 Stopper, Sliding Roof Guide Rail[10.2002 - 11.2005] AXP42..GLI,GLXI |
63279-12030 |
US $4.54 |
||
|
63625
|
63625
63625-12050 Block, Sliding Roof Guide, Rh[10.2002 - 11.2005] AXP42..GLI,GLXI |
63625-12050 |
US $8.59 |
||
|
63626
|
63626
63626-12050 Block, Sliding Roof Guide, Lh[10.2002 - 11.2005] AXP42..GLI,GLXI |
63626-12050 |
US $8.59 |
||
|
91511G0614
|
91511G0614
91511-G0614 BOLTFLANGE |
91511-G0614 |
US $1.97 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011906698
|
9011906698
90119-06698
New Genuine Part
|
90119-06698 |
— | ||
|
9014940031
|
9014940031
90149-40031 BRACKET |
90149-40031 |
US $0.96 |
||
|
9015540001
|
9015540001
90155-40001 New Genuine Part |
90155-40001 |
US $1.16 |
||
|
9015540002
|
9015540002
90155-40002 New Genuine Part |
90155-40002 |
US $1.16 |
||
|
9015950336
|
9015950336
90159-50336 SCREW WWASHER |
90159-50336 |
from US $0.66 |
||
|
9016840027
|
9016840027
90168-40027 New Genuine Part |
90168-40027 |
from US $1.43 |
||
|
9017906083
|
9017906083
90179-06083 New Genuine Part |
90179-06083 |
US $4.37 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.72 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9048026026
|
9048026026
90480-26026 Grommet, Sliding Roof Drain |
90480-26026 |
US $1.40 |
||
|
9095901434
|
9095901434
90959-01434 Clamp, Sliding Roof Or Removable Roof Drain Hose |
90959-01434 |
US $2.18 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
