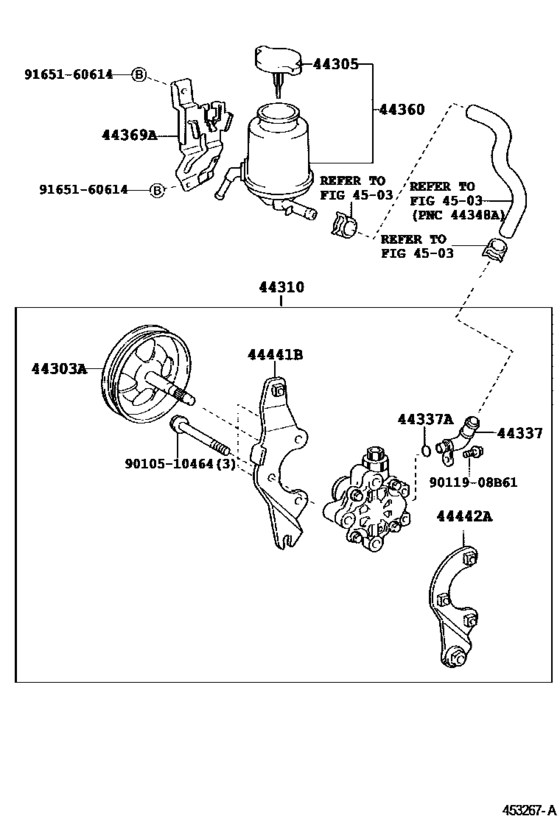

Vane Pump & Reservoir (Power Steering) ([10.2002 - 08.2006] (0210-0608)15GLI,DLXI,GL,GLI,GLS,GLXI) Diagram Toyota VIOS
- Year
- 2002 - 2006
- Sales region
- General
- Frame
- AXP42
- grade
- GLXI
- ENGINE
- 5AFE
- TRANSMISSION
- ATM
- DESTINATION
- CHI
- Model
- SOLUNA VIOS
- From
- 10.2002
- To
- 08.2006
- No.of Doors
- 4DS
- Vehicle Model
- SOLUNA VIOS
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44303A
|
44303A
44303-52030 Shaft Sub-Assy, W/pulley[10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44303-52030 |
US $99.01 |
||
|
44305
|
44305
44305-28030
Cap Sub-Assy, Vane Pump Oil Reservoir
[10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44305-28030 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44305-28061 |
from US $15.54 |
||
|
44310
|
44310
44310-52170 Pump Assy, VaneVANE [10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44310-52170 |
from US $840.53 |
||
|
44337
|
44337
44337-12130 Union, Power Steering Suction Port[10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44337-12130 |
US $18.64 |
||
|
44337A
|
44337A
90301-11020 Ring, O, No.1(For Vane Pump Housing)[10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
90301-11020 |
from US $2.18 |
||
|
44360
|
44360
44360-52010 Reservoir Assy, Vane Pump OilVANE PUMP OIL [10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44360-52010 |
US $113.57 |
||
|
44369A
|
44369A
44390-52010 Bracket, Oil Reservoir, No.1OIL RESERVOIR, NO.1 [10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44390-52010 |
US $23.15 |
||
|
44441B
|
44441B
44441-52020 Bracket, Pump, FrontPUMP, FRONT [10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44441-52020 |
US $18.20 |
||
|
44442A
|
44442A
44442-52030 Bracket, Vane Pump, RearVANE PUMP, REAR [10.2002 - 11.2005] AXP4#..DLXI,GL,GLI,GLXI |
44442-52030 |
US $14.85 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
|
9010510464
|
9010510464
90105-10464 New Genuine Part |
90105-10464 |
US $3.76 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
